Name: Shielded 22GA 2 Conductor White Wire M27500-22TG2T14
SKU: 11-05650
Price: 3.7 CAD
Availability: InStock
Rating: 4.89 (44 reviews)

1-877-795-2278 | info@aircraftspruce.ca
Aircraft Spruce Canada
Brantford, ON Canada
Corona, CA | Peachtree City, GA
Chicago, IL | Wasilla, AK

THE AVIATION SUPERSTORE FOR ALL YOUR AIRCRAFT & PILOT NEEDS | 877-795-2278

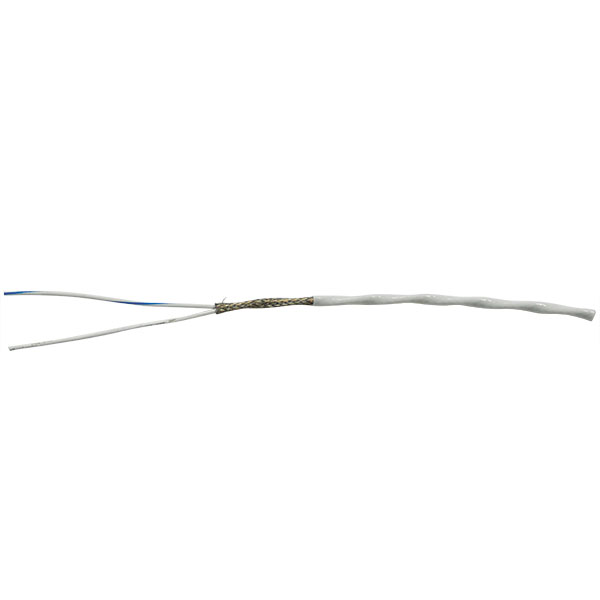

Photo may represent series and not specific product

Shielded 22GA 2 Conductor White Wire M27500-22TG2T14

44 Reviews 14 Answered Questions

$3.70/Foot

Add to Wishlist View More In This Series →

Part# 11-05650
MFR Model# J3571

JUMP TO

JUMP TO
Overview
Specifications
Documents
Reference Chart
Reviews
Q&A
View in Catalog

Mil Spec	Conductor	Wire Gauge	Part Number
M27500-22TG2T14	2	22	11-05650

Overview

This shielded & jacketed aircraft wire conforms to MIL-C-27500 & replaces MIL-C-7078/3. It incorporates MIL-W-22759/18 basic wire and features a Tefzel insulation, a shield of tin- plated copper braid and a jacket of Tefzel. It is temperature rated to 150°C & voltage rated at 600 volts. Top quality wire to military specs.

*8 Gauge shielded wire is used in converting generator systems to alternators. Conforms to MIL-C-27500

Specifications

Construction; Stranded tin plated copper conductor extruded etfe tin plated copper braid 85% coverage white extruded etfe jacket.
Color: White

Documents

ACS Wire Guide for MIL-C-27500

Reference Chart

Frequently Purchased With
Customers Also Viewed
Related Items

Reviews

Submit a Review

good

Safir D

Verified Purchase

Shielded 22GA 2 Conductor White Wire M27500-22TG2T14

October 15, 2024

Great Service - prompt service and shipping

Richard P

Verified Purchase

Shielded 22GA 2 Conductor White Wire M27500-22TG2T14

October 5, 2024

Quality product

William J

Verified Purchase

Shielded 22GA 2 Conductor White Wire M27500-22TG2T14

May 30, 2024

As always, Aircraft Spruce made the order easy and delivered in no time.

Donald P

Verified Purchase

Shielded 22GA 2 Conductor White Wire M27500-22TG2T14

September 5, 2023

Steiner G

Verified Purchase

Shielded 22GA 2 Conductor White Wire M27500-22TG2T14

August 15, 2023

Okay.

Gary D

Verified Purchase

Shielded 22GA 2 Conductor White Wire M27500-22TG2T14

April 30, 2023

Magaero L

Verified Purchase

Shielded 22GA 2 Conductor White Wire M27500-22TG2T14

April 27, 2023

Magaero L

Verified Purchase

Shielded 22GA 2 Conductor White Wire M27500-22TG2T14

April 10, 2023

Great

Steven B

Verified Purchase

Shielded 22GA 2 Conductor White Wire M27500-22TG2T14

December 2, 2022

This wire appears to be very good quality. The conductors are shielded well and twisted.

Larry C

Verified Purchase

Shielded 22GA 2 Conductor White Wire M27500-22TG2T14

May 18, 2022

A+

Ron I

Verified Purchase

Shielded 22GA 2 Conductor White Wire M27500-22TG2T14

April 14, 2022

Great shielded Mil spec wire. High quality materials and workmanship.

Lewis M

Verified Purchase

Shielded 22GA 2 Conductor White Wire M27500-22TG2T14

March 23, 2022

👍

Didier P

Verified Purchase

Shielded 22GA 2 Conductor White Wire M27500-22TG2T14

February 8, 2022

James R

Verified Purchase

Shielded 22GA 2 Conductor White Wire M27500-22TG2T14

January 28, 2022

Great for avionics install

Wade A

Verified Purchase

Shielded 22GA 2 Conductor White Wire M27500-22TG2T14

June 2, 2021

Product was correct came in on time worked out perfect for the job

Dale J

May 18, 2021

Excellent, quick service. They sent me a very short amount of shielded circuit wire. It had been difficult to find someone on the Internet that would send me such a small amount.

Nate C

May 3, 2021

I got it and it works

Alan C

April 14, 2021

Good

Julio

April 2, 2021

good product/ great service. A+ thank you very much

James G

March 9, 2021

Excellent service

Ray H

February 15, 2021

Excellent online experience. this is the PERFECT wire for my application. This is a very high quality shielded wire, Very small overall diameter even in the larger AWG sizes... The 22 AWG I am using is perfect for my application.

David W

December 11, 2020

Outstanding condition, great packaging, meets spec and shipped fast

Gerald G

September 18, 2020

Got just what I ordered delivery was fast . Have always gotten good service from our craft Brewers. Have been purchasing from them for many years for experimental and certified aircraft.They are always helpful when you have questions.

Allan S

September 8, 2020

quick service and shipping

Tasa A

August 24, 2020

received very fast, product as expected

Tasa A

August 19, 2020

Super quality, Exactly as ordered.

John A

July 13, 2020

Received in good condition as advertised. Happy with the product.

Michael

May 4, 2020

Product was just as describe. Aircraft Spruce is one of the few places where you can find a myriad selection of shielded wire in different gauges cut to length. Would definitely purchase from them again in the future.

James

March 26, 2020

Its Mil spec ... excellent quality!

Jim S

March 23, 2020

Readily available stock, quick response and shipping. An excellent experience.

Matthew C

January 27, 2020

Good product, fast shipping. Used it to make a P-lead for my Fairbanks Morse magneto on my cut case 1/2vw engine.

Skip

December 23, 2019

Good quality product. I used on the intercom system as recommended per the manufacturer. Easy to strip, but you have to use the correct gauge stripper.

Marcos

October 5, 2019

EASY ORDERING AND PRODUCT SHIPPED RIGHT AWAY.

Robin M

August 29, 2019

Works great! Conducts electrons as advertised.

Dave A

July 1, 2019

This appears to be MIL spec shielded wire. Probably wont go to jail for installing this.

Bcs A

May 22, 2019

As advertised. Could find no fault with this wire.

Ron R

June 30, 2018

Perfect, excellent delivery time,

Frank K

June 5, 2018

Perfect product for limiting RFI.

Tom W

May 25, 2018

Once again Aircraft Spruce delivered a great product in a timely manner.

John H

June 29, 2017

Slim cable, not overly bulky. Appears to be high quality. Im intending on using it as a signal carrier in Guitar tube amps. I feel it is superior to foil jacketed coaxial cable and much more flexible as well. Good prices, fast delivery and preparation by the sender. 5 Stars!

Stu

April 20, 2017

What it says on the box and delivered quickly (would have been 5 starts but, inevitable it seems nowadays, the delivery charges are still high) Thanks

Crispin B

February 17, 2019

wire didnt come on spool.

Spectrum H

Verified Purchase

Shielded 22GA 2 Conductor White Wire M27500-22TG2T14

December 28, 2023

It seems to meet the minimum specification and Im happy with the noise-free result of the install. But compared to other wires Ive used, the shielding has fewer strands at a thicker gauge and just seems cheaper quality. I added intercom to the rear seats and wired up new avionics with this (GMA 345, GTR 225, G5 HSI - with the exception of the CAN Bus wiring, for which I used purpose-made CAN Bus wiring I also bought from Spruce).

Nathan M

April 13, 2020

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What color is the Shielded MIL-C-27500 wire listed on this page?

All the wire listed on this page is white.

Q: What tool do you recommend for stripping just the jacket of your 11-14418 shielded wire?

The only approved tool is part number 12-02031. Otherwise a razor blade is used.

Q: What is the diameter of the shielded #6 wire?

It is 5/16" diameter.

Q: What is the diameter of 20 awg shielded wire?

The diameter of shielded 20ga white wire M27500-20TG1T14 part # 11-14420 is 2mm.

Q: What is the outside diameter of MIL-C-27500, 16 gauge wire?

The nominal outside diameter of 16 ga wire under m27500-16tg1t14 is .092 inches.

Q: Is the 24 gauge 2 conductor a twisted pair wire?

M27500-24TG1T14 is a single conductor. Please look at Part# 11-04477.

Q: Is the M27500-18TG3T14 wire have two internal wires with a shield for three conductor or three internal wires with an external shield (4 conductors total)?

This has an external shield and has 3 individual wires inside.

Q: What is the outer diameter of the M27500-22TG6T14 cable?

.180 inch OD.

Q: What are the applications for shielded wire vs un-shielded wire?

The installation manual for the unit in question must always be consulted for the recommended wire that must be used.

Q: Is this tefzel wire?

No this is Extruded Ethylene Tetrafluoroethylene
