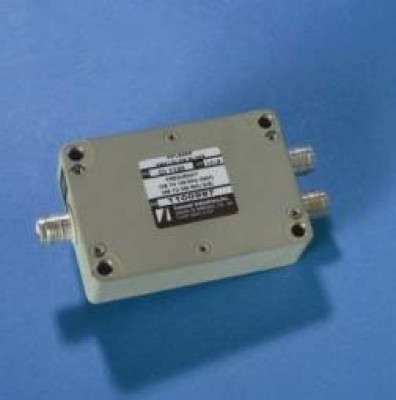

Comant Diplexer Single VOR - CI-1120

$1643.00/Each
Quantity
Add to Wishlist
Part# 11-06853
MFR Model# CI-1120

Overview

Frequency • 108-120 MHz & 325-340 MHz


Provides operation between a single VOR receiver and a single glide slope receiver from the same VOR/glide slope antenna. Offers polarized VOR and GS output connectors.

Specifications

MODEL CI 1120 DIPLEXER/ SINGLE VOR/ SINGLE GS
Electrical
Frequency
108-120 and 325-340 MHz
VSWR

1.5:1 Maximum

Insertion Loss
0.5 dB Maximum
Isolation
40dB
Impedance RF
50 Ohms
Mechanial
Weight
0.44 lb. Maximum
Height
0.812 in. Maximum
Material
Die Cast Iron
Finish
Flat Grey Epoxy Paint
Connector
TNC (Female)
Environmental
Internal Mount
Federal Specifications
MIL Standards
MIL-E-5400
MIL-STD-810B (Vibration)
MIL-B-5087
MIL-C-39012 (Connector)
