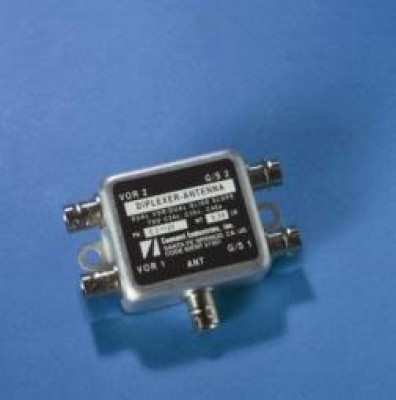

Comant Dual VOR/ Dual GS Diplexer CI-1125

$392.00/Each
Quantity
Add to Wishlist
Part# 11-03777
MFR Model# CI-1125

Overview

Frequency 108-118 MHz & 329-335 MHz

Dual VOR/Dual GS diplexer features diplexer circuitry in a small die-stamped housing for high reliability. Provides operation between two VOR receivers and two glide slope receivers from the same VOR/GS antenna

Specifications

MODEL CI 1125 DIPLEXER DUAL VOR/ DUAL GS
Electrical
Frequency
108-118 and 329-335 MHz
VSWR
1.5:1 Maximum
Insertion Loss
0.6 dB Maximum
Isolation

20 dB Minimum between VOR & GS
18 dB Minimum between VOR Ports
18 dB Minimum between GS Ports

Impedance RF
50 Ohms
Mechanical
Weight
0.25 lb. Maximum
Height
0.75 in. Maximum
Finish
Aluminum
Material
Aluminum
Connector
BNC ((Female)
Environmental
Internal Mount
Federal Specifications
FAA TSO
C34c, C36c, C40a
  • Frequently Purchased With
  • Customers Also Viewed
  • Related Items

Reviews

Was not getting movement on VOR or localizer needles (both indicators). New diplexer fixed the problem. Spruce had the best price.

Edward R Verified Purchase

Comant CI-1125 Dual VOR Dual GS Diplexer

May 26, 2021

Very nice

Diane W
December 16, 2019

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Do you happen to know or have the dimensions of this CI-1125 model?

THICKNESS: 3/4 INCH | WIDTH: 2 INCH | HEIGHT: 1-3/4
BNC TO BNC (2 ON EACH SIDE) 2-15/16
BNC TO BODY (BOTTOM) TO BODY: 2-3/16
