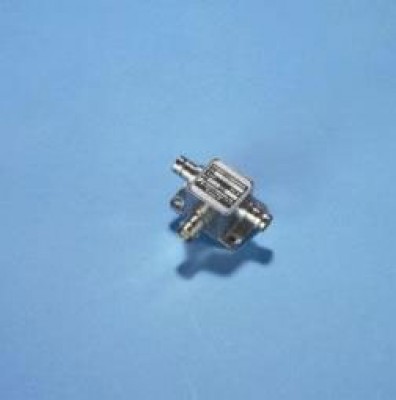

Comant Splitter (CI-5120) Dual VOR/ Loc/ Gs

$506.00/Each
Quantity
Add to Wishlist
Part# 11-06826
MFR Model# CI-5120

Overview

Frequency • 108-118 MHz & 329-335 MHz
Designed for use with Garmin GTN 650/750 series. The CI 5120 splits single coax antenna input into equally proportioned VOR/ LOC/GS outputs, allowing you to run two single input receivers off of one antenna.

Specifications

  • Frequency: 108-118 MHz & 329-335 MHz
  • VSWR: 1.5:1 Maximum
  • Isolation: 20dB Minimum
  • Insertion Loss: 1.0 dB Maximum
  • Impedance: 50 Ohms
  • Aplitude Balance: +/- .50 dB
  • Phase: +/- 180 Degrees +/- 5 degrees
  • Power Split: 3 dB
  • Weight: 0.1 lbs.
  • Height: 0.97 in.
  • Material: Aluminum
  • Finish: Aluminum
  • Connector BNC: (Female)
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Works great when other diplexers are attenuating your GS signal

William T Verified Purchase

Comant CI-5120 Antenna Coupler

November 3, 2021

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Are these compatible with GNC 255a radio? and RG-400 cable?

Yes, if you have two GNC 255A's this can split the NAV data for both units.

Q: If I have a GNC255a and GTN650, will this split the signal so I can use data for either?

The CI 5120 splits single coax antenna input into equally proportioned VOR/ LOC/GS outputs, allowing you to run two single input receivers off of one antenna.
