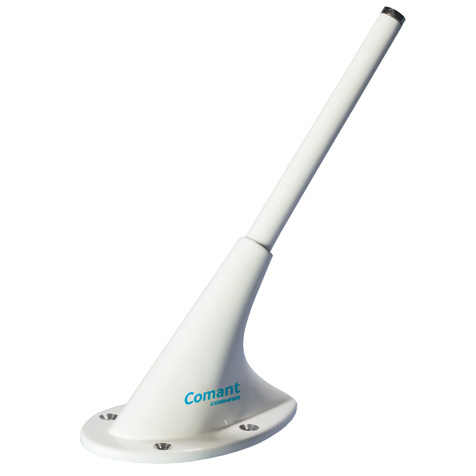

Frequency • 450-470 MHz A rugged monopole antenna particularly wellsuited to the harsh environments experienced on the underside of an aircraft. Features standard4-hole mounting, diecast metal base and radiator encased in glass laminate housing. Note: Comant Antennas no longer come with a gasket or template. Must order PN 09-05579 separately. |
MODEL CI 177-20 UHF ANTENNA | |
Electrical | |
Frequency | 450-470 MHz |
VSWR | 2.0:1 Maximum |
Polarization | Vertical |
Radiation Pattern | Omni Directional |
Impedance RF | 50 Ohms |
Power RF | 30 Watts |
Mechanical | |
Weight | 0.7 lb. Maximum |
Height | 7.00 in. Maximum |
Material | Diecast Metal base |
Finish | Glossy White Polyurethane Paint |
Connector | BNC (Female) |
Environmental | |
Temperature | -55ºC to +55ºC |
Altitude | 30,000ft. |
Air Speed | 450 Knots TAS at 25,000 ft. |
Federal Specifications | |
FAA TSO | N/A |
Enviromental RTCA | DO-160D |
