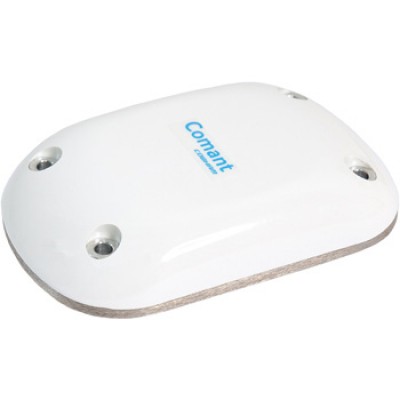

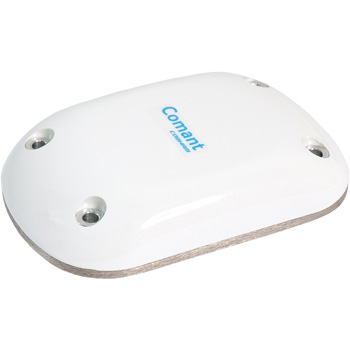

Comdat GPS CI-401-220
MFR Model# CI-401-220
Overview
|
Comant’s ComDat® stand-alone GPS antenna with TNC connector. Matches the standard ARINC footprint found on many twins and business jets. Meets RTCA DO 160-D operating standards including direct effects lightning. Designed to operate with 26.5 dB panel mount GPS receivers. Certified FAA TSO-C144 for GPS and GPS WAAS Class Gamma 1 equipment. Not compliant for GPS WAAS Class Gamma 2 and 3 applications. Note: Comant Antennas no longer comes with a gasket or template. Must order PN 09-05579 separately. Not compatible with most portable GPS receiver systems. Applications Frequencies Covered |
Specifications
MODEL CI 401-220 | |
GPS Preamplifier Characteristics | |
Frequency | 1575.42±3MHz |
VSWR | 1.5:1 Max |
Polarization | RHCP |
Radiation Gain Pattern | Hemispherical |
Output Impedance | 50 Ohms |
Gain @ 1575.42 MHz | 26.5-31.5 dB |
DC Voltage | 4 to 24 Volts |
DC Current Min/Max | 25mA / 40 mA |
Noise Figure | 3.8 dB |
Selectivity | -40 dB Min. @ Satcom 1626.5 MHz |
Federal Specifications | |
Weight | 6.2 oz. Maximum |
RTCA Env. / TSO | DO 160-D / C144 |
Connector | TNC (F) GPS/ SMA (F) SAT |
