DM C70-1/A Antenna

$2104.00/Each
Quantity
Add to Wishlist
Part# 11-02768
MFR Model# DM C70-1/A

Overview

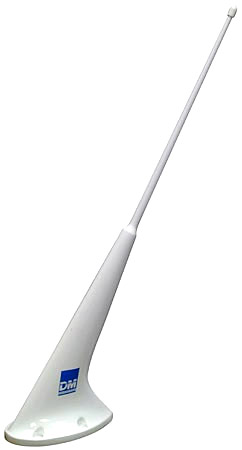

118-137MHz TRIMLINE ROD
(DM C70-1/A)

Frequency Range 118-137 MHz
The DM C70 Series VHF Communication Antennas are designed for top or bottom installation on high-performance, single, twin and turbo engine fixed and rotary wing aircraft. These uniquely designed antennas offer mechanical strength and high-electrical efficiency to provide maximum reliability and full 360/720 channel transceiver operation. The lightweight profile is unobtrusive, resists icing and offers low drag. Electrical Frequenc y Range 118 - 137 MHz VSWR 2.0:1 Polarization Vertical Radiation Pattern Omnidirectional Impedance 50 Ohms Power 50 W TSO C37d and C38d Mechanical Weight 12 oz (0.34 kg) Height 15.00 in. Max Finish White Polyurethane Connectors BNC Female Speed Rating 400 MPH Environmental D0160c ENV CAT F2-ABCXWFDXSXXXXXXXXXX
  • Accessories
  • Frequently Purchased With
  • Customers Also Viewed
  • Related Items

Reviews

Top quality , easy install

Charles
April 16, 2020

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Does the DM C70-1/A come with a gasket or is that ordered separately?

No, gaskets are no longer included with antennas due to short shelf life. We recommend fuselage sealant.
