Dynon Fasttrack Essentials for Skyview HDX

Select Version:
IFR VFR
Quantity
Add to Wishlist

Overview

Note: Compatible with SkyView HDX only. Not compatible with SkyView Classic, Touch, or SE.

Whether it be a new installation or a retrofit, FastTrack Essentials makes your SkyView system installation easier and faster than ever before.

FastTrack Essentials provides you with the essential modules every system requires, mounted to a module mounting tray and networked together with SkyView network cables and a SkyView Network Hub.

Simply remove the FastTrack Essentials product assembly from its box, fasten the assembly to your instrument panel with 4 rivets, and fasten your 10inch SkyView HDX display screen by threading the 4 provided mounting screws into the provided nutplates to get a head start on your installation.

The FastTrack Essentials products are available in both VFR and IFR versions

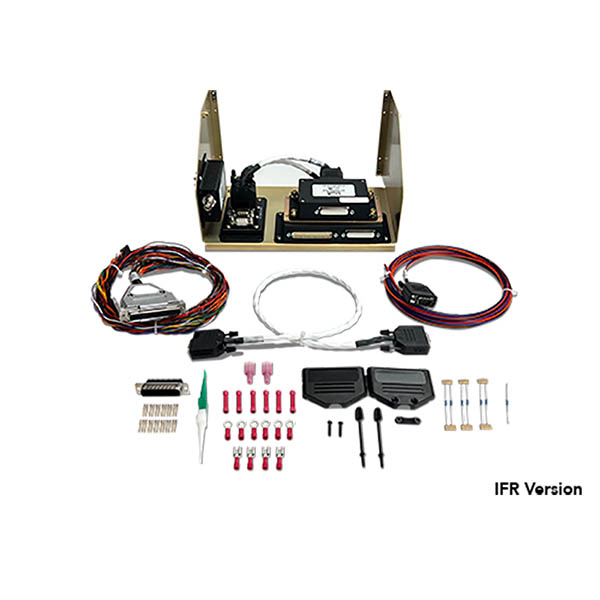

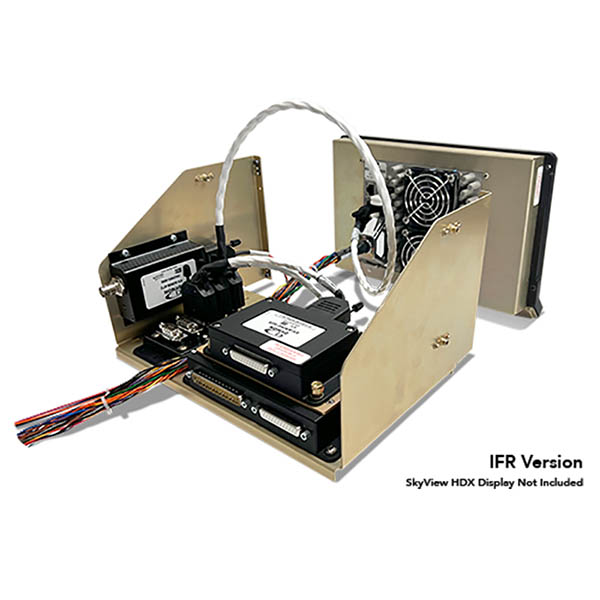

FastTrack Essentials IFR:

  • Universal Module Mounting Tray
  • SV-EMS-220 EMS Module
  • SV-ARINC-429 Module
  • SV-ADSB-472 ADS-B In Receiver Module
  • EMS to ADAHRS/ARINC Module Stacking Kit
  • SV-NET-HUB SkyView Network Hub
  • SV-NET-XinCC SkyView Network Cables
  • SkyView Display Harness
  • ADS-B Receiver Harness Kit

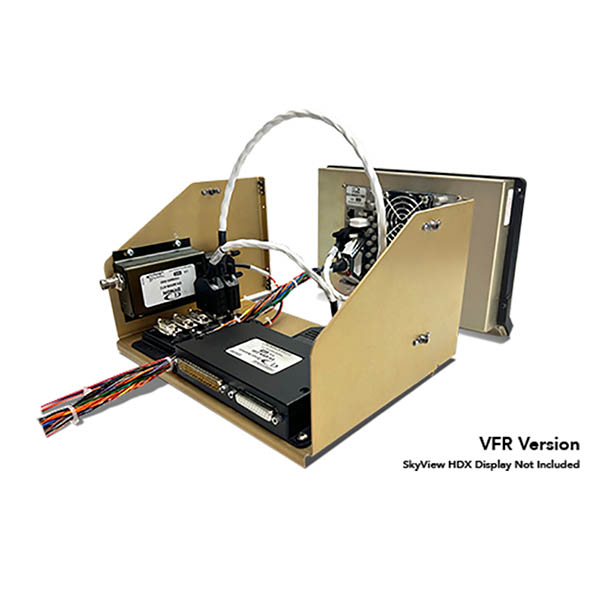

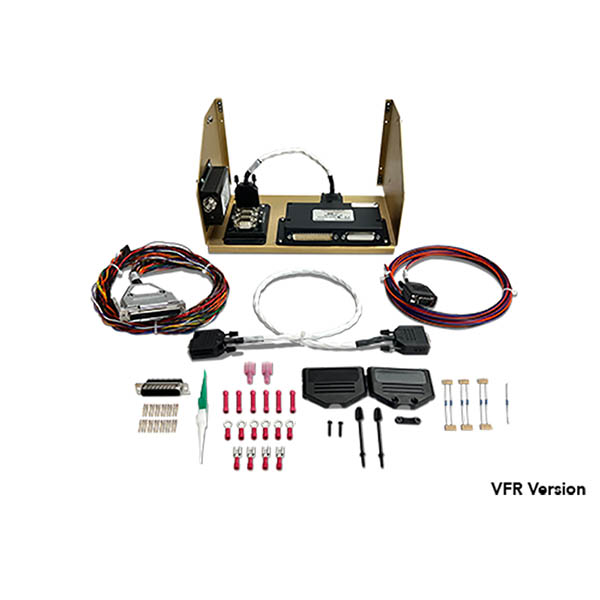

FastTrack Essentials VFR:

  • Universal Module Mounting Tray for SV-HDX1100
  • SV-EMS-220 EMS Module
  • SV-ADSB-472 ADS-B In Receiver Module
  • SV-NET-HUB SkyView Network Hub
  • SV-NET-XinCC SkyView Network Cables
  • SkyView Display Harness
  • ADS-B Receiver Harness Kit
