Dynon Skyview XPDR Transponder

3 Reviews 12 Answered Questions
Select Model:
Class 1Class 2
Select Harness:
Without Harness (Unit Only)With 4 Ft HarnessWith Custom Harness
Quantity
Add to Wishlist View More In This Series →

Overview

Note: Only for use with Dynon SkyView system.

Integrated: Made for the SkyView System with control and annunciation appearing on the SkyView Display. The transponder module can be mounted anywhere in the airplane that is convenient.

Traffic: Features TIS Traffic (USA).

ADS-B Out via 1090 ES: Meets USA and Europe ADS-B Out Mandates. FAA ADS-B Mandate compliance requires that a suitable GPS position source such as the Dynon SV-GPS-2020 GPS Receiver/Antenna module be connected. Alternatively, a TSO’d GPS position source can be used, typically from a connected certified GPS IFR navigator.

Additional U.S. ADS-B OUT Compliance Information: The FAA ADS-B "final rule" only allows the higher power Class 1 transponder to be used as an ADS-B Out transmit device for ADS-B Out mandate compliance on or after 2020. Therefore, for U.S. customers, we recommend only the Class 1 SV-XPNDR-261.

Dynon Warranty, Support, and Service: These transponders come with a 3-year Dynon Warranty.

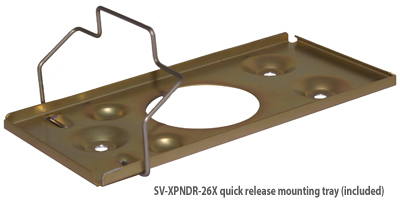

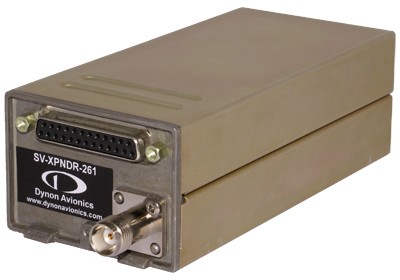

Mounting: At only 1 pound and 5.6" by 1.8" by 2.4", the transponder module can fit into the tiniest places and aircraft. A quick release mounting system allows for simple installation and easy removal if needed for service.

  • Connections: The SV-XPNDR-26X connects to a serial data line on each SkyView Display.
  • Mechanical Dimensions: The display mechanical drawings can be downloaded here:
  • SV-XPNDR-26X Mechanical Drawing
  • TNC Connector: The TNC connector is not supplied by Dynon. Specification: Dual Crimp RG142-400 AMP Male.

Harness

  • Part No. 11-11953 (DYNON SKYVIEW MODE S CLASS 1 XPDR WITH 4FT HARNESS): Comes with 4 ft leads for power, ground, and data lines.
  • Part No. 11-11954 (DYNON SKYVIEW MODE S CLASS 1 XPDR WITH CUSTOM HARNESS): Required questions in the shopping cart regarding lengths of various connectors.

  • Part No. 11-11948 (DYNON SKYVIEW MODE S CLASS 2 XPDR WITH 4FT HARNESS): Comes with 4 ft leads for power, ground, and data lines.
  • Part No. 11-11959 (DYNON SKYVIEW MODE S CLASS 2 XPDR WITH CUSTOM HARNESS): Required questions in the shopping cart regarding lengths of various connectors.

  • Note: Antenna connector is female TNC Out. Need a male TNC to connect to.
  • Accessories
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Submit a Review

Almost a plug and play! Easy to install. Support from Dynon and Aircraft Spruce was exceptional. Made it a breeze to install in an amateur built experimental RANS S12 XL. Integrates very well with the SV system. Set on Auto, one less thing to keep on the checklist. Now adding Dynon SV Radio and intercom for even more stress free flying!

Sharad P
November 13, 2020

What can I say...the Dynon SkyView system is awesome! This transponder works as described and shipped fast!

Foss M
May 9, 2020

DELIVERED AS SPECIFIED IN GOOD CONDITION

Roger G
December 15, 2019

Q&A

Submit

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Can the Dynon Skyview XPDR transponder be driven by (interfaced to) a Garmin 480 panel gps/nav/com?

Per the manufactuerer, the Dynon Skyview XPDR transponder can interface to the Garmin 480.

Q: If you the Dynon Skyview XPDR transponder without the harness does it still come with connector and pins?

The Dynon Skyview XPDR transponder without the harness still comes with the mounting bracket and 25 pin connector kit.

Q: Concerning the Dynon XPNDR-261: <br> 1. If the Skyview unit fails, will the transponder work or stop working? <br> 2. Can its altitude input be driven from an ACK-A30 or other external source, to remove total reliance on the Skyview?

Yes the transponder will still work as it is power separately. Based on the wire diagram, the encoder info is only offered by the Skyview system.

Q: What is the difference between Class 1 and 2 models on the Dynon Skyview Transponder?

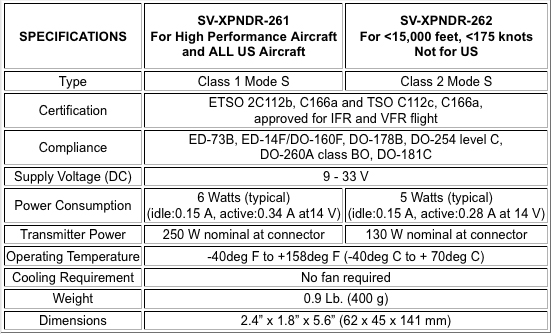

It is the output power (in watts) USA requires class 1 where Europe is ok with class 2.

Q: Is the Dynon SV-XPNDR-261 a 190ES or 978 UAT device?

The SV-XPNDR-261 transponder is 1090ES.

Q: Does the Dynon Transponder require a separate altitude encoder or is it part of the system?

The Dynon Skyview system (ADAHRS) will provide the encoder information to the Dynon transponder.

Q: Will the older Dynon SV 260 drive a Garmin GDL 82?

No, it will not.

Q: I presently have a 262, is this plug and play with same connectors?

These units are mostly identical with similar connectors, but they do have different power outputs.

Q: Will this unit work with the Skyview SE? If so can I change channels on the Skyview SE, & this be my only transponder?

Yes, this is a transponder recommended for the Skyview system, including the SE models.

Q: Can the XPNDR-SV262 class 2 be used in the U.S.A.?

the transponder can be used, however it will not meet any compliance for ADSB-OUT.

View in Catalog

View Image View in Catalog
