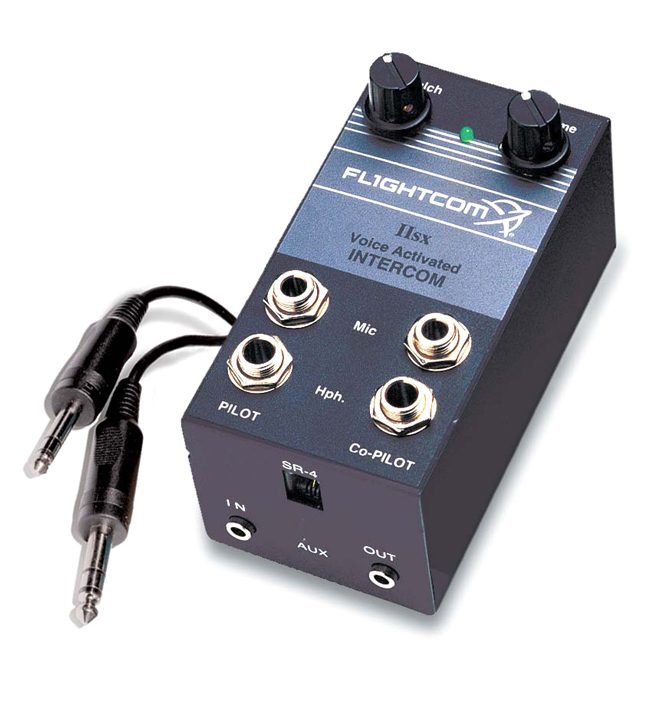

Flightcom IISX 2-Place Portable Intercom

$179.75/Each
Quantity
Add to Wishlist
Part# 11-08700
MFR Model# 101-0220-00

Overview

The IIsx is the world’s most popular 2-place, portable intercom. The modular design offers expansion capability to the backseat if needed.
  • Expandable to 4-place portable with
    optional SR-4 expansion module
  • Auxiliary inputs and outputs for music or
    recording flight information
  • Low-battery indicator and pilot isolate
  • Uses aircraft power or 9-volt battery

Flightcom IISX 2 place includes:
• IISX Intercom
• Cigarette lighter adapter
• Co-pilot transmit cable

Specifications

  • Weight: 10.5 oz
  • Length: 4-1/4"
  • Width: 2-3/6"
  • Height: 2-5/16"
  • Two-year Warranty
  • Mono
  • Aux Input: 3.5 mm jack for music
  • Aux Output: 3.5 mm jack for recording

Reviews

Great little intercom, used it in my side by side

David Q Verified Purchase

Flightcom Iisx 2Pl Intercom

June 2, 2024

Great product for our 1940 Porterfield! Small footprint and works as advertised.

Mark S Verified Purchase

Flightcom Iisx 2Pl Intercom

March 26, 2024

looks go have one in other plane, works well

Dennis L Verified Purchase

Flightcom Iisx 2Pl Intercom

December 28, 2023

awesome product

Ron M Verified Purchase

Flightcom Iisx 2Pl Intercom

December 23, 2023

I am having trouble with intercom. I have to cycle on off switch up to 6 times to get unit to cycle on. Battery cover was difficult to open. Case is metal much more durable

Steve A Verified Purchase

Flightcom Iisx 2Pl Intercom

July 6, 2023

It works as advertised. Perfect for my plane and radio set up.

Dana P Verified Purchase

Flightcom Iisx 2Pl Intercom

May 21, 2023

The best portable com unit I’ve ever used.

Marvin B Verified Purchase

Flightcom Iisx 2Pl Intercom

November 17, 2022

Good product , good price , good service from aircraft spruce

Philippe L Verified Purchase

Flightcom Iisx 2Pl Intercom

August 2, 2022

Works as expected. Very pleased with it. My only criticism is when mounting under the panel, right side up the jacks are on the wrong side. Copilot is on the left side, pilot on right. So wires are crossed. Not a deal breaker at all though.

Pierre B Verified Purchase

Flightcom Iisx 2Pl Intercom

July 15, 2022

I use it in a challenger II. Open cockpit. It does pretty well. Allows good coms with my backseat passenger. .

Kenneth H Verified Purchase

Flightcom Iisx 2Pl Intercom

May 3, 2022

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Can the Flightcom IISX intercom be mounted in/on the instrument panel?

No, it is a portable intercom and is not designed to be mounted in/on the instrument panel.

Q: Can this be connected to a PC, used with Flight Simulation software, so both Pilot and Co-Pilot can hear and communicate with Pilot Edge?

No this will not as your computer does not have .25 and .206 jack input like an aircraft would. You can you Aircraft Spruce P/N 13-04178 but this is only for one headset.

Q: Can both pilots hear themselves if the intercom is on and powered but not plugged into the aircraft?

Yes, both pilot and co-pilot can have a conversation while power is on and not pluged into the aircraft jacks.

Q: If we connect an iPod to the Flightcom IISX, does ATC hear the music when pressing the push-to-talk?

If a music device is connected to the IISX per the manual on page 4 "radio, intercom, and music signals will be mixed" (volume control for music is controlled via the music device).

Q: Is music input (and headphone output) for the Flightcom IISX 2 place portable intercom stereo or mono?

Per the manual, the Flightcom IISX 2 place portable intercom can only output mono regardless if the source is stereo or mono. If you have a stereo headset, you would also have to set it to mono when plugged in. In this setting though, you can hear music in both ears.

Q: Will this work with an Icom handheld?

The Flightcom IISX 2-Place intercom will work with an Icom handheld provided that the appropriate ICOM adapter is interfaced with the intercom.

Q: Can one use a extension cable between a headset and the Flightcom IISX 2-place portable intercom?

Using an extension cable such as PN: 11-06520 will work fine between the Flightcom IISX 2-place portable intercom and a your headset.

Q: I have a sigtronics S-20 and an Icom IC-A22 handheld. Will the flightcom intercom work? If so what adapter do I need? Larry

Yes, it will work. You will need the headset adapter cable OPC-499 which is our part number 11-18537.

Q: Will this intercom work with the YAESU handheld FTA-230?

Yes, you will need part number 11-02562 to adapt the FTA-230 to the flightcom IISX intercom (11-08700). If you would like a PTT switch add part number 11-12100.

Q: Can you connect it to a GO-PRO video camera so you can record all audio on it?

With use of cable 11-11565 you can connect your Go-Pro inline with your headset. This will record all audio to your Go-Pro device. You can use this configuration with any intercom or com unit.
