Garmin G3X Manifold Pressure 30 Psia Sensor Kit

$147.75/Each
Quantity
Add to Wishlist
Part# 10-05864
MFR Model# 494-30004-01

Overview

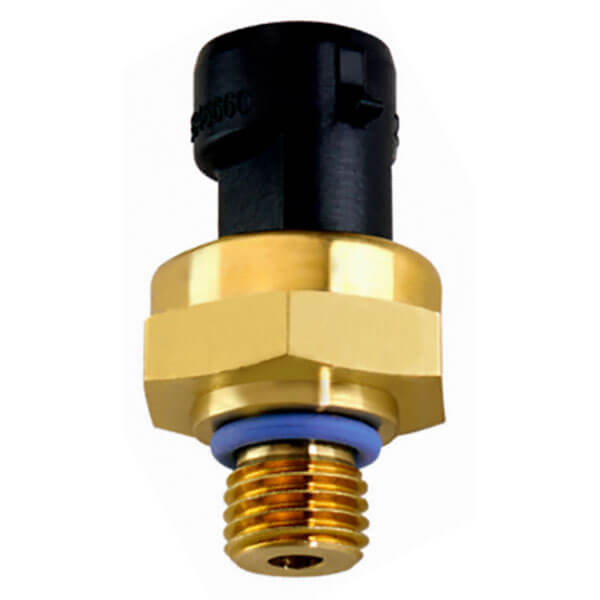

Garmin G3X Manifold Pressure 30 PSIA 1/8-27 NPT Sensor Kit.

The P4055 Pressure Transducer incorporates a back-side PRT configuration that is compatible with many types of liquid and gaseous media. This flexible product family can be supplied with a built-in Metri-Pack 150 electrical connector. The small sensor size is ideal for high volume applications. Pressure ranges may be customized for OEM applications. The P4055 is specified with pressure ranges measured in PSI.

Features

  • Small Size
  • Absolute, Gage or Sealed Gage Pressure References
  • Packard Metri-Pack 150 Electrical Connector Standard
  • 0.5 to 4.5 Vdc Output
  • High Vibration Tolerance
  • Superior EMI/RFI Performance
  • Available with NPT, G1/4, M10, & M12 Pressure Ports
  • Temperature Compensated
  • RoHS Compliant

Specifications

  • Pressure Ranges: 0 to 3 up to 0 to 300 PSI
  • Electrical Connection Packard Electric Metri-Pack: 150 Series
  • Pressure Connection 1/4-18 NPT: (external), 1/8-27 NPT (external)
  • Housing Material: Brass
  • Output Signal: 0.5 - 4.5 VDC

  • Pressure Ranges
    • Operating Life Cycle: min. 10 million full pressure cycles over the full range
    • Vibration Resistance: 10 G’s peak to peak sinusoidal, from 20 to 2000 Hz
    • Shock Resistance: 75 G’s ½ sine wave
    • Drop Test: 1m onto concrete surface
    • Weight: ≤ 50 grams
    • Ingress Protection: IP67
    • Operating Temperature: -40°C to + 125°C
    • Environmental Temperature: -40°C to + 125°C
    • Storage Temperature: -40°C to + 125°C
    • Media: All class II fluids and gases compatible with brass and fluorosilicone

  • Electrical
    • Output Signal: 0.5…4.5 VDC ratiometric
    • Operating Supply Signal: 5 VDC ± 5%
    • Power Consumption: ≤ 25 mW
    • Overvoltage Protection: 16 VDC
    • Short-circuit Proofness: Yes *2
    • Insulation Voltage: 500 VDC
    • Reverse Polarity Protection: Yes *3
    • Impedance Min load: 25 kΩ
    • Response Time: ≤ 10 ms max. to 63% of full scale pressure with step change on input

Applications

  • Pumps & Compressors
  • Process Controls
  • Filter Restriction
  • Oil and Fuel Pressures
  • Water Management
  • Level Measurement
  • Test & Monitoring Equipment

Approvals & Certificates

  • CE Compliance: Pressure equipment directive 97/23/EC
  • EMC directive 2004/108/EEC, EN 61 326 Emission (Group 1, Class B) and Immunity
  • (industrial locations), EMI, ESD protected
  • ROHS: 2002/95/EC RoHS Directive
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Direct replacement. Wires are in a plug, so no rewiring required.

Mark E Verified Purchase

Garmin G3X Manifold Pressure 30 PSIa 1/8-27 NPT Sensor Kit

March 8, 2024

The product description was misunderstood. I thought this pressure sensor worked from 30–300 PSIA. In reality, this pressure sensor is only 30 PSIA maximum. There are other unique sensors for different pressure ranges. Unfortunately, I will have to return this product and obtain a different sensor for my personal need of a maximum pressure of 50 PSIA.

Lee T Verified Purchase

Garmin G3X Manifold Pressure 30 PSIa 1/8-27 NPT Sensor Kit

August 18, 2023

Jaakko M Verified Purchase

Garmin G3X Manifold Pressure 30 PSIa 1/8-27 NPT Sensor Kit

October 18, 2022

Jaakko M Verified Purchase

Garmin G3X Manifold Pressure 30 PSIa 1/8-27 NPT Sensor Kit

October 18, 2022

Product was exactly what I expected and what I needed for my G3X EIS. So far, its working fine, but I fear it may become inoperative like my last one due to no screen installed to keep carbon deposits out of the sensor.

C & Verified Purchase

Garmin G3X Manifold Pressure 30 PSIa 1/8-27 NPT Sensor Kit

September 4, 2021

Yep, it is what it is

Mike L
October 8, 2020

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

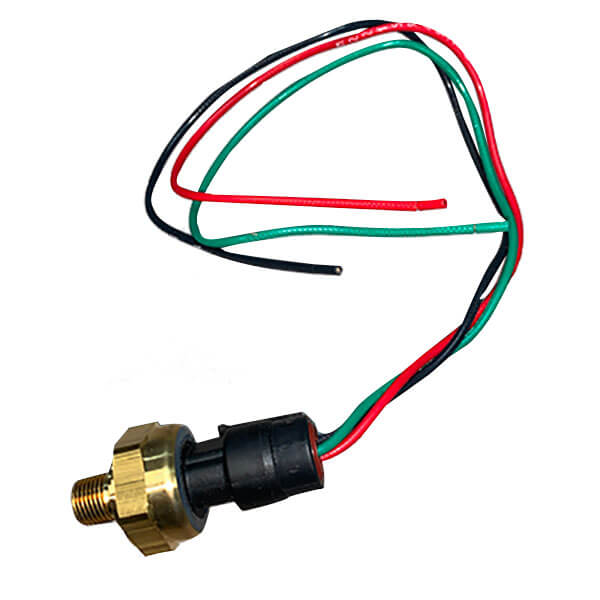

Q: Wire colors? Red=supply voltage, Black=Output, Green=Ground. Is this correct?

Red: voltage (in) | Green: voltage out | Black: Ground
