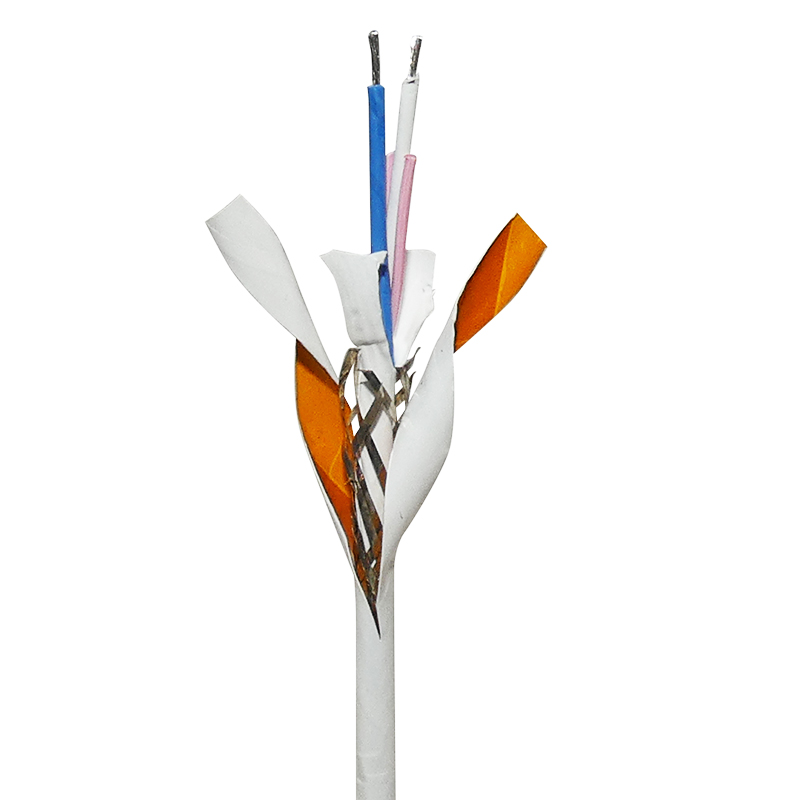

Garmin Carlisle Can24Tst120 - Can Bus Cable

$13.50/Foot
Quantity
Add to Wishlist
Part# 11-17264
MFR Model# CAN24TST120

Overview

GARMIN recommends the use of P/N CAN24TST120(CIT) cable to interface the CAN Bus on G3X, G5, GMU11, GAD29B, GFC500, GMC507, GSA28, etc.

Note: Please refer to GARMIN’s STC Installation Manual for specific details.

Specifications

  • Details: Carlisle CAN24TST120
  • AWG: 24
  • Impedance: 120 (Ohms)
  • Velocity of Propagation: 79%
  • Cable Diameter (in): 0.142
  • Cable Weight (lbs): 14
  • Min. Bend Radius (in): 1.42
  • Operating Temperature: -55 to 150°C
  • Type: Maxflite - CAN Bus
  • Meets FAR 25.853 and Boeing/Airbus Smoke and Toxicity
  • Frequently Purchased With
  • Customers Also Viewed
  • Related Items

Reviews

Good

Alain M Verified Purchase

CaN24TsT120 Canbus Wire 120 Ohm

August 15, 2024

Garmin suggests this wire instead of a shielded 2/3 pair. I dont know if it really makes a difference, Ive had no issues either way with single piston installs ie. small planes.

Tango L Verified Purchase

CaN24TsT120 Canbus Wire 120 Ohm

February 2, 2023

Expensive as all get-out, and while the install manual for Garmins G5 gives you the option of using this wire or Mil-Spec 27500 wire for the CAN Bus, they strongly recommend using the CAN Bus wire if you plan to install their GFC 500 Auto Pilot. This might be in our future, and the GFC 500 is a dealer-only install, so .. we figured we could either pony up now or pony up later. We self-installed our G5 HSI / GMU 11 / GTP 59 / GAD 29B / GAD 13 under our IAs supervision. Fishing this wire through to the wing tip for the GMU 11 was half a days work and Im glad we sprung for the recommended CAN Bus wire.

Nathan M
April 13, 2020

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

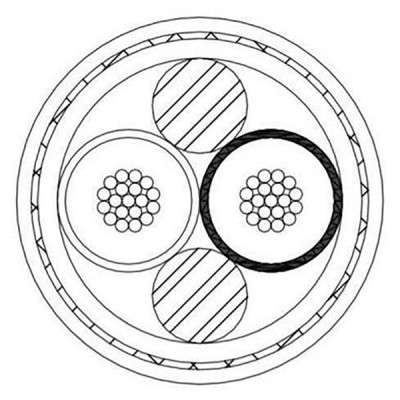

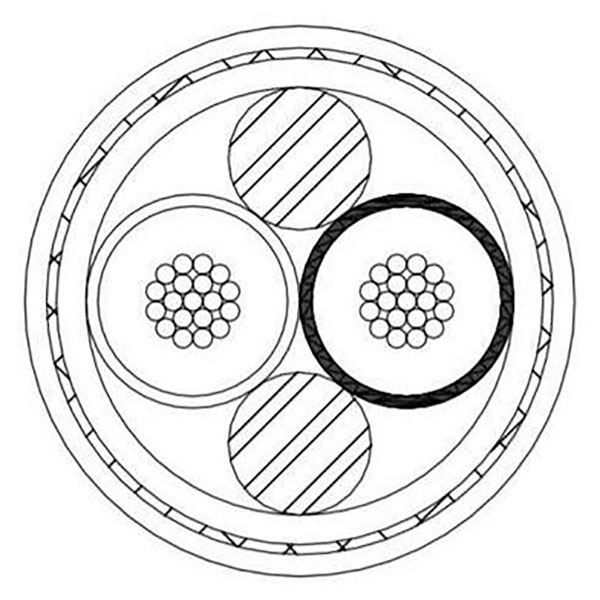

Q: Is this a composite cable with a twisted-shielded pair (Can Bus) plus 2x single conductors (power)?

This is similar to two conductor milspec wire. It is shielded and only has two conductors twisted wire.

Q: Is this CAN24TST120(CIT)? I see the PN is slightly different but the description makes me think it is?

Yes, it is the same.
