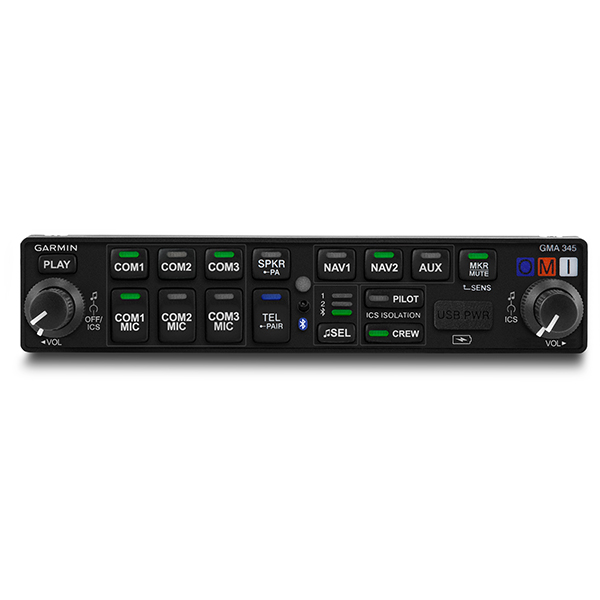

Garmin GMA 345 Audio Panel - 3 Comm With Bluetooth Connectivity

1 Review 5 Answered Questions
$3285.00/Each
Quantity
Add to Wishlist
Part# 10-06606
MFR Model# 010-01319-23

Overview

Bluetooth® Audio Panel for Your Certified Avionics
  • Bluetooth connectivity enables easy access to phone calls and audio entertainment
  • Draws on top-end Garmin audio technology for “home theater” quality sound with dedicated music volume knobs for pilot and copilot
  • 3D Audio processing helps pilots “locate” inputs coming into their headsets
  • USB charging port provides power for smartphones, tablets, music players and more
  • Offers slide-in replacement upgrade for GMA 340 and select third-party audio panels
Bringing rich “home theater” quality sound and wireless Bluetooth¹ audio connectivity to your avionics stack, the GMA 345 digital audio panel offers a superior inflight audio experience at an affordable price. Featuring 3-D spatial sound processing, a USB charging port, marker beacon receiver, advanced Auto Squelch, clearance playback and impressive audio mixing and distribution features, this all-digital unit offers the ideal blend of capabilities for pilots who want to hear and do more with less effort in the cockpit. Plus, it’s an easy slide-in upgrade from select third-party audio panels or legacy GMA 340 units.

Connect Wirelessly with Bluetooth
    Built-in Bluetooth connectivity makes it easy for you to wirelessly pair your smartphone or other compatible device with the audio system. So, you can make and receive calls in the cockpit, as well as stream audio entertainment through as many as 6 headset positions in the aircraft. The powered 2.1 amp USB port on the unit’s faceplate helps keep your phones and mobile devices charged. Moreover, GMA 345 features 2 dedicated rear audio connections, allowing hardwired sources — such as SiriusXM® satellite radio or other high-fidelity music inputs — to be played and distributed through the audio system. Music effects also add to the rich audio experience provided by GMA 345. You can select enhanced bass boost levels as well as equalizer effects that include rock, classical and pop audio profiles.
Listen in Virtual 3-D
    For your radio communications, advanced 3-D digital sound processing, first introduced to general aviation by Garmin, enables GMA 345 to approximate how the human ear normally hears and registers multiple audio sources in space. With stereo headsets, incoming audio is spatially separated to reflect how different audio sources are coming from different directions around you. This makes it easier to distinguish one source from another — and helps you focus on the higher-priority calls coming into your headset. For example, COMM 1 will seem like it’s coming from the left while COMM 2 will seem to be coming from the right.
Get Instant Replay on ATC Calls and Clearances
    An automatic digital voice recorder on the audio panel continuously captures the last 60 seconds of incoming active comm audio for instant playback on request with a single button press. Any pilot who’s ever missed an ATC call, frequency assignment or clearance amendment will appreciate the value of this handy “say again” function.
Experience Advanced Audio Processing
    At full capacity, GMA 345 will support dual comm, dual nav and multiple aux receivers — totaling up to 7 radios. There’s a 6-place automatic VOX intercom with 3 modes of isolation. And a split-comm mode lets the pilot and copilot broadcast on independent frequencies. For example, the pilot can use COMM 1 while the copilot uses COMM 2.

    To further enhance the cockpit audio experience, advanced Auto Squelch technology on GMA 345 automatically adapts to a quiet or noisy environment without clipping words or cutting out during conversation. A high-performance digital signal processor constantly monitors ambient noise level and automatically adjusts the mic squelch level required to keep intercom conversation as comfortable and natural as possible — whether you’re talking over engine noise in flight or quietly going through your preflight checklist on the ground. The unit’s Auto Squelch technology automatically adjusts for these variances, allowing you to speak at normal levels, no matter what the ambient sound conditions may be.
Capture Cockpit Audio on Your Video
    GMA 345 can pair via Bluetooth with the VIRB Ultra 30 series of HD action cameras — allowing you to overlay intercom audio and ATC communications on the HD inflight video you’re shooting. Since there’s no headset audio cable required, your VIRB action camera is free to move about the cabin so you can shoot from the best possible angle.
Easy Installation/Upgrade
    Upgrading the audio experience in your cockpit is easy with GMA 345. It’s fully rack-and-pin compatible in dual-Comm installations with the Garmin GMA 340 as well as select third-party audio panels. So, it doesn’t take long for your installer to pull out the old and slide in the new. The audio panel’s built-in intercom and marker beacon help further reduce installation time for the system. And since it can operate on either 14 or 28 volts, there’s no need for any external voltage regulators or the wiring that goes with them. Fast, easy, affordable — that’s the GMA 345 audio upgrade path.

Specifications

Physical & Performance

  • Electrical: 14-28 VDC
  • Unit Size: 6.3"W x 1.33"H x 8.09"D (160 x 34 x 205 mm), includes mounting rack and connectors
  • Weight: 1.78 lbs (807.4 g), includes rack, backplate and connectors

Environmental

  • Temperature: -20° C to +55° C (operating)
  • Altitude range: to +55,000 ft. MSL unpressurized
  • Power requirements: 11 to 33 VDC input

Radio Inputs

  • Impedance: 600 ohm
  • Max input: 5 Vrms
  • Isolation: 60 dB minimum
  • Bandwidth: 100 Hz to 6.5 kHz
  • Transceiver: 3 (including TEL)
  • Receiver: 5 (NAV1, NAV2, AUX1, AUX2, AUX3)
  • Alerts: 4 (unswitched)
  • Telephone input: 1

Intercom Functions

  • Positions: 6 (pilot, copilot, 4 passengers)
  • Volume control: 2 (pilot, copilot/passengers)
  • VOX: Automatic (1 per MIC input)
  • Modes: Pilot, crew, all
  • MIC impedance: 150 ohm
  • MIC bias: 11 VDC through 470 ohm
  • Keyed ICS: Configurable

Music functions

  • Inputs: 2 (Independent from Bluetooth audio)
  • Impedance: 600 ohm (differential)
  • Max input: 3.0 Vrms
  • Gain: +24 dB Max/-96dB Min
  • Input level: < 200 mVrms at max gain for full power out
  • Bandwidth: 20 Hz to 20 kHz
  • Distortion: < 0.1% THD+N typical at full power over full bandwidth
  • Muting: Selectable and configurable
  • Volume Control: Knob controlled (Pilot and copilot/passenger)

Bluetooth

  • Supported profiles: A2DP (music streaming), AVRCP (music playback control) and HFP (phone)
  • Paired devices stored: 10
  • Connections allowed: 1 device
  • Supported devices: Phones, tablets, VIRB XE, VIRB Ultra 30 and select 3rd party cameras
  • Volume: Set by device and adjustable using GMA controls

Headphone Outputs

  • Output amplifiers: 3 stereo (pilot, copilot, passenger)
  • Output power: 65 mW into 150 Ohms pilot and copilot, 260 mW into 37.5 Ohms passenger
  • Distortion: < 3% THD+N at 10% Power, < 10% THD+N at full power
  • Frequency response: 20 Hz to 20 kHz
  • Impedance rated: 150 Ohm pilot/copilot, 37.5 Ohm passenger (4-150 Ohm headsets)
  • Impedance supported: 150 to > 600 Ohm

COM/TEL Microphone Outputs

  • Output power: 15 mW into 150 Ohms (1.5 Vrms)
  • Distortion: < 3% THD+N at 10% power, < 10% THD+N at full power
  • Frequency response: 300 Hz to 6 kHz

USB Charge Port

  • Rated power: 10 Watt
  • Max charge current: 2.1 Amps
  • Overcurrent protection: USB charge port protection with current > 2.3 Amps
  • Charging scheme: DCP

Speaker

  • Outputs: 1
  • 28 Volt aircraft: 10 Watt into 4 Ohm; 7 Watt into 8 Ohm
  • 14 Volt aircraft: 3 Watt into 4 Ohm; 8 Ohm Not Recommended
  • 3dB@1kHz Bandwidth 350 Hz to 6.5 kHz
  • Distortion: < 10% THD+N at full power, < 3% THD+N at 10% power

Voice Recorder

  • Record time max: 1 minute

Code Load Options

  • SD Card

DIP Switch

  • Config switches: 8 (see install manual for descriptions)

Lighting Bus

  • Voltage: 14 V or 28 V

In The Box

  • GMA 345 audio panel
  • Installation kit
  • Pilot's guide

Reviews

Submit a Review

Why not 5 stars? Because this was a difficult install. Function and performance wise, this is a 5 star product. This was bought for my home built experimental plane. No wiring harness exists. Install manual does not exist because it is a slide in replacement. I must strongly emphasize my last statement. Looking through a variety of Garmin documentation, you can find wiring pin out examples of its predecessor. For me, that is the only thing to go by. The GDU460, GTN650 has pin out interconnects that will be your guide when you build the wiring harness from scratch. Follow the GMA340 examples. Use 24ga wire when considering the wiring harness. The high-density gold pins will work with 22ga, but nearly impossible to extract because of a crowded fitting. Audio to a 8 (4 ohm) speaker is outstanding. The bluetooth feature is valuable! This is a high end product. The documentation for this product says take the GMA345 to a Garmin dealer/support for installation. I successfully installed this.

Kenneth C
February 25, 2023
