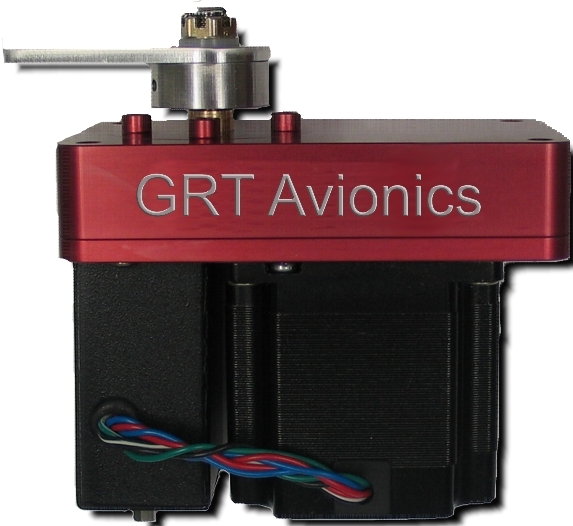

Grt Avionics Autopilot Servos Pitch Servo Version

$1230.00/Each
Quantity
Add to Wishlist
Part# 11-09792
MFR Model# AP-SERVO-PITCH-B

Overview

Add full-featured autopilot capability to any GRT EFIS.

Features

  • Servos support all autopilot features provided by the EFIS, including:
    Heading select
    ILS approach coupling
    GPS approach coupling
    Climb/Descent to selected altitude
    Climb/Descent on IAS or vertical speed
    Synthetic approach coupling
    Automatic approach capture
    VOR coupling
  • Fail-Safe Servo Design:
    Clutchless - Minimizes possibility of inadvertent servo jam
    Shearable Output Arm - disconnects servo mechanically in the rare case of an internal servo jam
    Limited Authority - Pilot may override the servo by simply moving the control stick
  • Safe Design Features:
    Servo arm retained by castle nut.
    Case retained with safety-wired fasteners such that the geartrain can not separate to potentially jam flight controls.
    Servo torque sensing provides Trim Up/Down indication to prevent unexpected loss of pitch control
    Unexpected disconnect or mode change generates EFIS alarm

Documents

  • Frequently Purchased With
  • Customers Also Viewed
  • Related Items

Reviews

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Will the GRT pitch servo support the TT Altrak VS. Is it a direct replacement of Trutrak Pitch Servo?

The GRT Avionics Autopilot Servos are supported for GRT Efis's. Any combination or use of these servos with another company's product is not tested or recommended.

Q: Does this servo come with the install kit?

No that will need to be ordered separately. Please see part number 11-11767.
