Overview

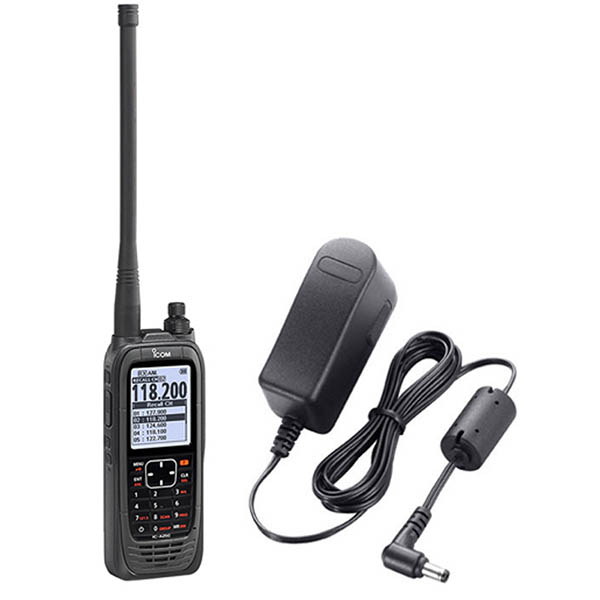

The A25 series is a powerful air band handheld with 6 watts of power and an IP57 waterproof rating; weather cannot stop these radios. AC adapter for use with BC-191, BC-193, BC-205, BC-224

Features

Class-Leading High Power RF Output: Output power is increased to approximately 6 W typical (PEP) and 1.8 W typical (carrier) compared to the IC-A24 (5/1.5 W (PEP/carrier)). This expands the communication coverage and enhances the safety of aircraft operation.
Easy-to-Use Interface: Often used functions are assigned to the keypad and you can directly access a desired function. The enlarged flat sheet keypad offers smooth and swift operation.
2.3 inch Large High Visibility LCD: The large and high visibility LCD provides user-friendly, graphic screens. The night mode option enables easy viewing in the dark. The operating frequency in large characters can be recognized at a glance.
"Flip-Flop" Channel Recall: The IC-A25C stores the last 10 channels used. You can easily recall those channels by using the directional keys or the channel knob on the top panel.
Intelligent Battery with Detailed Battery Status: The supplied BP-288, 2350 mAh (typical) intelligent battery pack, provides up to 10.5 hours* of operating time. You can check the condition of the battery pack in the battery status screen. It is very useful for optimum charging and battery health maintenance.
*Typical operation with Tx: Rx (Max.audio): standby=5:5:90. (Bluetooth OFF, GPS ON)

Specifications

• COM Channels
• Frequency Range:
• TX-118.000–136.992 MHz
• RX-118.000–136.992 MHz
• RX (Weather)-161.650–163.275 MHz
• Number of memory channels: 300 channels/15 groups
• Channel spacing: 25/8.33 kHz
• Type of emission: 6K00A3E, 5K60A3E, 16K0G3E (Weather)
• Power supply requirement: 7.2 V DC (BP-288), 11.0 V DC (External DC Jack)
• Antenna impedance: 50 Ω
• Operating temperature range: −10 °C to +60 °C;
• −14 °F to +140 °F
• Dimensions (W × H × D;): (Projections not included): 58.9 × 148.4 × 31.8 mm;
• 2.3 × 5.8 × 1.3 in
• Weight (approximately): 340 g; 12.0 oz (with BP-288)

Benefits

• IP57 dust-protection and waterproof construction
• Operate with six AA size alkaline batteries with the BP-289 battery case
• BNC antenna
• 121.5 MHz emergency key
• Weather channels
• Priority watch
• VFO scan, memory channel scan, priority scan
• ANL (Auto Noise Limiter) for noise reduction
• Side tone function
• Internal VOX capability
• 300 memory channels (in 15 memory groups) with 12 character names
• 8.33 kHz channel spacing

Documents

• Basic Manual
• Full Manual
