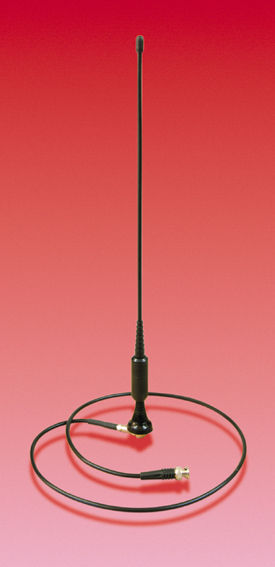

Lynx Micro System Short Flexible VHF Antenna
MFR Model# M090
Overview
|
The Short, 14", Flexible VHF Antenna is tuned to the frequency range 118-137MHz for use with airband radios. The antenna is designed for mounting into the metal or composite skin of an aircraft For use in glass fibre structures. the antenna is supplied with a self adhesive aluminium foil ground~plane. To minimise the length of the antenna element. the design incorporates a base tuning coil. The short flexible element makes the antenna suitable for mounting on the nose or underneath many aircraft. The lead is fitted with an FME plug at the antenna feed and a BNC plug for direct connection to a radio. The lead is one metre long (three feet).
|
Features
- Short flexible design
- Optimised for airband frequency
- High quality crimped FME and BNC connectors

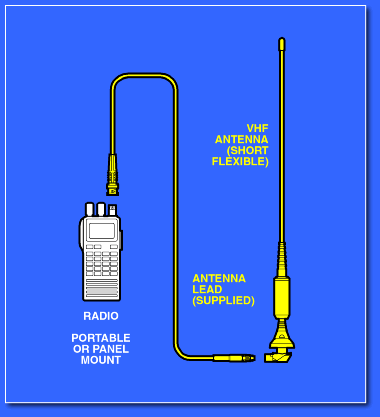

Schematic
Reviews
Mounted inside fuselage of a S-1S behind the seat, works perfectly!
Verified Purchase
Lynx Micro Pilot Systems VHF Short Flexible Antenna
Looks like a nice antenna. The dimensions indicate it is 14 tall but with all the base fittings it is about 15-1/2 tall from the mounted surface. Too tall to fit under my turtledeck where I only had 14-1/2 of clearance.
Verified Purchase
Lynx Micro Pilot Systems VHF Short Flexible Antenna
This upgraded the system for my ultralight and is working great! Perfect!
Verified Purchase
Lynx Micro Pilot Systems VHF Short Flexible Antenna
This antenna worked great with my ICOM A25C radio.
Verified Purchase
Lynx Micro Pilot Systems VHF Short Flexible Antenna
Great product. A Lightweight application I need for the Rans S9 Chaos.
Nice installation on my bi-plane.
Easy to install, but panel thickness limited to about 5mm otherwise you cant fit the gasket and skirt on the outside. I added more Aluminium tape for the groundplane- that supplied was probably adequate, but a bit on the sparse side. Pre-terminated cable was very handy. Reception excellent.
Verified Purchase
Lynx Micro Pilot Systems VHF Short Flexible Antenna
Q&A
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
The antenna is about 14 inches long and cannot be cut.
Yes, this antenna will work through wood & fabric and composite aircraft like carbon fiber.
As long as the aircraft is of a wood and fabric or composite design you can mount your Com antenna inside the aircraft.
Lynx only recommends installing this antenna on the nose or belly of the aircraft. There has been no testing done on the degrees of bend at 100mph.
The VHF Antenna has a flexible antenna element which screws onto the installed antenna base. This makes it easy to fit and remove.
Yes, this can be used in a fabric aircraft.
Per the installation manual: the maximum is 30 degree bend.
No, this antenna is not FAA Approved. It is intended for installation in experimental aircraft only.
The antenna comes with two lengths of adhesive foil ground plane, 290mm each, to be installed in a cross pattern.
