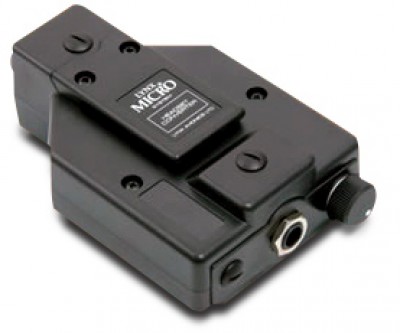

Lynx Avionics Headset Converter (Single Jack)

$465.00/Each
Quantity
Add to Wishlist
Part# 11-09307
MFR Model# M071

Overview

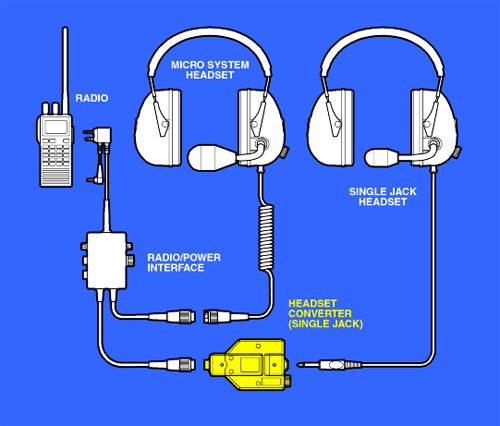

The Headset Converter (Single Jack) is for use with aviation headsets or helmets fitted with a single 6.35mm (1/4") jack plug and allows the headset or helmet to connect to a Lynx Micro System Radio/Power Interface.

Headsets or helmets fitted with a single 6.35mm (1/4") jack plug are usually manufactured for use in ultralight aircraft and are available from many different manufacturers with different combinations of speaker impedance and microphone type. The converter can be configured to work with speaker impedances from 8 to 600 Ohms and dynamic, electret or carbon (Amplified) microphones.

The converter will allow virtually any single jack ultralight headset or helmet to be used in an aircraft which have Lynx Micro System equipment installed.

The Converter is backwards compatible with all Lynx Micro System products and maintains all of the Radio/Power Interface functions including selective PTT operation and microphone muting.

The converter is very useful in syndicated aircraft where some users wish to retain the use of their ultralight aviation headsets or helmets.



Download the Instruction Sheet (PDF)
Download the Configuration Instructions (PDF)
Download the Fixing Kit Instruction Sheet (PDF)

Features

  • Connects single jack headset or helmet
  • Works with speakers from 8 to 600 Ohms
  • Accepts dynamic, electret or carbon microphones
  • Headset volume control
  • Maintains selective PTT operation and muting
  • Water resistant bayonet locking connector
  • Supplied with fixing kit
