AN3 Bolts ( 10-32 )

294 Reviews 0 Answered Questions
From $0.26 to $51.75
Reference Chart

(Hover to zoom | Use mouse wheel for +/-)

Dash No. Nominal Length Grip Length AN3(10-32)
Cadmiun
Drilled		 AN3(10-32)
Cadmiun
Undrilled 		AN3C(10-32)
Stainless
Drilled		 AN3C(10-32)
Stainless
Undrilled
-315/321/16$1.20
Quantity
$0.26
Quantity
$1.24
Quantity
$1.42
Quantity
-417/321/8$1.23
Quantity
$0.26
Quantity
$2.16
Quantity
$2.24
Quantity
-521/321/4$0.87
Quantity
$0.29
Quantity
$2.39
Quantity
$1.17
Quantity
-625/323/8$1.38
Quantity
$0.32
Quantity
$2.47
Quantity
$2.99
Quantity
-729/321/2$1.38
Quantity
$0.37
Quantity
$2.62
Quantity
$1.38
Quantity
-101-1/325/8$0.88
Quantity
$0.52
Quantity
$2.27
Quantity
$1.97
Quantity
-111-5/323/4$1.29
Quantity
$0.43
Quantity
$2.12
Quantity
$1.18
Quantity
-121-9/327/8$1.51
Quantity
$0.41
Quantity
$2.53
Quantity
$1.57
Quantity
-131-13/321$0.97
Quantity
$0.49
Quantity
$2.80
Quantity
$1.12
Quantity
-141-17/321-1/8$1.42
Quantity
$0.46
Quantity
$2.92
Quantity
$2.22
Quantity
-151-21/321-1/4$1.50
Quantity
$0.71
Quantity
$2.84
Quantity
$1.23
Quantity
-161-25/321-3/8$1.44
Quantity
$0.61
Quantity
--$1.85
Quantity
-171-29/321-1/2$1.14
Quantity
$0.67
Quantity
$6.60
Quantity
$2.24
Quantity
-202-1/321-5/8$1.20
Quantity
$0.82
Quantity
$19.50
Quantity
$1.62
Quantity
-212-5/321-3/4$2.62
Quantity
$0.82
Quantity
--$3.45
Quantity
-222-9/321-7/8$1.24
Quantity
$0.91
Quantity
--$2.16
Quantity
-232-13/322$1.30
Quantity
$0.70
Quantity
--$2.12
Quantity
-242-17/322-1/8$1.42
Quantity
$1.06
Quantity
--$4.40
Quantity
-252-21/322-1/4$1.41
Quantity
$0.80
Quantity
--$2.27
Quantity
-262-25/322-3/8$1.71
Quantity
$1.20
Quantity
--$17.50
Quantity
-272-29/322-1/2$1.97
Quantity
$0.87
Quantity
--$15.90
Quantity
-303-1/322-5/8$1.36
Quantity
$0.97
Quantity
--$4.99
Quantity
-313-5/322-3/4$3.35
Quantity
$1.20
Quantity
----
-323-9/322-7/8$1.68
Quantity
$1.20
Quantity
----
-333-13/323$1.59
Quantity
$1.30
Quantity
----
-343-17/323-1/8$1.80
Quantity
$1.36
Quantity
----
-353-21/323-1/4$2.87
Quantity
$1.91
Quantity
----
-363-25/323-3/8$2.00
Quantity
$1.48
Quantity
----
-373-29/323-1/2$2.18
Quantity
$2.41
Quantity
----
-404-1/323-5/8$1.95
Quantity
$1.51
Quantity
----
-414-5/323-3/4$2.28
Quantity
$2.93
Quantity
----
-424-9/323-7/8$2.06
Quantity
$1.79
Quantity
----
-434-13/324--$1.91
Quantity
----
-444-17/324-1/8$5.90
Quantity
$2.54
Quantity
----
-454-21/324-1/4$2.35
Quantity
$2.21
Quantity
----
-464-25/324-3/8$8.50
Quantity
$6.65
Quantity
----
-474-29/324-1/2$5.35
Quantity
$2.18
Quantity
----
-505-1/324-5/8$19.50
Quantity
------
-515-5/324-3/4$15.65
Quantity
$14.50
Quantity
----
-525-9/324-7/8--$15.65
Quantity
----
-545-17/325-1/8$17.50
Quantity
$19.50
Quantity
----
-555-21/325-1/4--$18.65
Quantity
----
-565-25/325-3/8$38.99
Quantity
$17.55
Quantity
----
-575-29/325-1/2--$21.90
Quantity
----
-606-1/325-5/8$51.75
Quantity
$20.80
Quantity
----
-626-9/325-7/8--$20.50
Quantity
----
Subtotal $0.00
Add to Wishlist

Overview

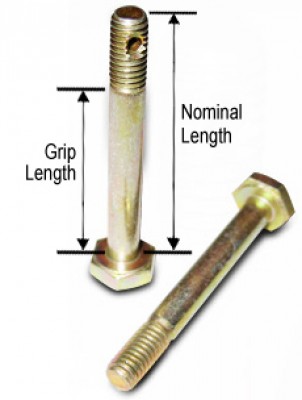

Hex head aircraft bolts are made of high-strength type 4037 or 8740 alloy steel (type 8740 is most commonly used). The bolts are centerless ground and threaded after heat treatment. Minimum tensile strength 125,000 PSI. Cadmium plated per specification QQ-P-416A, Type II, Class 3. Available with shank drilled for cotter pin or undrilled for stop nut application, and with or without drilled head for safety wire. Specify bolts to have undrilled shank by adding letter "A" after the dash number. For bolts with drilled head add letter "H" after the AN number. (AN3H-15) See illustrated examples. "C" represents Type 431 Stainless Steel (contains iron which is magnetic). The length of AN aircraft bolts is measured from under the head to the end of the shank. The "grip" is the unthreaded portion of the shank. See table for conversion of length and/or grip to proper AN callout. "C" stands for stainless. Others are cadmium plated.

15% discount on qty of 50-99
20% discount on qty of 100+

Note: Drilled bolts listed above are drilled shank only. To order drilled head only or both drilled head and shank bolts, please use our AN Bolt Selector by clicking the link below.
