Mid-Continent Instruments and Avionics Annunciation Control Unit TB44

$1700.00/Each
Quantity
Add to Wishlist
Part# 10-07593
MFR Model# MD41-1844

Overview

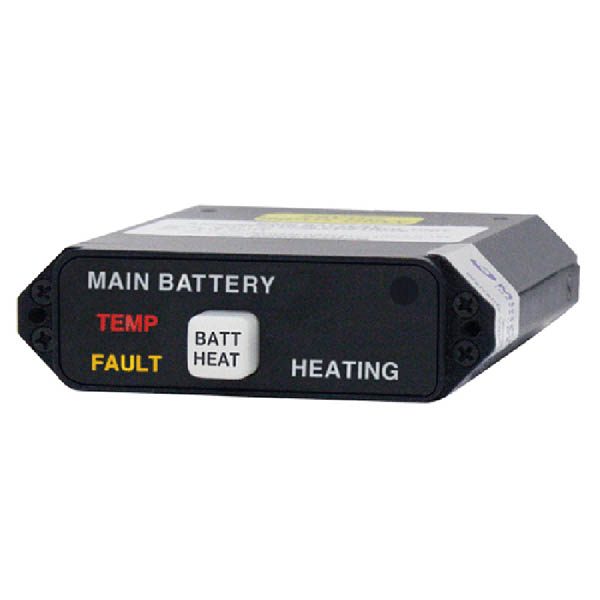

The MD41-1844 is a compact, self-contained Annunciation Control Unit (ACU). The fully integrated control unit provides annunciation for True Blue Power TB44 battery systems. It combines the necessary functions and annunciations required to interface with an approved system.

Features

  • 28 VDC, 0.15A power input
  • Weight – 0.26 lbs
  • Long-life LEDs used for all lighting
  • Internally backlit selection switch
  • Daylight readable, deadfront inactive annunciations and automatic dimming
  • External dimming adjustment provided for balancing low-level light conditions
  • Designed and built in Wichita, Kansas, USA

Specifications

  • Model Number: MD41
  • Part Number: MD41-1844
  • Power Input: 28 VDC, 0.15A
  • Lighting: 28 VDC input LEDs
  • Dimming: Automatic
  • Weight: 0.26 lbs (0.12 kg)
  • Temperature: -55°C to 70°C (-67°F to 158°F)
  • Altitude: 55,000 feet
  • Connector: MCI P/N 7014517
  • Mounting: Rear instrument panel mount
