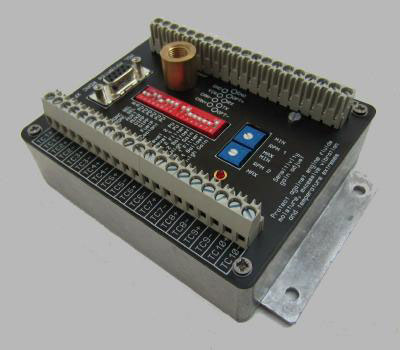

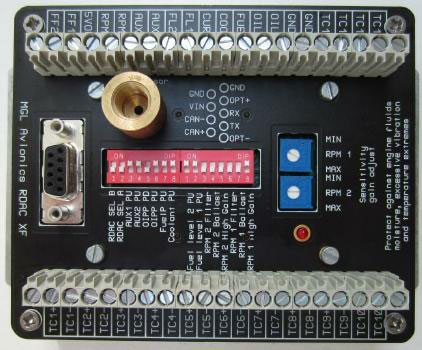

MGL RDAC XF Engine Monitor Module
- JUMP TO
- Overview
- Documents
- Reviews
- Q&A
- View in Catalog
Overview
|
The RDAC XF is the Engine monitor module used with Ultra, Enigma, Odyssey, Voyager and all iEFIS instruments. Available in two versions, the RDAC XF is the base version and the RDAC XF MAP adds a precise silicon manifold pressure sender (usuable for any pressure in the 0 to 2.5 Bar (30psi) range (non aggressive gases or liquids only). The RDAC XF provides an optically isolated communications interface compatible with all existing MGL EFIS systems. In addition it provides a CAN bus interface used with iEFIS systems. Further to this a RS232 interface is provided allowing thrid party (OEM) use of the RDAC system. The RDAC XF provides up to 12 channels for thermocouple sensors (EGT,CHT), channels dedicated to NTC temperature and other probe types, oil and fuel pressure, fuel levels, dual fuel flow and dual RPM, manifold or boost pressure (RDAC XF MAP only) The RDAC XF replaces the long running RDAC XB, XD and XE versions with a more flexible, yet sturdy design in a strong, cast aluminium bulkhead mount device. |
Documents
Reviews
Mgl offers great customer support diagnosed my problem five stars
Verified Purchase
MGL Rdac Xf 12 Thermocouple Channels
Nice to not have to run a bunch of wires from the dash to the engine compartment. Worked as described,
Verified Purchase
MGL Rdac Xf Map 12 Thermocouple Channels With Map
ok
Verified Purchase
MGL Rdac Xf Map 12 Thermocouple Channels With Map
Q&A
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
According to the manufacturer documents, it can do either. It is a matter of how it is calibrated. "Message to send to RDAC to change calibration of MAP sensor. $05 $02 $85 VALLOW VALHIGH CHKL CHKH Checksums are calculated as with messages sent by RDAC. Value to send is required calibration value as signed 16 bit offset (ADC value)"
Yes there is RS232 protocol on the RDAC units. For any questions on the interface please contact MGL direct.
The MGL RDAC XF Engine Monitor module weighs less than 1 pound.
Yes, the RDAC mounts on the engine side of the firewall. There is no protection, MGL recommends fabricating a box over the unit to prevent water damage.
Yes, we do stock this item. Please select the model you need and add to your cart to see current inventory status.
The price is for the unit only, does not include any senders or transducers.
2 amp.
Yes, the unit has the capability to be used on these units, but the installer must consult with the manufacturer for instructions to do so. You can reach them at support@michiganavionics.com.
Per MGL Open or Closed loop will work but Closed loop is better for interference rejection and current changes.
