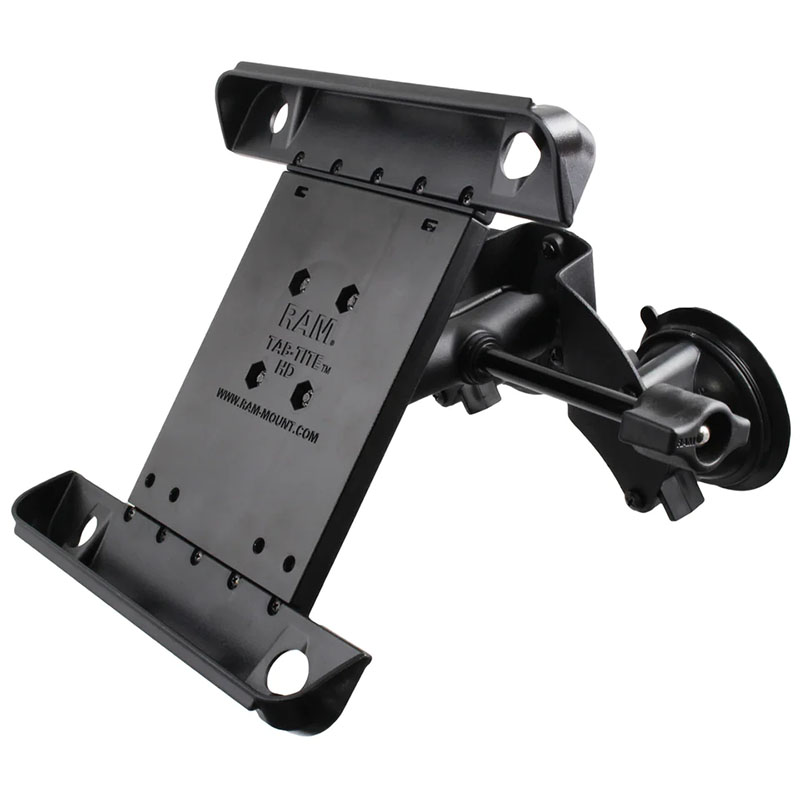

Ram Tab-Tite Suction Mount for iPad Gen 1-4 Extension Retention Knob

0 Reviews 1 Answered Question
$199.75/Each
Quantity
Add to Wishlist
Part# 11-19483
MFR Model# RAM-B-189-TAB3-ALA1-KRU

Overview

The portability and versatility of RAM suction cup mounts is second to none. With a hold so firm it's as if your tablet was hard mounted, this double suction cup system will be a must have for your tablet EFB solution. With a twist lock feature for easy installation and removal of the mount, this go anywhere product is the perfect tablet accessory for any pilot, both private and commercial. With a wide range of tablet cradles, you are sure to find the product that is right for your configuration. For safety, accessibility, and ease of adjustment for perfect viewing angles, you'll find nothing compares to the design of our patented double socket arm. Renowned for its simplicity and ease of use, this elegant design is just one of many features that sets RAM apart. RAM may not give you wings, but we'll certainly help you take flight. The Tab-Tite™ cradle is compatible with any tablet that will fit the dimensions listed below. It is important to verify the dimensions of your tablet when determining the overall size.

Specifications

  • Hardware Included: Assembly Hardware
  • Holder Dimensions:
  • Height Range: 8.5" - 11.125"
  • Width Range: 6.38" - 7.75"
  • Depth Range: .13" - .56"
  • Suction Size: (2) 3.3" Diameter Bases, Total Width 7.95"
  • Socket to Socket Length: 3"
  • Ball Size: B Size (1")
  • Weight Capacity:
  • Standard Use: 2 lbs
  • Heavy-Duty Use: 1 lb
  • Materials:
  • Powder coated steel
  • Marine-grade aluminum
  • High strength composite
  • Packaging Type: Poly Bag
  • Weight: 1.66 lb

Compatability Devices

  • Apple
  • ASUS
  • Dell
  • HP
  • Lenovo
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Submit a Review

Q&A

Submit

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Would an iPad Air 5 (10.9) fit in this?

Yes, this will fit a tablet up 11.125 tall and 7.75 wide.
