RAM Double Socket Short Arm with Diamond Plate RAM-B-103-A-238U

1 Review 0 Answered Questions
$32.50/Each
Quantity
Add to Wishlist
Part# 11-19223
MFR Model# RAM-B-103-A-238U

Overview

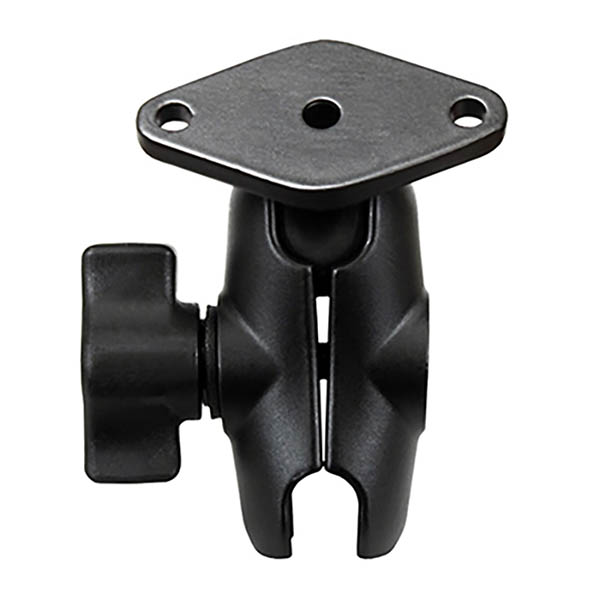

The RAM-B-103-A-238U consists of a diamond base and SHORT double socket arm that will accept 1" ball bases. The diamond base measures 2.43" x 1.31" and contain two holes 1.912" from center to center, positioned at both ends of the diamond base. The hole pattern found on the diamond base will connect to many RAM cradles, as well as third party cradles including mounts with the industry standard AMPS hole pattern. Designed into the mount is a 1" diameter patented rubber ball and socket system with adjustment points at both ends of the socket arm; this with a twist of the arm knob allows for you to maneuver the mount to your optimum viewing position.

Features

  • Diamond plate features industry-standard 2-hole AMPS hole pattern; connects to a variety of RAM device holders
  • Includes B size short length RAM double socket arm; ball and socket technology allows for near-infinite adjustability
  • Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty

    • Specifications

  • Socket-to-Socket Length: 1.75"
  • Materials: Marine-grade aluminum
  • Ball Size: B Size(1")
  • Plate Size: 2.43" x 1.31"

    • Documents

    • Accessories
    • Frequently Purchased With
    • Customers Also Viewed
    • Related Items

    Reviews

    Submit a Review

    Worked perfectly

    Danny H Verified Purchase

    RAM Double Socket Short Arm With Diamond Plate
    December 5, 2023
