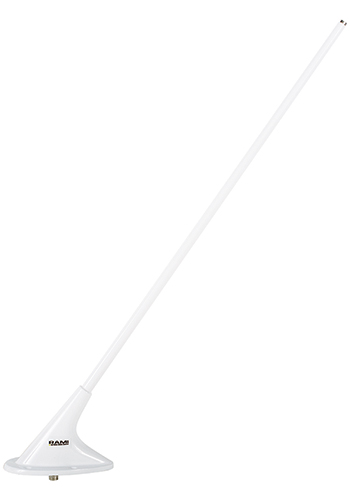

RAMI AV-401 Antenna - Fiberglass Rod Whip

$589.00/Each
Quantity
Add to Wishlist
Part# 11-14041
MFR Model# AV-401

Overview

The Rami AV-401 ELT antenna is a passive three frequency fiberglass rod whip antenna, designed for low speed aircraft (up to 350 knots).

121.5, 243 & 406 MHz. 50 Ohms, BNC connector

Specifications

  • Model: AV-401
  • Application: Airborne ELT
  • Frequency: 121.5, 243 & 406 MHz
  • Impedance: 50 Ohms Nominal
  • VSWR: 2.0:1 Max at 121.5 MHz, 2.5:1 Max at 243 MHz and 1.5:1 Max at 406 MHz
  • Polarization: Vertical
  • Pattern: Omni-Directional
  • Connector: “BNC” Female
  • Max Height: 15.25"
  • Base Width: 4.40"
  • Max Weight: .36 lbs
  • RF Power Capacity: 10 Watts CW

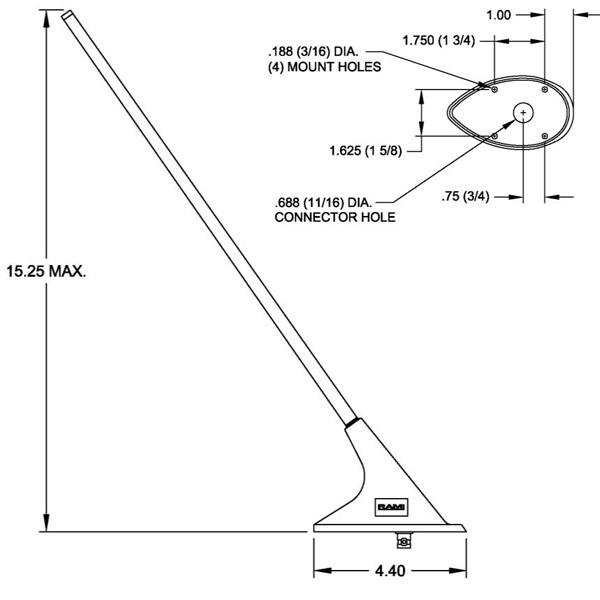

Drawing
