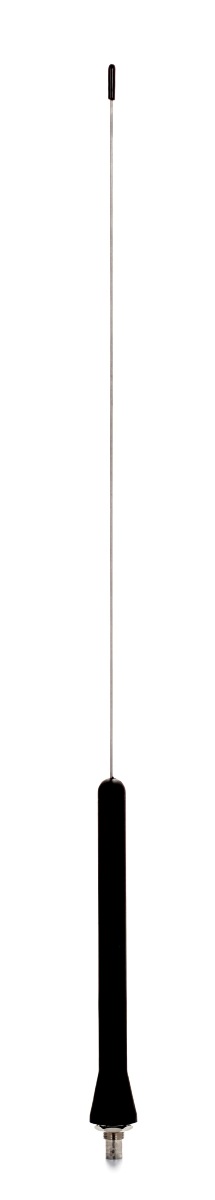

RAMI AV-100 ELT Antenna

$407.00/Each
Quantity
Add to Wishlist
Part# 11-10839
MFR Model# AV-100

Overview

This FAA/TSO antenna is intended for use with an ELT (Emergency Locator Transmitter) for general aviation. It has a passive two frequency wire whip, designed for low speed aircraft (up to 250 knots).

Frequency: 121.5 MHz, 406 MHz

Specifications

  • Application: Airborne ELT
  • Frequency: 121.5 MHz, 406 MHz
  • Impedance: 50 Ohms Nominal
  • VSWR: 121.5 MHz 2.0:1 Maximum
  • 406 MHz 1.5:1 Maximum
  • Polarization: Vertical
  • Pattern: Omni-Directional
  • Connector: "BNC" Female
  • Weight: 3 oz. Maximum
  • FAA TSO: C126a
  • Color: Black

Reviews

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What is the length of the RAMI AV-100 ELT Antenna?

It is 13.75" long.

Q: How wide is the base of the RAMI AV-100 ELT antenna at its widest point?

At its widest point (the bottom sleeve), the AV-100 is .600 wide.
