Overview

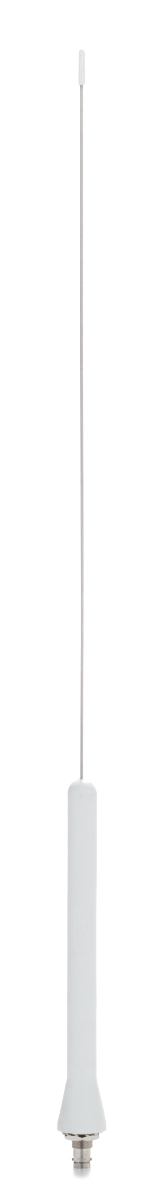

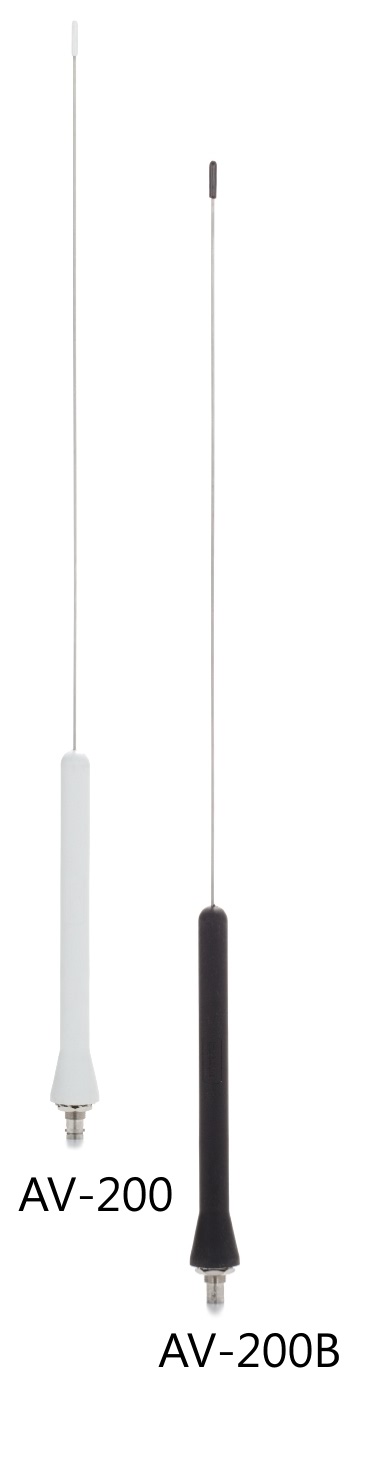

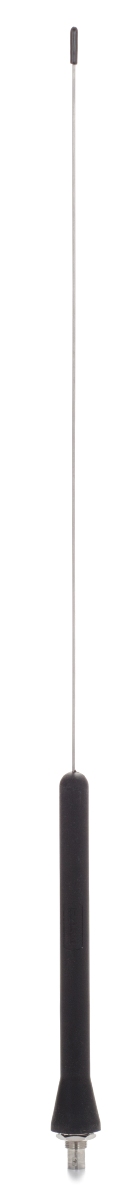

| The AV-200 ELT antenna is: Whip type, 121.5 and 406 MHz and intended for use with an ELT (Emergency Locator Transmitter) for General Aviation. It is a passive two frequency wire whip, designed for low speed aircraft (up to 250 knots). |
Specifications
- Application: Airborne ELT
- Frequency: 121.5 & 406 MHz
- Impedance: 50 ohms nominal
- VSWR: 2.0:1 Max at 121.5 MHz 1.5:1 Max. at 406 MHz
- Polarization: Vertical
- Pattern: Omni-Directional
- Connector: BNC Female
- Max Weight: 3 ounces
- Max Height: 24 inches
- RF Power Capacity: 10 watts CW
Reviews
Excellent
Verified Purchase
RAMI AV-200B 406 121.5 Mhz Whip Antenna TSO
Nice antenna, appears well made and easy to install.
Verified Purchase
RAMI AV-200 Whip Antenna TSO
The RAMI antenna is great, please note the AV-200 coax cable connection needed is Male BNC. Depending on the connection to the ELT- most being a Male BNC, you may need to purchase replacement coax cable (BNC Male to BNC Male- keep in mind the length and Ohm requirements in your aircraft)
Verified Purchase
RAMI AV-200 Whip Antenna TSO
This antenna was a direct replacement for the original and took about 5 minutes to install and test.
Verified Purchase
RAMI AV-200B 406 121.5 Mhz Whip Antenna TSO
good product
Top Quality product.
ok
Great looking antenna with a lifetime warranty from RAMI. Easy install! Looks great on the Bonanza!
Q&A
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Per RAMI: Yes, this will work with the E-01 ELT.
No, use the RAMI AV-300 part number 11-07995 which has all three frequencies.
We do not recommend painting any part of the antenna.
No, ELTs are certified as kits with a specific antenna. You unfortunately cannot interchange antennas.
The AV-200b will physically function with an AK-451, however, it is not on the TSO for that ELT unit.
No, ELT's are certified as kits with specific antennas. Unfortunately you cannot interchange antennas.
Yes, the Artex 345 uses this same antenna.
Yes, this antenna is compatible per the installation manual.
The AK-451 does not have any certification as that ELT has been discontinued.
Please use 11-10465 for the ACK ELT.
