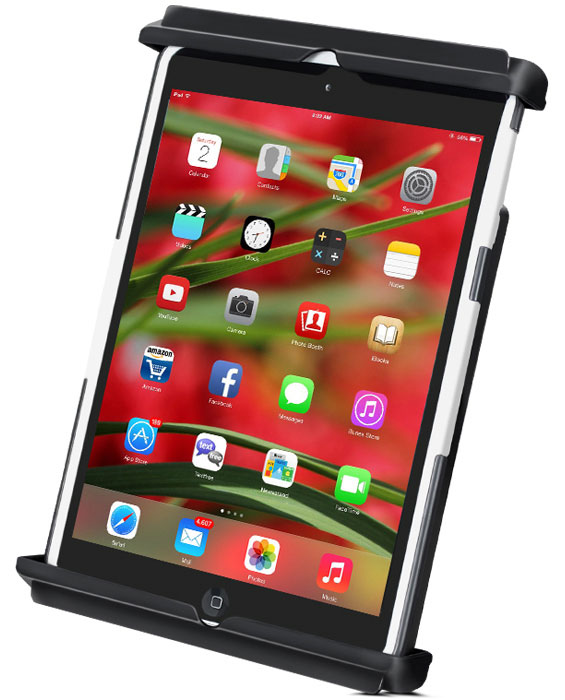

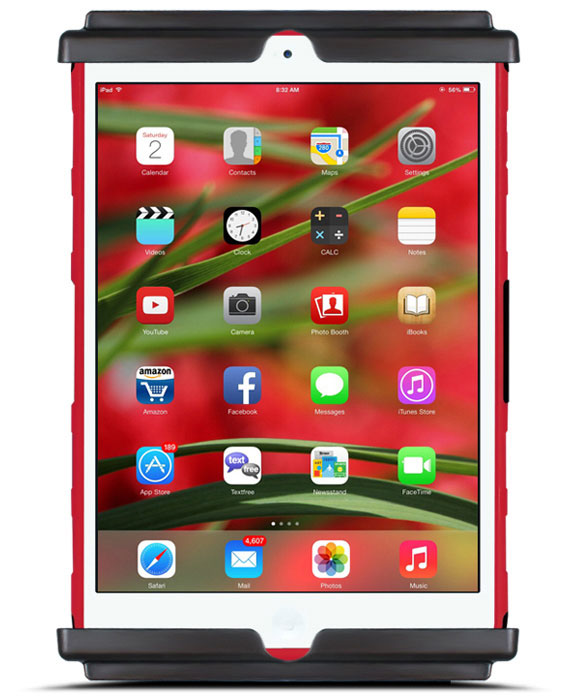

RAM iPad Mini Universal Tablet Holder With Case
MFR Model# RAM-HOL-TAB12U
Overview
|
The RAM-HOL-TAB12U consists of a spring loaded back plate and custom support cups for the iPad mini WITH skin, sleeve or case. The spring loaded design makes it easy to load and unload your tablet, along with keeping it secure while on the go. Interchangeable cup ends are designed to optimize the functionality of your tablet, allowing access to audio jacks, usb, power, and other ports, your tablet can be used just as it was intended. Perfect for stationary or on the go applications, the RAM-HOL-TAB12U is just what you need to get the most out of your tablet. Material: High Strength Composite |
Features
- Support cups contain open slots to accommodate for tablets of various sizes
- Back plate can support various size support cups
- Spring loaded tension provides secure support for your tablet
- Spring loaded cradle allows for quick release of your tablet
- High strength materials maximize longevity of cradle
- Full access to all ports
- Lifetime warranty
Specifications
- Height: 6.80" minimum to 9" maximum
- Width: Maximum width to 5.68"
- Depth: 0.125" minimum to 1" maximum
Compatible Devices
- Apple iPad mini WITH CASE, SKIN, SLEEVE
- Apple iPad mini (with Retina display) WITH CASE, SKIN, SLEEVE
- The Tab-Tite™ cradle is compatible with any tablet that will fit the dimensions listed below. It is important to verify the dimensions of your tablet when determining the overall size.
Reviews
A robust product, perfectly fit for purpose.
Verified Purchase
RAM iPad Mini Universal Tablet Holder With Case
I have an iPad Mini 5 in a Unicorn Beetle Pro case holder and it fits perfect in this holder. It seems like the screws that hold the ends on when you assemble the holder go into slotted holes in a manner that would allow the ends to come off if the screws loosened. Also I ordered the RAM adapter 2 1/2 round 1 ball (11-07069) and in order to put this on I had to procure longer screws than were included in order to attach it. Perhaps I ordered the wrong adapter. Not sure but it works fine with the longer screws. This tablet holder has the recesses for the nuts on the same side as the adapter ball goes so serve no purpose other than to require the use of the longer screws. I installed this in a Bonanza with the dual yoke and it is easy to see from both left and right seats and quickly adjustable for direct viewing from either seat.
Verified Purchase
RAM iPad Mini Universal Tablet Holder With Case
It functions ok, but it should include the ball for mounting.
Verified Purchase
RAM iPad Mini Universal Tablet Holder With Case
Perfect for iPad Mini 6. You can leave the case on it and no problem charging in flight.
Verified Purchase
RAM iPad Mini Universal Tablet Holder With Case
This is the best holder for my I-pad mini as it will hold it without removing the cover. I no have one for each aircraft. Very versital and easy to position.
Verified Purchase
RAM iPad Mini Universal Tablet Holder With Case
It fits verywell on 8 samsung with protected case
Verified Purchase
RAM iPad Mini Universal Tablet Holder With Case
excellent - meets my needs completely
Verified Purchase
RAM iPad Mini Universal Tablet Holder With Case
Q&A
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Yes, the yoke mount to order would be part # 11-00484. You will also need an arm and adapter to connect the device holder to the yoke mount. If you search "Ram Builder" on our website you can use our selector system to put the kit together that you need.

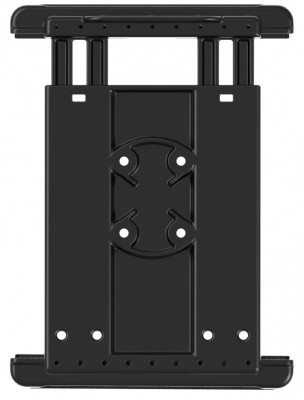

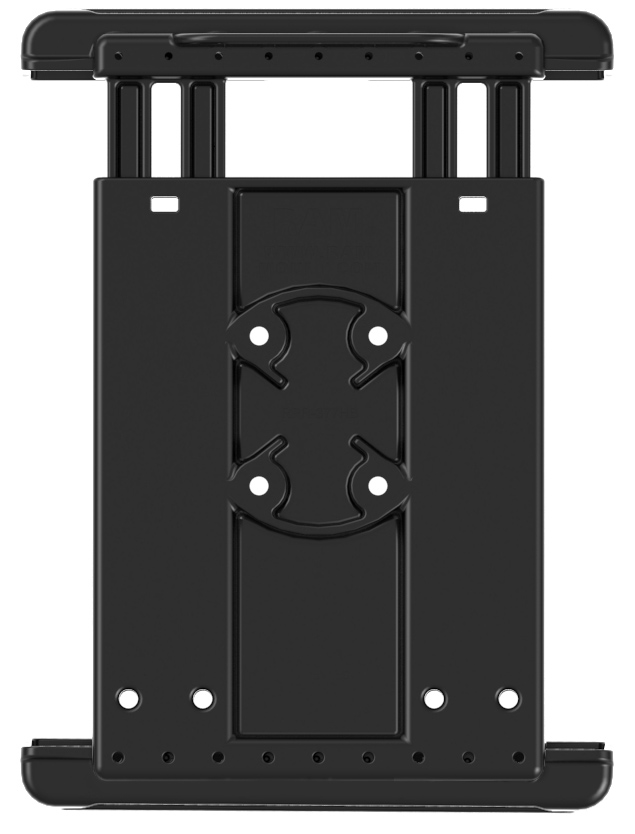

The ram iPad mini holder has a rear mounting bracket with a distance of 1.91" from center to center.
Please measure your iPad with case to confirm the following dimensions before ordering:
Height: 6.80" minimum to 9" maximum | Width: Maximum width to 5.68" | Depth: 0.125" minimum to 1" maximum
Both the 2 screw adapter and the 4 screw adapter can be used. If you have the 4 screw adapter, our part # 11-07069 it will work just fine.
Yes that will come with screws and nuts to attach the ball mount.
Yes, it works in both landscape and portrait.
Either one would work, the holes are spaced the same on both mounts. We would recommend going with the 4 hole mount just to have the 2 extra screws holding it together.
