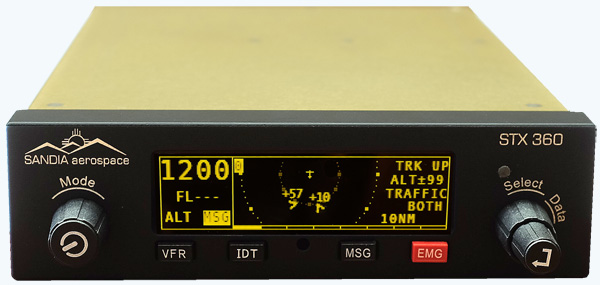

Sandia Stx 360 Sentinel Panel Mount ADS-B Transponder

$4551.00/Each
Quantity
Add to Wishlist
Part# 11-14705
MFR Model# 306430-00

Overview

The STX 360 Sentinel is a 978 MHz UAT ADS-B unit with a built-in Mode A/C transponder. The STX 360 can easily be installed in the same space as an existing transponder, simplifying the installation. The STX 360 has an internal diplexer that allows both the transponder and the UAT to share a single antenna. Because it is a combination unit, there is a single point of entry for the squawk code which eliminates the possibility of reporting two different codes. The STX 360 provides a traffic display, METARs and status on its sunlight readable OLED display. With its wireless output capability, the STX 360 can also display weather and traffic on portable devices such as an iPad or tablet.

The SANDIA STX 360 accepts position data from WAAS GPS position source such as the FREEFLIGHT WAAS/GPS 1201, the GARMIN 430W, 530W. SANDIA STX 360 will accept a WAAS position source that has RS 232 or RS 422 interface. ​We also accept WAAS GPS Information from the MGL and GRT Product lines.​

Features

  • UAT ADS-B In and Out
  • Pilot Selectable Anonymous Mode
  • Built-in Mode C Transponder
  • Built-in Diplexer – Single UAT/Transponder Antenna
  • Enhanced Visual Acquisition Traffic Display
  • Display of METARs
  • Single Entry for Squawk Code
  • Wireless iPad Weather, Traffic, and FIS-B
  • Fits Existing Transponder Panel Dimensions
  • Remote Options

Specifications

SANDIA STX 360 Panel Mount ​accepts attitude data from altitude encoders:
  • Air-Data (RS-232)
    • Icarus Format
    • Garmin G Format
  • SANDIA SAC 7-35 [Air Data Computer]
  • SANDIA SAI 340 [Altitude Indicator]
  • Air-Data (ARINC-429) ​, The STX 360 panel mount unit performs the following functions:
  • UAT ADS-B In and Out [XMT power 42dBm, RCV sensitivity -93dBm]
  • Built in Mode C transponder [XMT power 53.4dBm, RCV sensitivity -74dBm]
  • Built in Diplexer [single antenna installation]
  • Display of traffic
  • Display of METARs
  • Single Entry for squawk code
  • Built in Ethernet
  • USB power - +5VDC @ 500mA
  • Automatic and Manual Brightness Control (%)
  • Display of aircraft powering
  • Anonymous mode in VFR
  • Built in emergency squawk codes
  • Pass-thru TIS-B, FIS-B, ADS-B state and vector messages
  • Tray Mounted
  • Frequently Purchased With
  • Customers Also Viewed
  • Related Items

Reviews

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Will this Sandia STX 360 ADS-V transponder function with Foreflight? Garmin Pilot? What other apps? Is it bluetooth or WiFi compatible?

PER SANDIA: The STX360 will work with several applications. Foreflight and Garmin pilot have yet to be interfaced with. It is Bluetooth and will be available in November 2017.

Q: Is the Sandia STX360 panel mount ADS-B transponder and does it have a internal GPS?

The unit is TSOd, but requires connection to a WAAS GPS position source.

Q: Does the Sandia STX 360 need an altitude encoder?

Yes, this transponder does require an altitude encoder. The ACK or Trans-Cal encoders are recommended.

Q: Does this Sandia STX 360 panel mount require service center install? Also, is this STCd for Cessna 182?

An A&P can install this but will need to perform flight testing but STC documentation or install manuals are not available yet. This is not STC'd for a Cessna 182 at the moment.

Q: Does this part come with harness and tray etc? I have a comant VHF (CI-121) antenna and am wondering if it will work with the Sandia STX 360 Panel Mount?

The STX 360 will come with the tray and connector kit. The CI-121 is a COMM antenna and can not be used with the STX 360 transponder.

Q: Is this product currently under test or is it being sold and installed already?

This product is available for purchase now.
