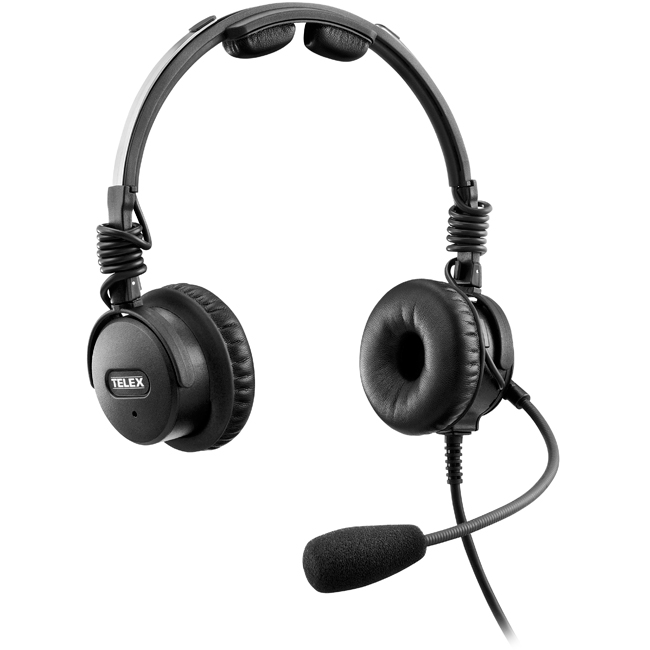

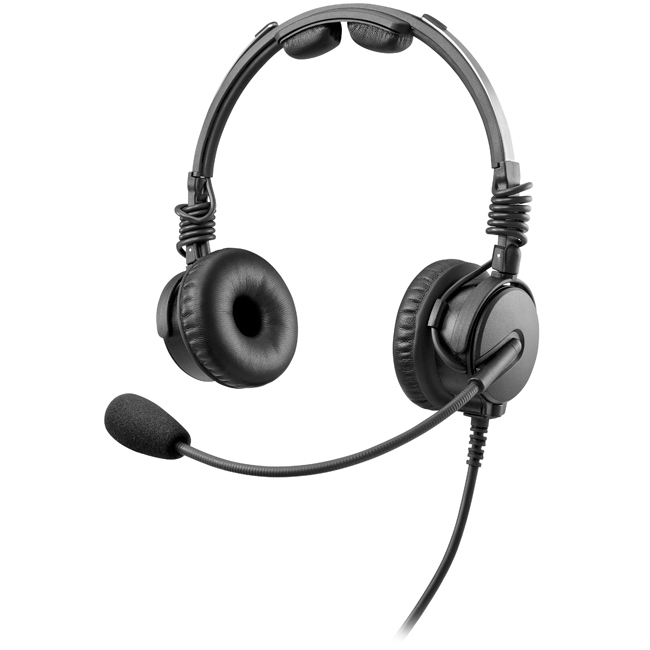

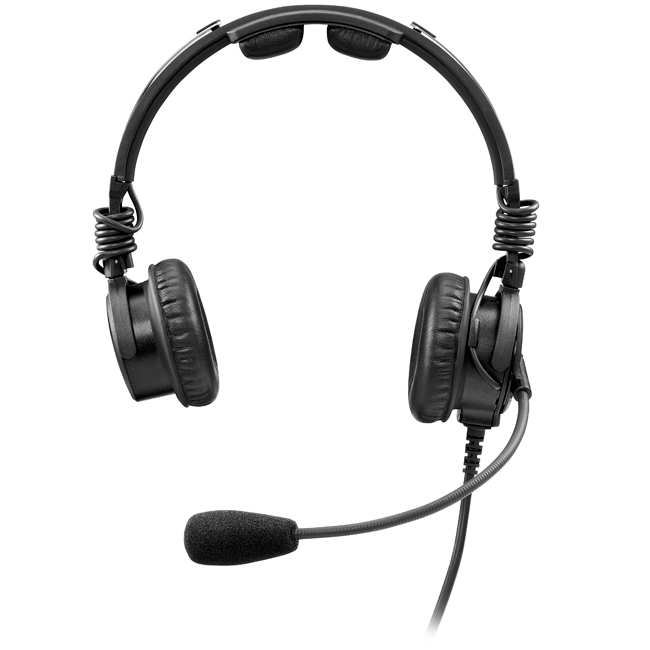

Telex Airman 8 ANR Headset Airbus XLr-5 Plug 600 Ohm
MFR Model# AIRMAN8-0211
Overview
|
Sound Quality The Airman 8 features a high-quality amplified electret microphone for clear voice transmission. Improved ANR and microphone noise cancellation ensures superior in-flight communication. Active Noise Reduction The Airman 8 headset features enhanced ANR (Active Noise Reduction) with even more noise reduction, helping to improve intelligibility and reduce fatigue. The position of the ANR switch has also moved to the forward-facing ear cup side, making it easier to reach the switch without having to remove the headset. A unique feature of the Airman 8 is that it is powered from its microphone system, eliminating the need for batteries or special connectors. Durability A strong stainless steel headband with metal pivots improves durability for long headset life. The new microphone boom design provides stronger rotation stops, utilizing the full diameter of the ear cup. Furthermore, a pre-coiled overhead cord has been added to extend the useful life of the headset. The main headset cord is also more robust and features an improved design of the band relief on the ear cup entrance. Comfort and Fit The soft headband pad and lightweight design provides comfort, even on long flights. An added yoke provides enhanced comfort by allowing ear cup movement in all directions. Furthermore the Airman 8 comes with replaceable ear cup covers and leatherette ear cushions. Safety Improvements An acoustic limiter protects users against sudden increases in sound levels FAA TSO Approval The Airman 8 headset is fully FAA TSO C-139a compliant. ARINC standards The Airman 8 is fully compliant to ARINC (Aeronautical Radio, Incorporated) requirements. |
Specifications
- Color: Black and stainless steel
- Cord Length: 6 ft (1.8288 m) [ +/-4in (+/-10cm) ]
- Ear Seals: Leatherette
- FAA TSO Approvals: C-139a approved
- Frequency Response: 350-3500 Hz (per RTCA DO-214a)
- Impedance: 150-600 Ω Ω
- Microphone Frequency Response: 100 – 10000 Hz (per RTCA DO-214a)
- Microphone Sensitivity: -28 dBV/Pa
- Microphone Type: Noise-canceling amplified electret
- Power: via boom microphone connection or XLR pin 5
- Power Requirements: requires boom microphone to be powered continuously or power from aircraft via XLR
- Speaker Sensitivity: 92 +/- 5 dB SPL/mW (per RTCA DO-214a)
- Type: Dynamic
- Weight: 4.2 oz (119.07 g) (wearing weight)
Q&A
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
No. The Telex Airman does not include a headset bag.
Yes, the Airbus A320 is most commonly outfitted with the single XLR-5 plug style.
