Trig 2020 ADS-B Bundle

$5677.00/Each
Quantity
Add to Wishlist
Part# 11-16299
MFR Model# 02016-00

Overview

Many pilots are equipping with ADS-B and Trig provides solutions for both certified and uncertified aircraft owners. Trig’s 2020 ADS-B Bundle, for light-sport, experimental and home builders. Trig’s ADS-B kit contains all the certified components needed to allow flight in 2020 rule ADS-B airspace for these aircraft types.

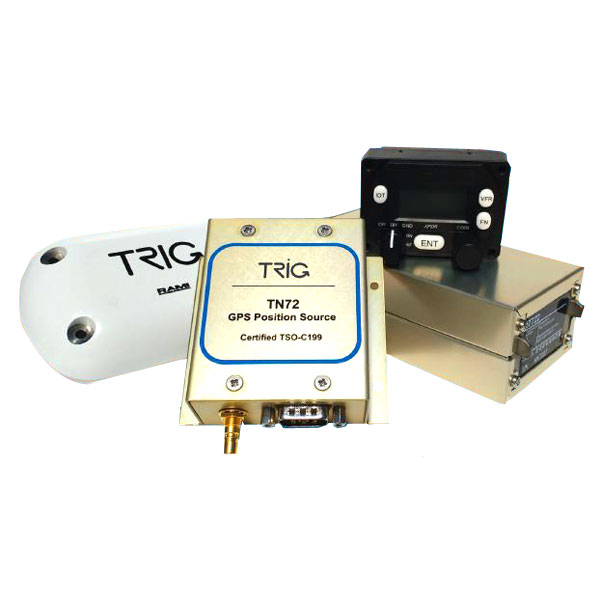

The ADS-B Bundle features; Trig’s highly popular TT22 compact transponder, the latest TN72 X GPS Position Source (certified to TSO-C199) and the matching TA70 GPS antenna. This provides a fully compatible ADS-B Out solution that meets the requirements of FAR 91.227 for light-sport and experimental aircraft. Customers will save by purchasing the bundle over the regular price.

All Trig products are supported by a two year warranty (from date of installation) and U.S. based technical support.
  • Accessories
  • Frequently Purchased With
  • Customers Also Viewed
  • Related Items

Reviews

Exactly as ordered still awaiting install as I am building the Gyro but it is nice and compoacy and you can get a loom that is 108 inches long for it

Scott D Verified Purchase

Trig ADS-B Bundle TT22 TN72 TA70

August 16, 2024

This product is perfect for Pitts aircraft where you have limited space.

B&c Q Verified Purchase

Trig ADS-B Bundle TT22 TN72 TA70

December 18, 2021

Kit very well packaged and included all manuals and parts required for the installation. Excellent!

Steve B Verified Purchase

Trig ADS-B Bundle TT22 TN72 TA70

August 3, 2021

I ordered this for me to install myself in an experimental Christen Eagle. I also ordered the small, 1 square antenna TA-50 and the wire bundle from Spruce. Spruce sales didnt know they made wire bundles. I ended up mounting the two transponder components inches from one another. I had way too much wire. The older transponder antenna connection was not a match. I had to order an adapter. The TA-50 connector is a push on fitting into a receptacle with threads. Just push it on firmly until you hear a click. Dont let the threads fool you and cause you to try three times like me. I had to get clarification from the factory on how to set up the transponder. They were very helpful. Having said all of this, the system is awesome. The price is very good. You install it, plug it in, connect a hot lead and ground, and it works!!!

John L
March 2, 2021

High quality product with excellent hardware and connection package

Jesse
April 26, 2020

Kit is excellent. The TN72 QMA connector was missing the center pin in the package. I called tech support and left a message and have not received a call back in over a week. Review is for poor service, not the product.

Chris M Verified Purchase

Trig ADS-B Bundle TT22 TN72 TA70

February 11, 2022

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Does this Trig 2020 ADSB kit come with all the required cables and connectors?

Per Vendor: The kit includes: 1ea. TN72, 1ea. TA70 and 1ea. TT22. All three of these items are complete with install kits.

Q: Does this Trig 2020 ADSB bundle require an altitude encoder, like a ACK or Trans-Cal?

The TT22 has a build in encoder.

Q: Do I need to purchase a transponder antenna and cable for this Trig 2020 ADS-B kit?

No. You will need to purchase a coax cable and a transponder antenna separately with this bundle.

Q: I just want to clarify that this kit does not comply with ADSB regs for certificated aircraft. Is that correct? You would need a different GPS direction source to comply? Is there a complete kit for certificated aircraft?

Correct, this system is for experimental aircraft. for certified version please view p/n: 11-14872.

Q: Does this Trig 2020 ADS-B bundle provide wifi connection to Ipads to provide data for EFB programs?

No, this bundle is only for ads-b out. You will need a portable ads-b in solution, such as the Stratus 3.

Q: Does the Trig GPS antenna provide a compatible GPS signal for the Garmin AERA 560? If yes, can the Trig GPS antenna provide that signal to both the TN72 GPS and the AERA 560 simultaneously?

No the Trig GPS antenna is not a compatible external GPS antenna for the Aera 560. Only the Garmin GA25 or GA27 antennas are recommended by Garmin for the Aera 560.

Q: Does the Trig T22 ADSB bundle come with 4 ft wiring harness?

No, it does not.

Q: Do you have to buy and install an airspeed switch to be legal with this Trig 2020 bundle?

Per the manufacturer there is a software update that allows the unit to be installed without the airspeed switch.

Q: Can I use the WAAS GPS position signal (GPS only) to feed an iPad? Is the Transponder compatible with the Advanced Aircraft Electronics inside mounting antenna?

No, the WAAS/GPS antenna that comes with this kit is for the ADS-B out solution only.

Q: Which transponder antennas are approved for install with this bundle for ADS-B out? For example, will the comment CI 101 or the RAMI AV-22 antennas work for ADS-B out with this bundle?

Either of the mentioned antennas can be used for this install.
