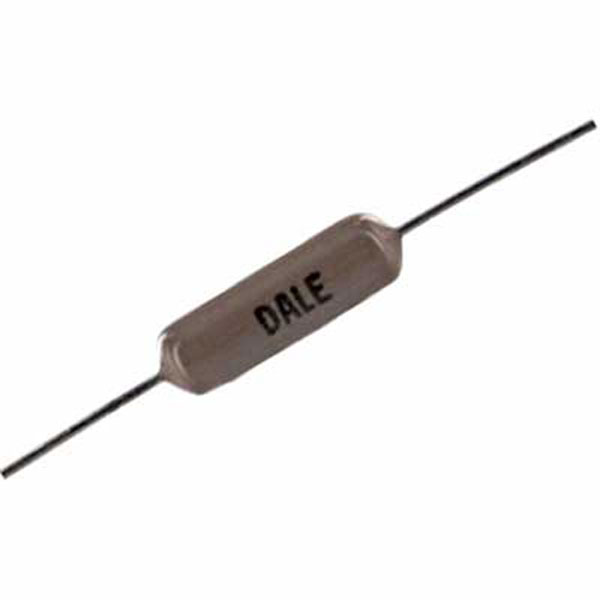

Vishay Dale Resistor - Metal Film - 15 0Hms

1 Review 0 Answered Questions
$1.02/Each
Quantity
Add to Wishlist
Part# 11-17265
MFR Model# RN65D15R0FB14

Overview

Vishay Dale Resistor 15 OHMS Metal Film.

Note: For Garmin G5 Certified Aircraft.

Features

  • D Characteristic
  • Small Size
  • Very Low Noise
  • Very Low Voltage Coefficient
  • Controlled Temperature Coefficient
  • Excellent High Frequency Characteristics
  • Flame Retardant Epoxy Conformal Coating
  • Fire-Cleaned High Purity Ceramic Core with Vacuum-Deposited Nickel-Chrome Alloy Element
  • Standard Lead Material Is Solder-Coated Copper
  • Leads Are Solderable and Weldable
  • Resistance Shifts Due to Storage at Room Temperature Are Negligible

Specifications

  • Product Attribute: Attribute Value
  • Series: Military MIL-R-10509/2 RN65 Series
  • Dielectric Strength: 450 VAC
  • Dimensions: 0.562" ± 0.031" Body L x 0.180" ± 0.015" Body Dia.
  • Length, Lead: 1.50 ± 0.125 in.
  • Package Type: Axial
  • Power Rating: 0.5 W
  • Resistance: 15 Ohms
  • Operating Temperature: -65 to +165 °C
  • Termination: Axial Leads
  • Tolerance: ±1 %
  • Element Material: Metal Film
  • Diameter, Lead: 0.025 ± 0.002 in.
  • Packaging: Bulk
  • Temperature Coefficient, Resistance: ± 100 ppm⁄°C
  • Voltage Rating: 350 VDC
  • Power Rating, Test Condition: @ +70°C
  • Special Features: Military
