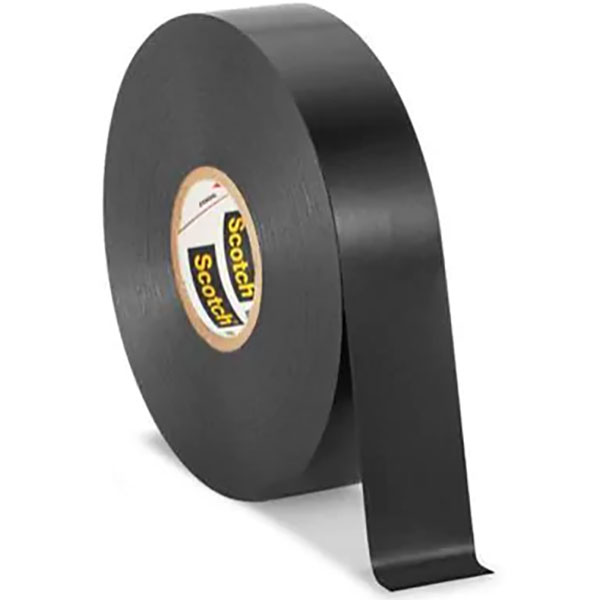

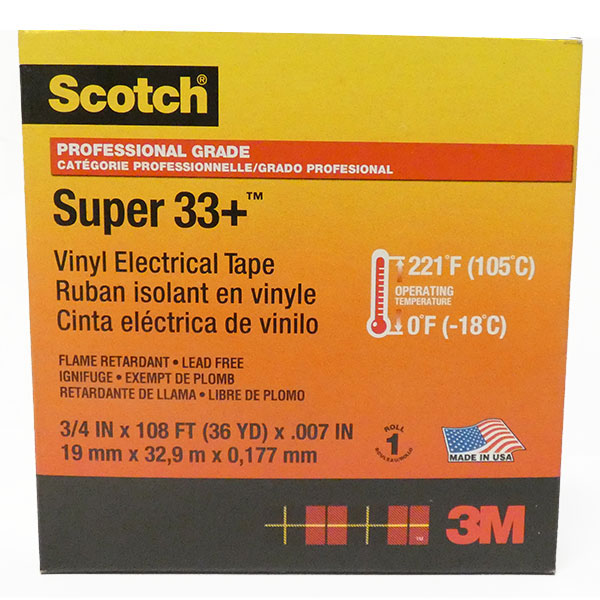

3M™ Super 33 Black Vinyl Electrical Tape
Select Size:
3/4 Inch1-1/2 InchOverview
|
America's #1 professional grade vinyl electrical tape, Scotch® Super 33+™ Vinyl Electrical Tape is a premium grade, 7 mil thick, flame-retardant all-weather vinyl-insulating tape for cable splices up to 600V. It is designed to perform continuously between a temperature range of 0–220°F (-18–105°C). Scotch® Super 33+™ Tape is an abrasion-resistant tape that offers electrical and mechanical protection with the combination of an aggressive, rubber-resin adhesive and an elastic PVC backing. This tape is highly resistant to UV rays, moisture, alkalis, acids, corrosion and varying weather conditions. It is a ideal choice for providing a protective jacket for low- and high-voltage buses, as well as harness cables/wires. This tape is compatible with solid, dielectric cable insulations, rubber and synthetic splicing compounds, as well as epoxy and polyurethane resins. UL Listed, ASTM Approved, CSA Certified and RoHS 2011/65/EU Compliant. |
Features
- The combination of the pressure-sensitive, rubber-resin adhesive and the PVC backing offers electrical and mechanical protection
- Provides high resistance to UV rays, abrasion, moisture, alkalis, acids, corrosion and varying weather conditions
- Tensile strength rating of 15 lbs. per inch meets professional electrical standards
- Compatible with rubber and synthetic splicing compounds
- Made of black durable PVC
- Withstands a temperature range of 0 to 221 degrees F (-18 to 105 degrees C)
- UL Listed, ASTM Approved, CSA Certified and RoHS 2011/65/EU Compliant
Specifications
- Brand: Scotch®, Super 33+™
- Color: Black
- Length: 108 Linear Foot, 20 Linear Foot, 36 Linear Yard, 44 Linear Foot, 52 Linear Foot, 66 Linear Foot
- Length (Metric): 13.4 m, 15.6 m, 20.1 m, 33 m, 6 m
- Product Type: Vinyl Electrical Tapes
- Solution for: Wireless Network: Infrastructure Accessories
- Tape Color: Black
- Tape Length (Metric): 33 m, 6 m
- Tape Type: Electrical Insulating Tapes for Equipment Manufacturing
- Tape Width (Metric): 19 mm, 25 mm, 38 mm, 50 mm
- Thickness: 7 mil
- Thickness (Metric): 0.177, 0.177 mm, 0.18 mm
- Width: 0.75 in, 1 in, 2 in, 38 in
- Width (Metric): 19, 19 mm, 25 mm, 38 mm, 50 mm
Q&A
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Q: Is this 3M™ Super 33 Black Vinyl Electrical Tape approved by the FAA?
No, this tape does not have FAA Approval.
