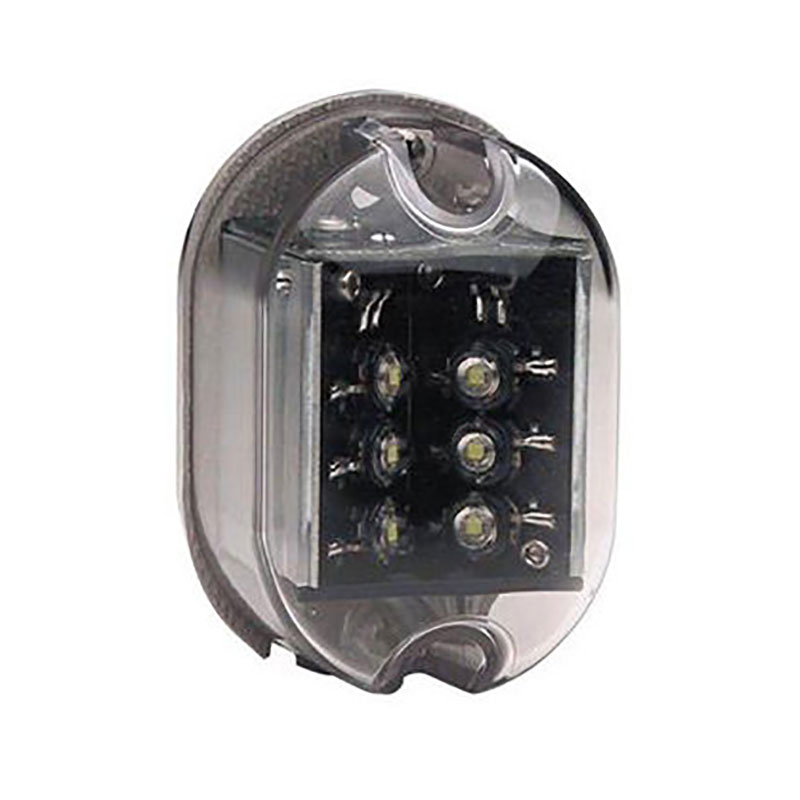

Whelen Tail Position Light - Model 70805 Series
From $42.50 to $886.00
| Mfg Model # | Description | Part No. | Price | Buy |
|---|---|---|---|---|
| 7096600 | 28 VDC - no connectors Note: Replaces 01-0770805-00 (FAA TSO-C30c Type III) | 11-01228 | $792.00 | |
| 7096601 | 28 VDC - connectors, case ground used on Beechjet Note: Replaces 01-0770805-01 (FAA TSO-C30c Type III) | 11-07699 | $886.00 | |
| 70804A30 | Lens, Clear, Hard Coated | 11-18499 | $42.50 |
Overview
| FAA/TSO-C30c Type III approved. The model 70805 series LED Tail Position Light is a high quality, long lasting, modern alternative to incandescent and halogen tail position lights. It offers significant technological upgrades over previous products. |
Features
- Long life - approximately 20,000 hrs.
- Reduced power consumption - compared to alternative light sources.
- Shock and vibration resistant - no fragile filament to burn out.
- Light - produces bright white light.
- No EMI or RFI interference
Specifications
- Weight: 0.3 lbs.
- Exposed Height: 1.64”
- Length:2.6”
- Width: 1.74”
- Power consumption: 0.3 amps @ 28 V
