Home / Electrical / LED Lighting / AeroLEDs /AeroLEDs Polaris LED Nav Bulb FAA-PMA
Main Image

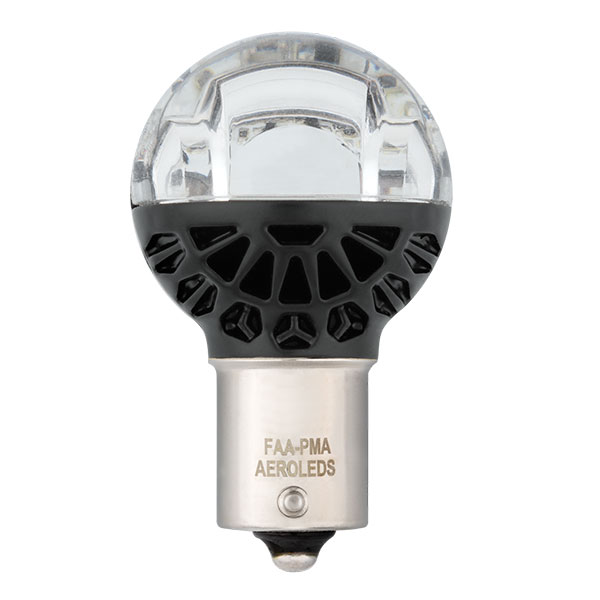

AeroLEDs Polaris LED Nav Bulb FAA-PMA

19 Reviews 8 Answered Questions
Select Voltage:
12 volt24 volt
Quantity
Add to Wishlist

Overview

AeroLEDs is proud to introduce Polaris, an FAA-PMA approved all-LED replacement for the legacy incandescent navigational lamps.

Note: 12v replaces the A7512-12, W1290-14, T7512-12, CMA7512-12, ML7512-12, UA-7512-12, M25309-7512.
24v replaces the W1290-28, T7512-24, CMA7512-24, A7512-24, ML7512-24, 972.72.54.508, MIL-L-6363/2, 6240-01-390-4921, 6240-01-143-8650, MS25309-7512, AN3122-1524, 1524, 040-0046, 753-478.

Features

  • 7 Watts
  • 12V System Part # 11-17571
  • 28V System part # 11-17572
  • Exceeds TSO C-30C Type I & II
  • FAA-PMA approved
  • Bay 15S

Specifications

  • Voltage: 9-18VDC (Part # 11-17571) / 18-32VDC (Part # 11-17572)
  • Current: 0.46A @ 14VDC (Part # 11-17571)/ 0.37A @ 28VDC (Part # 11-17572)
  • Power: 7 Watts / 10 Watts
  • Pulse/WigWag: N/A
  • Synchronization: N/A
  • Lumens: 500 lm
  • Nav Light: Exceeds TSO C-30C Type I & II
  • MTBF: >30,000 Hours
  • Length: 2.0"
  • Width: 1.3"
  • Depth: 1.1"
  • Weight: 1.1 oz
  • Heat Sink Material: Aluminum/Black Powder Coat
  • Lens Material: Clear LSR
  • Mounting BAY15S Socket
  • Temperature Range: -55C to +70C

Benefits

  • 100 X increased life expectancy
  • 75% decrease in power consumption
  • Increased reliability
  • Direct drop-in replacement
  • Installed behind red and green lenses (reducing SKU management)

Documents

  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Submit a Review

I have a 28V test box with a wingtip light assy as a power indicator. Bought one of these to put in place of the incandescent bulb due to heat. So much brighter that I had to wear sunglasses to work around it! Only resolution possible was to buy another one and put them in the A/C along with my new Whelen Tail Anticollision/Nav unit.

Micren D Verified Purchase

AeroLEDs Polaris LED Position Light Bulb 24V
August 3, 2024

Really bright

Micren D Verified Purchase

AeroLEDs Polaris LED Position Light Bulb 24V
July 23, 2024

This fixed my 20 year old problem of the HSI deviating with the nav lights turned on. Good product.

Brent F Verified Purchase

AeroLEDs Polaris LED Position Light Bulb 12V
December 22, 2023

Aeroled Nav Bulbs

Kennith B Verified Purchase

AeroLEDs Polaris LED Position Light Bulb 24V
September 13, 2023

Fit original light perfectly, very bright. Price is a little steep.

Mike C Verified Purchase

AeroLEDs Polaris LED Position Light Bulb 12V
April 22, 2023

Great product. Super bright and drop in replacement

Dreamcraft A Verified Purchase

AeroLEDs Polaris LED Position Light Bulb 12V
April 7, 2023

great

Lloyd V Verified Purchase

AeroLEDs Polaris LED Position Light Bulb 24V
January 24, 2023

Beyond the pricing shock, it works like a champ. I cleaned up the old grimes socket and it installed tight and fit perfectly under the nav lens on my very old cessna. If it lasts as long as claimed, ill be super happy.

Bradley B Verified Purchase

AeroLEDs Polaris LED Position Light Bulb 12V
January 14, 2023

Easy install white under colored lenses. Brighter than original.

Kurt F Verified Purchase

AeroLEDs Polaris LED Position Light Bulb 12V
December 7, 2022

Hopefully the last navigation light Ill replace. One nav light was out, so I got a pair to replace the filament edition. Installation was a cinch, theyre super bright, even behind the colored lens and very cool to the touch after hours of flight...as LEDs should be. So far so good.

Suzanne Verified Purchase

AeroLEDs Polaris LED Position Light Bulb 12V
August 22, 2022

Q&A

Submit

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Are these white colored lamps or separate green/red lamps?

These are white LEDs that you install behind your colored lenses.

Q: Will these lights flash or are they always on steady?

These do not flash. They are steady on.

Q: Are the AeroLEDs Polaris bulbs sold as a pair? or a single bulb.

These are priced and sold each, single bulbs.

Q: Can these be used on a Cessna CItaiton Jet, TurboJet over 12,500lbs?

These bulbs do not have an aircraft specific application chart. It is FAA PMA for certified aircraft, but you would need to confirm with your A&P to determine if it could be legally installed on your Citation.

Q: What is the warranty on these AEROLEDS POLARIS LED NAV BULB FMA-PMA bulbs?

AeroLEDs have a 5 year warranty.

Q: Does the lamp have to be environmentally protected?

This is intended to be installed under a lens with a gasket.

Q: Does AeroLEDs make a replacement for a GE-1777 bulb?

No, they do not have a replacement for the GE-1777.

Q: Will this work for a Mooney Ovation for both wings? The lights are location behind the wing tips.

If you have light assemblies that have replacement bulbs then these should work.
