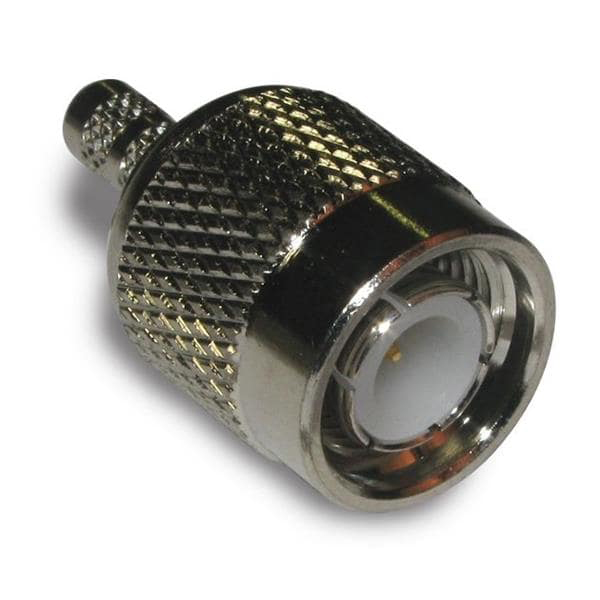

- Photo may represent series and not specific product
- SHARE
Amph enol TNC 400 Straight Plug Standard Cable
MFR Model# 122372
Overview
|
RF Connectors / Coaxial Connectors TNC STRAIGHT PLUG STANDARD CABLE. Amphenol RF TNC Threaded Connector Series are miniature, threaded weatherproof units with a constant 50Ω impedance that operate from 0-11GHz. There are two types of TNC connectors: Standard and Reverse Polarity. Reverse polarity is a keying system accomplished with a reverse interface, and ensures that reverse polarity interface connectors do not mate with standard interface connectors.Many TNC connectors are recognized under the component program of Underwriter's Laboratories and have undergone stringent testing from an independent laboratory. |
Specifications
- Product Category: RF Connectors / Coaxial Connectors
- Manufacturer: Amphenol
- RoHS: RoHS Compliant By Exemption Details
- Product: Connectors
- RF Series: TNC
- Gender: Plug
- Impedance: 50 Ohms
- Maximum Frequency: 11 GHz
- Termination Style: Cable - Crimp
- Orientation: Straight
- Mounting Type: -
- Cable Type: RG-55, RG-142, RG-223, RG-400
- Packaging: Bulk
- Body Finish: Nickel
- Body Material: Brass
- Body Style: Straight
- Brand: Amphenol RF
- Contact Material: Brass
- Contact Plating: Gold
- Contact Termination: Crimp
- Coupling Mechanism: Threaded
- Isolation Type: Not Isolated
- Mating Cycles: 500
- Series: TNC
- Factory Pack Quantity: 1
- Voltage Rating: 500 V
- Unit Weight: 0.493835 oz
Documents
Reviews
Looks fine.
Verified Purchase
Amphenol 122372 TNC Male Rg 400
Quality product.
Verified Purchase
Amphenol 122372 TNC Male Rg 400
Verified Purchase
Amphenol 122372 TNC Male Rg 400
Verified Purchase
Amphenol 122372 TNC Male Rg 400
Quality product.
Verified Purchase
Amphenol 122372 TNC Male Rg 400
Highly recommended! Best for RG400!
Verified Purchase
Amphenol 122372 TNC Male Rg 400
Verified Purchase
Amphenol 122372 TNC Male Rg 400
Good
Verified Purchase
Amphenol 122372 TNC Male Rg 400
It is what it is: good quality TNC from Amp. The price from Spruce is as good or better than from any other supplier Ive found. Ships quick. Works as intended.
I needed a specialized coax connector for a critical application. It was 5:35PM and shipping department was closing at 6PM. I needed these parts the next morning to complete my assignment. The person who took my order walked it to shipping and I received my parts the next morning. Thank you very much!
Q&A
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Yes, the GA35 uses a TNC style connector. An alternative would be part number 11-04447.
Yes. The TA70 GPS antenna will require a TNC male connection.
Yes, a standard TNC male is required for interconnecting the WAAS GPS antenna to the Garmin GTN 650.
Take a look at Part# 11-17224. It is a female TNC straight crimp jack. If you need to splice some wires together consider looking at our Butt splices.
This is a dual crimp connector.
No, this works with RG-55, RG-142, RG-223, RG-400.
Yes, this connector is made for RG-400 coax cable and TNC.
