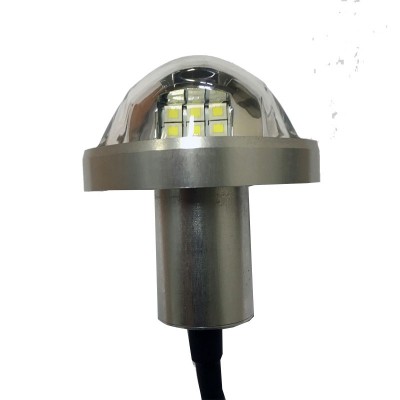

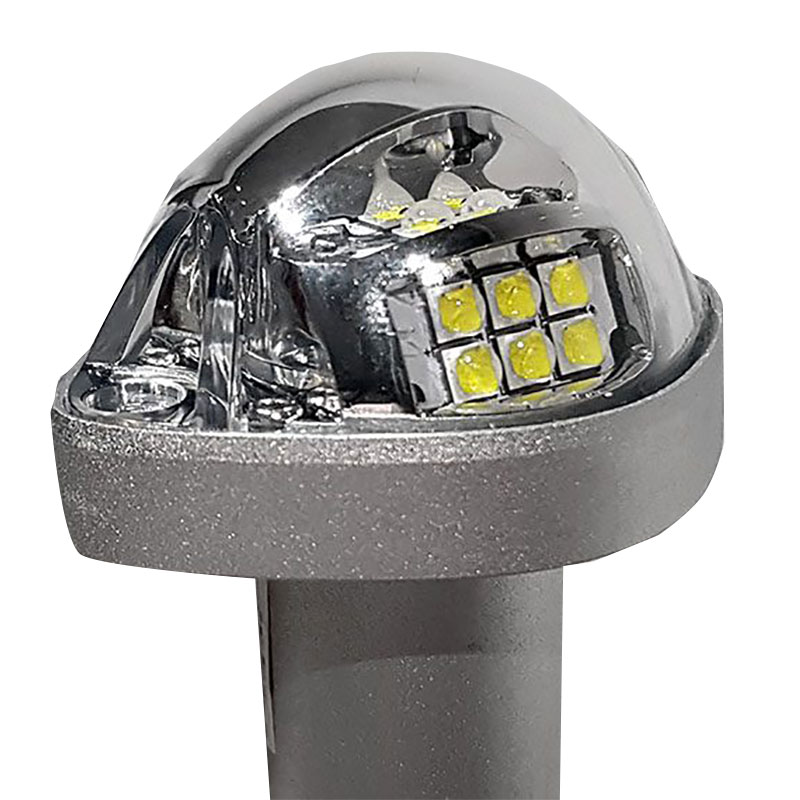

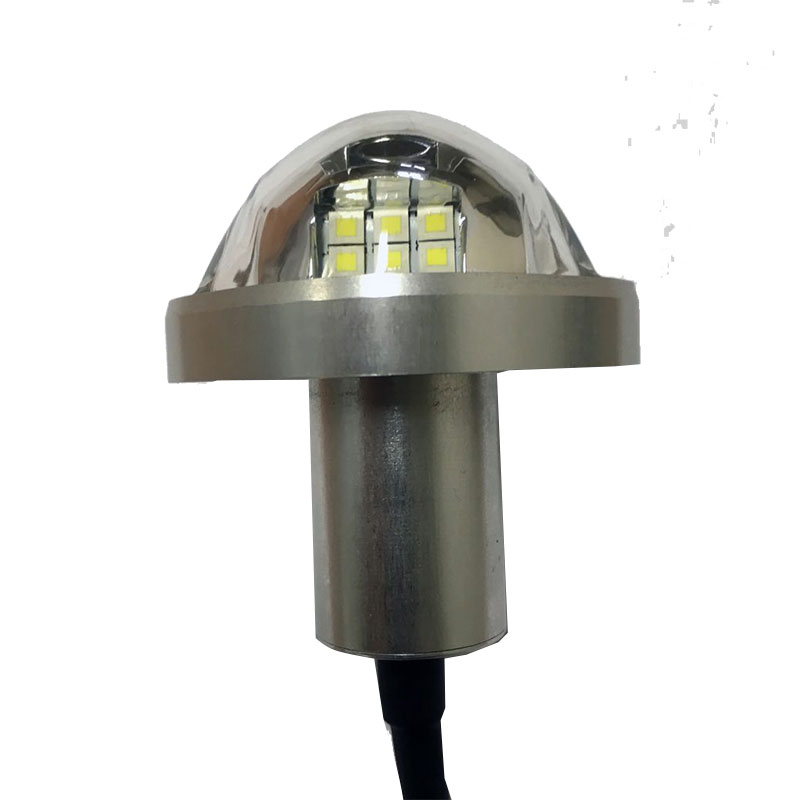

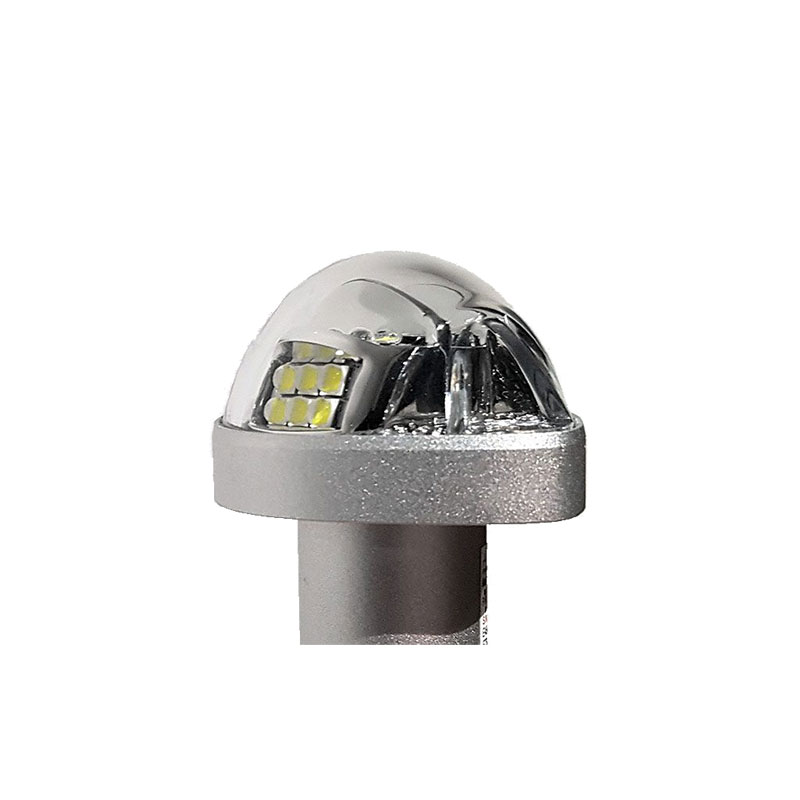

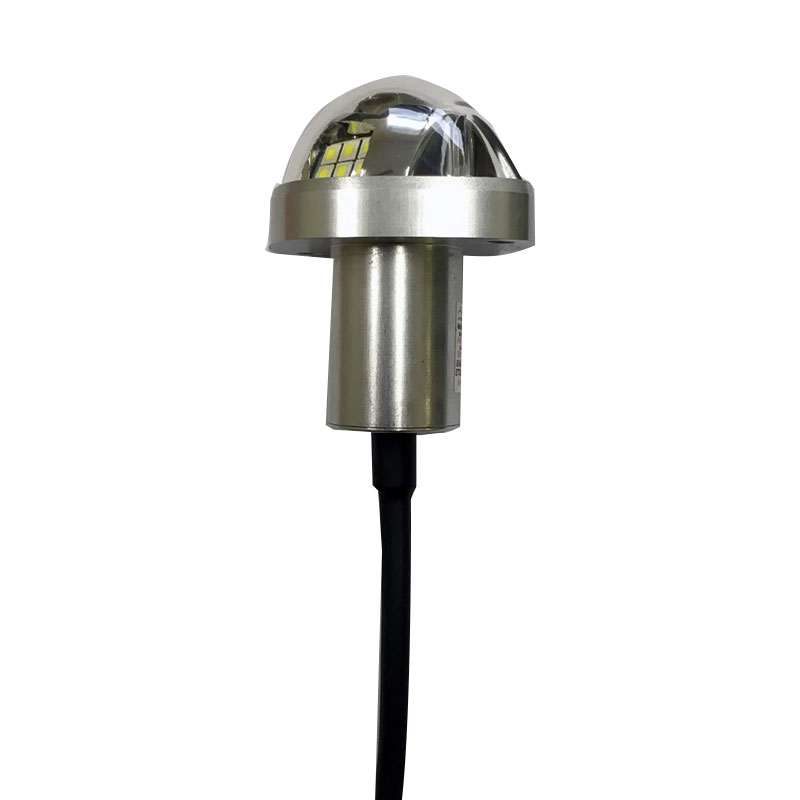

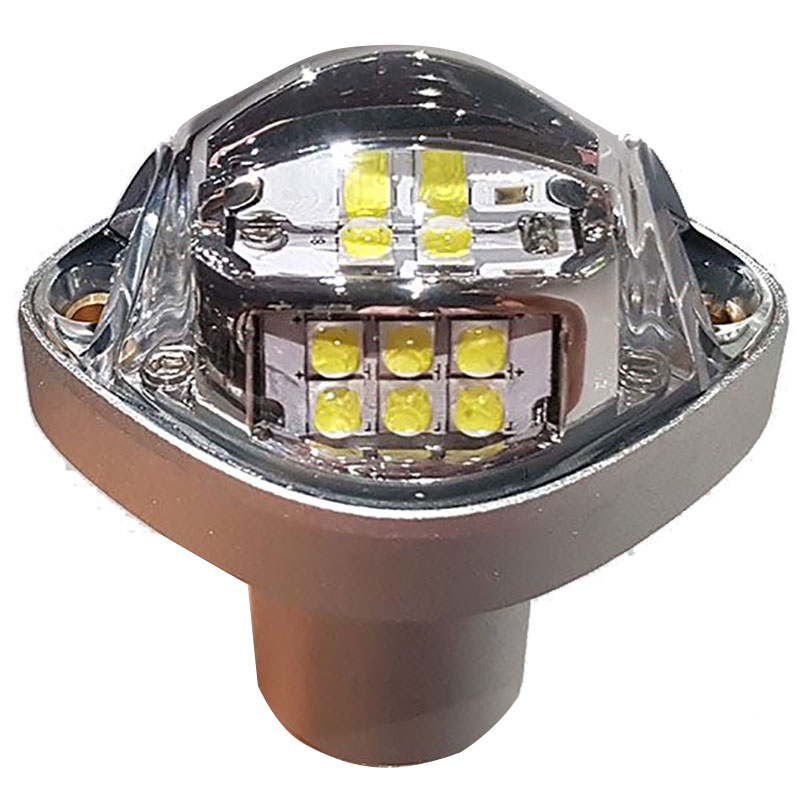

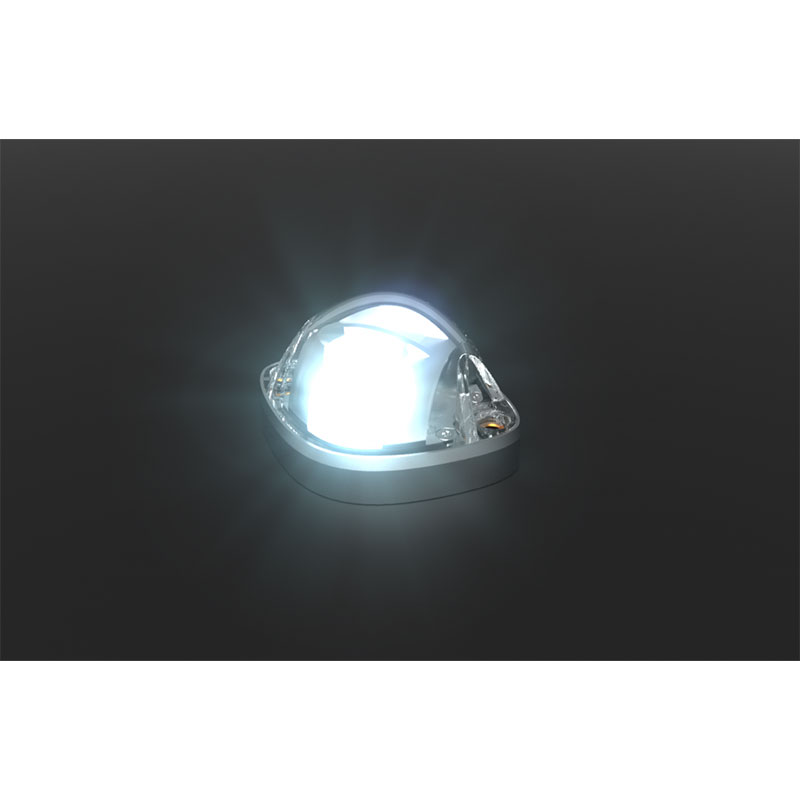

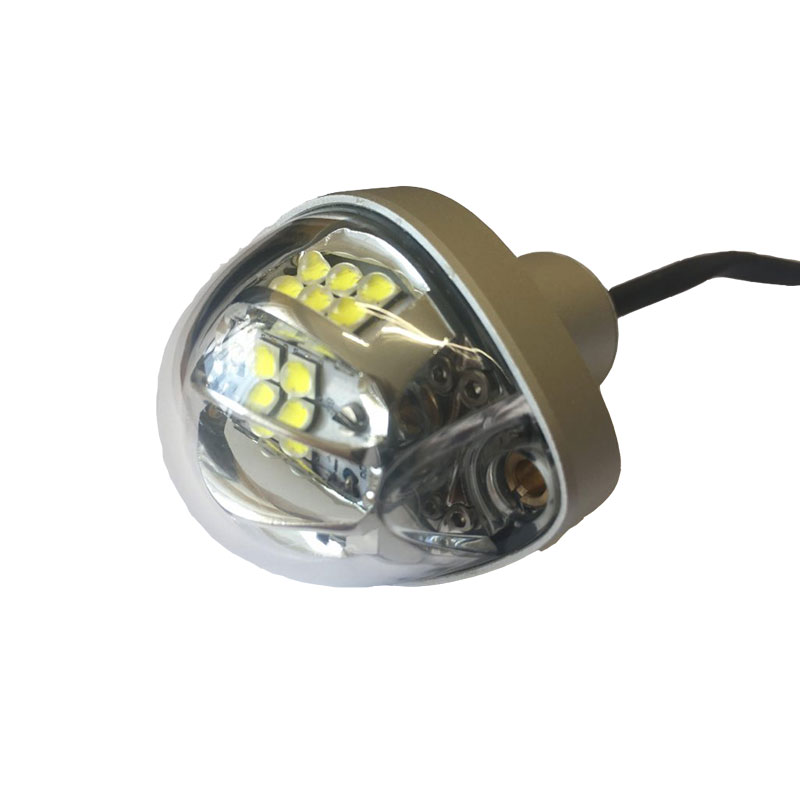

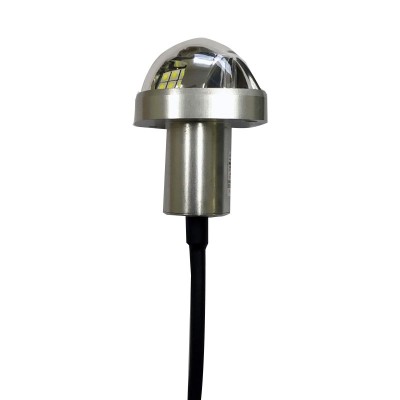

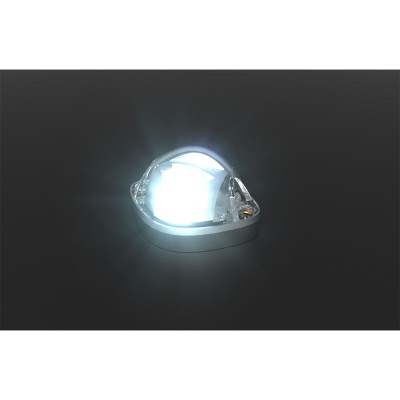

Aveo Posistrobe Titania White LED Position / Strobe Light
MFR Model# AVE-PSPSYW-T01
Overview
|
Position / Strobe LED light
The Titania Series™ PosiStrobe is a new generation white rudder position and strobe light. It fits almost all the standard rudder mounts of aircraft. An extremely lightweight, aerodynamic and low-profile design make this the light of choice for any certified aircraft requiring a rear coverage light due to wingtip light coverage zone limits. The PosiStrobe light design is the most imitated and copied light by our competitors, but there is ONLY one PosiStrobe™, don’t be fooled by competitive “clones”, we were the first and we are the only ones with our exclusive circuitry, advanced optics and reflectors, and outstanding candela performance. TSO CERTIFIED |
Features
7 High brightness LEDs for POSITION light coverage (140°)- Packed with 7 ultra high brightness CREE LEDs for POSITION mode in white color that are the industry state-of-the-art in performance and output lumens, the PosiStrobes feature a significantly lower footprint than competitor lights.
- Packed with 21 ultra high brightness CREE aviation white LEDs for STROBE mode.
- An extremely lightweight, aerodynamic and low-profile design make this the light of choice for any certified aircraft requiring a rear coverage light due to wingtip light coverage zone limits.
- All Aveo lights are waterproof, dust proof, and inert to most environmental conditions as they are all tested to categories of DO-160 exceeding the applicable requirements by far in external laboratories experienced in compliance demonstration of EASA ETSO appliances.
Specifications
- Dimensions (mm): 44.9 mm x 55.6 mm x 30 mm
- Dimensions (inches): 1.769“ x 2.19“ x 1.18“
- Weight: 0.216 lb
- Operating Voltage Range: 9 – 36 V DC
- Input Current – Position: 0.17 A @36V, 0.22 A @28V, 0.41 A @14V, 0.66 A @9V
- Input Current – Strobe: 1.6 A @36V, 1.9 A @28V, 4.2 A @14V, 4.4 A @9V
- Input Power – Position:: 6.2 W @36V, 6.2 W @28V, 5.8 W @14V, 5.9 W @9V
- Input Power – Strobe:: 58 W @36V, 53 W @28V, 59 W @14V, 40 W @9V
- Input Power - Position / Nav - red: 7 W @36V, 7 W @28V, 6.7 W @14V, 7.2 W @9V
- Input Power - Strobe: 39.6 W @36V, 39.2 W @28V, 32.2 W @14V, 26.1 W @9V
- Repetition Rate of Strobe: 48 cycles per minute
- Recommended size of mounting screw: M3
- Ambient Temperature: from -55°C to +85°C from -55°F to +185°F
- Overheat Protection: YES (+85°C)
- Reverse polarity protected: YES
- Transient Voltage: 60V at 2sec max, both polarities
- Under-Voltage Protection (lockout): YES (9V)
- Over-Voltage Protection (lockout): YES (36V)
- Waterproof, Dust-proof, Shock-proof, Vibration-proof: YES
Reviews
Great little unit - easy to install
Verified Purchase
Aveo Posistrobe Titania White LED Position / Strobe Light
Q&A
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
The dims are different and this is intended to be used as a tail light, the A625 is more of a beacon.
