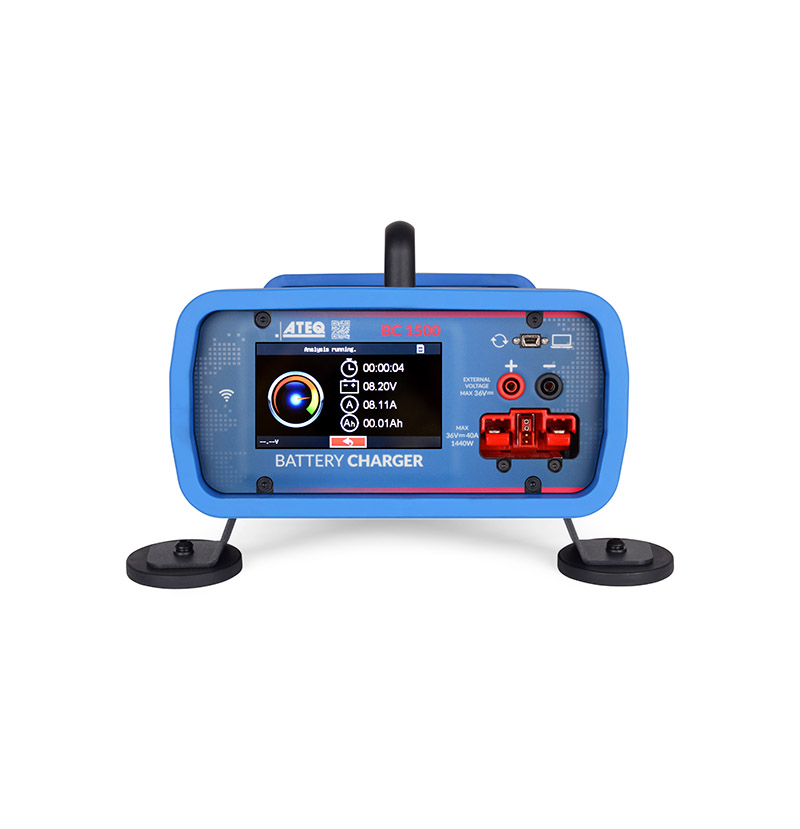

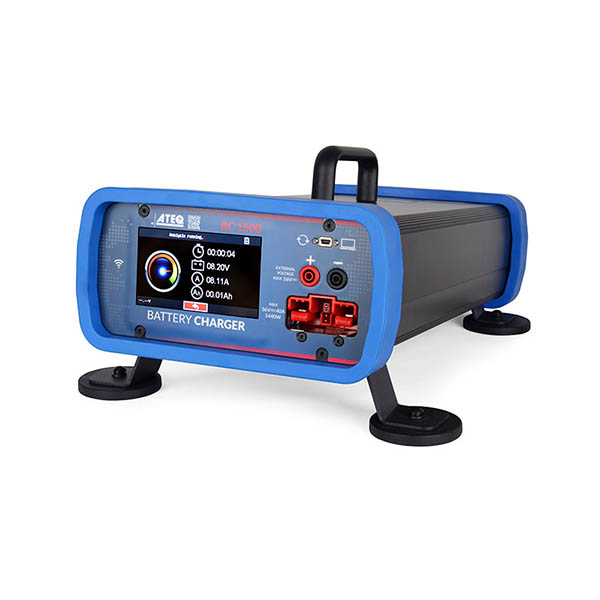

BC 1500 Battery Charger for Aviation Lead Acid Batteries

0 Reviews 0 Answered Questions
$8106.00/Each
Quantity
Add to Wishlist
Part# 11-20525
MFR Model# BC-1500

Overview

The BC 1500 is an all-in-one diagnostic charger, combined with a robust design. It fits all charger needs in a workshop. The icon based interface allows any technician to begin as an expert. No training required. The device is fully automatic plug & play ; no set up required.

Features

  • ANODIZED ALUMINUM BODY - Guaranteed longevity
  • 4,3’’ LCD, Touch screen, color display
  • Connectors for update & accessories
  • Charging cable connector
  • Metal handle
  • Power socket
  • Polymer protective end covers
  • *Wi-Fi connection

Specifications

User interface: 4,3’’ LCD Touch screen Color display
Icons based with no text messages
Buzzer
27 languages available
Housing: Aluminum body with metal handle
Anti slip, shock proof rubber sides
Dimensions: 230 x 120 x 470mm
Weight: 6.6Kg (without cables)
Temperature: Usage: -10 to +40°C - storage: -30 to +60°C
Humidity: 20 to 80 % non condensing
Noise level: 65dB at 40A
Features: Software updates, printer, 2D scanner
Output: Range of 1 to 36V
Limited current: 55A
Easy plug connector
Max voltage: 36 VDC
Max current: 40 Adc
Max power: 1440W
Input: 90 – 264 VAC 47/63 Hz (for worldwide networks)
Less than 15A (110V) / 8A (230V)
Simple connection with IEC60320C19
Power factor 97 %
P.F.C. (Power factor corrector)

Benefits

  • Wide range of batteries available from our embedded database.
  • BC 1500, compliant with all battery manufacturer.
  • Safety: internal features and security components protect the user and the device against problems (reverse polarity, voltage and current monitoring, ...).
  • Traceability: the user can easily manage the battery charger. All batteries are separately identified for their entire life time.

Scope of Delivery

  • BC Device (Ref. 00407)
  • Quickstart (Ref. D2-0265)
  • External voltage measurement cables (Ref. EG-0400)
  • Cable for update - Mini USB (Ref. EG-0701)
  • Power cable US Type (Ref. T1-0158)
  • Power cable EU Type (Ref. T1-0163)
  • Power cable UK Type (Ref. T1-0448)
  • Universal DC output cable - Grid GPE80 to Tyco 647845-4
  • -1.2m (4.0ft) (Ref. 10650001)
  • Battery adaptor cable with 5/16 (7.9mm) ring terminal connectors
  • -0.3m (1.0ft) (Ref. 10660000)

Optional Accessories

  • Battery adaptor cable with Rebling 7017-2 connector
  • -0.3m (1.0ft) (Ref. 10660001)
  • Battery adaptor cable with quick connector (Ref. EC-0661)
  • -0.3m (1.0ft) (Ref. 10660002)
  • Thermal printer, cable included (Ref. 6580101)
  • 2D Scanner, cable included (Ref. EZ-0247)
