Home / Electrical / Chargers, Battery / Battery Capacity Testers /BC-8000 Battery Charger & Capacity Tester
Main Image

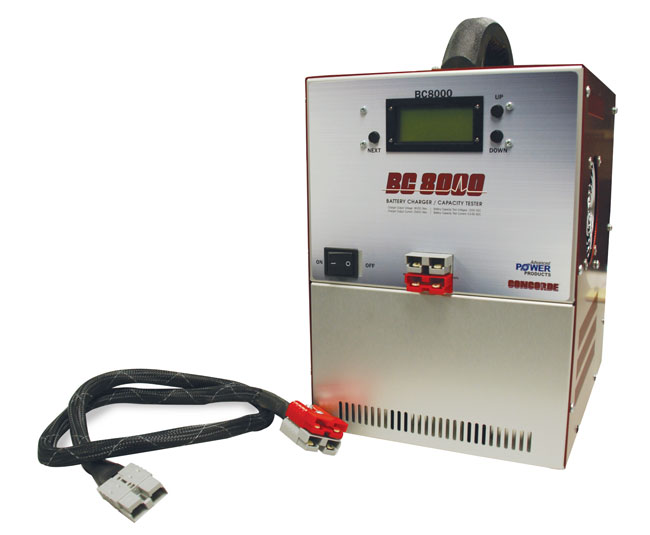

BC-8000 Battery Charger & Capacity Tester

0 Reviews 7 Answered Questions
$9173.00/Each
Quantity
Add to Wishlist
Part# 11-10484
MFR Model# BC-8000

Overview

The BC-8000 has been designed to provide the operator with a cost effective battery charger and capacity tester in one unit. The step by step digital display is easy to program in order to set it and forget it.

For use on Nickel Cadmium or Lead Acid Batteries.

Capacity Tester Features:
• Adjustable constant current load in 0.1 Ampere increments from 0.5 Ampere to 15 Ampere (+/- 1.5%)
• Adjustable constant current load in 1.0 Ampere increments from 15 Ampere to 55 Ampere (+/- 1.0%)
• USB 2.0 port for PC connection
• BC Report Utility software for hard copy printout of test results

Charger Features:
• Adjustable output from 3.0 to 36.0 Vdc
• Adjustable output amperes from 0.05 to 25 Adc
• Constant voltage (CV) or constant current (CC) charge
• Adjustable charge time from 1-999 min
• Single or two step charge routine

Common Features:
• Universal AC power input 90~264vac (47 to 64Hz)
• 10mv voltage resolution 4 line LCD display
• Over temperature protection
• Audio warning when capacity test is complete or if
the unit malfunctions
• Real time internal clock with battery backup

For use on Nickel Cadmium or Lead Acid Batteries.

Specifications

  • Length: 12"
  • Width: 9"
  • Height: 16"
  • 19 Lbs.

Documents

Reviews

Submit a Review

Q&A

Submit

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Does this unit come with the leads? Regarding Part # 11-10484

It comes with ring terminal leads and Elcon-style two-wire connector to accommodate most new battery types.

Q: What is the weight and size of this unit?

Case dimensions: 12" L x 9" W x 16" H. Weight is 19 lbs.

Q: Does the BC-8000 unit require 220 VAC input or can it be plugged into a 120 VAC outlet?

This unit will have a conventional 110V plug that has a ground pin. So it will be the 3 pin plug. For example, the same power chord you would use for your desktop computer or microwave.

This unit will have a universal AC power input of 90~264VAC (47 to 63Hz).

Q: Does the BC-8000 charger & tester come with a calibration certificate?

Yes, this is on the last page of the handbook with every unit.

Q: Is it a new unit or second hand unit?

This part # 11-10484 is new, outright.

Q: Does this BC-8000 come with 8130-3 certificate?

No, it does not. That document must be requested at checkout. (Additional Fees will apply).

Q: Can we use the BC-8000 to do Gill batteries with this unit?

Yes. That charger charges all types of batteries , they need to read the Manuel and follow the manufactures specs.
