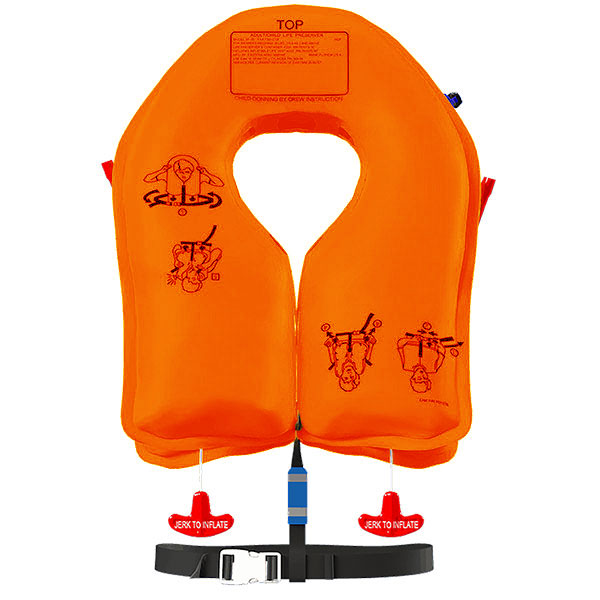

EAM Xf-35 Crew Life Vest
MFR Model# P01074-101C
Overview
| The XF-35 is the world's lightest weight twin-cell vest in the aviation market today, only 1.13 lbs. (513 grams). The XF-35 offers significant fuel savings to operators wishing to stay with the added security of a twin-cell vest. 5 year frequency of inspection standard. |
Features
- Inflatable Cell
- Inflator
- Harness
- Harness Pull Tab
- CO2 Inflation System
- Oral Inflation System
- Light
- Light Battery
Specifications
- Inflated Buoyancy: 35 lbs. (150 Newtons) minimum
- Inflated Volume: 970 cu. in. (16 liters) minimum
- Approvals: USA FAA TSO-C13f; German LBA Approval No. 40.321/33; United Kingdom CAA Approval No. AR01445
- Category of Preserver: Adult/Child Combination
- Weight of wearer: 35 lbs. (15.91kg) and above
- Inflatable Buoyancy Cells: 2 Independent Cells
- Material: Urethane Coated Nylon, Flame Retardant
- Construction: RF Heat Sealed Seams
- Inflation System:Manual CO2 Inflator and an Oral Inflation Tube in each Buoyancy Cell.
- Color: Passenger Yellow or Crew Molten Orange
- Temperature: Functional Range: -40 to 140 oF (-40 to 60 oC)
- Storage Range: 0 to 120 oF (-17.8 to 48.9 oC)
- Humidity: Functional Range: Up to 95% Relative Humidity; Storage Range: Up to 70% Relative Humidity
- Altitude: -2000 to 45,000 feet above sea level
- CO2 Gas Charge: 2 x 0.035 lbs. (2 x 16 grams)
- Survivor Locator Light: Water-activated. TSO-C85 Approved.
- Service Life: Indefinite if unit continues to pass periodic maintenance inspection.
- Frequency of Inspection: Every 60 months for P01074-1XX Assys. in Standard Polybag, Vinyl Bag, or PSU Pouch packs; Ten (10) year frequency available in special Extended Shelf Life packaging.
Q&A
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
This is part of regulation under TSO C13f 4.1.15 Color. The color of the life preserver must be an approved international orange-yellow or similar high visibility color. The color of the flight crew life preservers may be an approved red-orange or similar high visibility contrasting color.
Per Vendor: Once its open it requires re-inspection.
These are packaged in the standard polybag packaging.
No, this vest does not come with an 8130 form.
No, it does not.
