Bendix Ignition Switches

Select Model:
With Starter PositionWith Push to StartWithout Starter Position

Overview

Description
Model No.

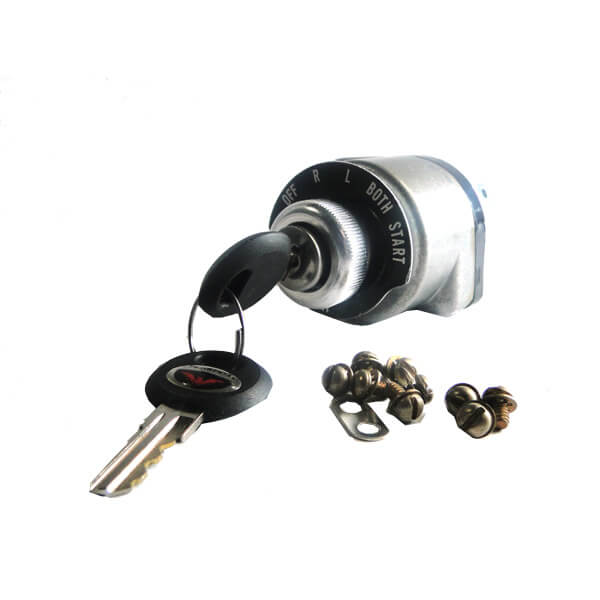

Without Starter Position. Includes two keys. Furnished with Switch Plate
10-357290-1
With Starter Position. Includes two keys. Furnished with Switch Plate
10-357200-1
With push to start feature. Includes two keys. Furnished with Switch Plate
10-357210-1

Documents

  • Frequently Purchased With
  • Customers Also Viewed

Reviews

I accidentally duplicated my order and the customer service folks were very helpful, since I had not opened the second order they refunded my purchase without a restocking fee. The replacement switch fit perfectly and works perfectly.

Cliff B Verified Purchase

TCM Switch 10-357290-1

October 3, 2024

The new switch performs as Id expect positive key position detents, key retention while the ignition is on. But...$700+ for this benefit?

Elliot H Verified Purchase

TCM Switch 10-357210-1

March 13, 2024

Good product, thank you.

Craig L Verified Purchase

TCM Switch 10-357200-1

February 2, 2024

I purchased the 10-357210-1 which does not have a start function just L, R, Both and OFF mag positions. The switch performs well as an FAA certified mag switch in a 1946 Aeronca 7AC champ. I had to build a mount plate because the switch mounts on the left side between the front and rear pilot seats and it was about 7/8 too deep to go in the space between the aircraft fabric surface and the switch mounting plate. The switch did not come with a certification form so I entered the TCM part number as an FAA approved switch in the airframe log book.

John C Verified Purchase

TCM Switch 10-357290-1

August 18, 2022

Looks great, was very easy to install. I had an older switch that was smaller, so I did have to enlarge the hole to 7/8 to accommodate this switch, but that was easily and cleanly done with a taper bit.

Levi D Verified Purchase

TCM Switch 10-357290-1

September 7, 2021

The ignition switch is a well made product and worked as it should

John M Verified Purchase

TCM Switch 10-357210-1

August 15, 2021

Excellent service as usual !

Ed C
April 8, 2019

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Is the bendix ingnition switch (model 10-357200-1) pma certified?

Yes, this switch is certified.

Q: You say the switch is certified but for what -- aircraft, engines or by aircraft part number?

The switch itself is FAA-PMA'd. There is no applicability list. That must be determined by the installer but it is FAA Approved for use in certified aircraft.

Q: Its hard to say how recent the tech data sheet is. I have one from the 80s and it is huge. I know this is smaller but would like to know the diameter and depth?

Per the installation manual: 1.068 x 1.828

Q: Is this part a substitute for the older Bendix p/n 10-126690-1?

10-126690-1 superseded to 10-357200-1

Q: How many Amps is the Bendix Start Switch PN#10-357200-1 Rated for? ... I saw the Magneto contacts were rated for 5 Amps in the documentation. Can you clarify this for me please?

It is rated to handle magneto primary voltage and/or 24 volts DC, 5 amps.

Q: Are the keys 2 sided?

These are single sided keys per the data sheet.

Q: Is their any warranty on these switches?

12 months or 500 hours, whichever happens first.

Q: On an ignition switch without a starter or prime function, can the key be removed in any position other than the off position?

The key can only be removed in the off position.
