ACS Ignition Switch Service Kit

15 Reviews 6 Answered Questions

$54.75/Each

Add to Wishlist

Part# 11-03654
MFR Model# A-3650-2

JUMP TO
Overview
Documents
Reviews
Q&A
View in Catalog

Overview

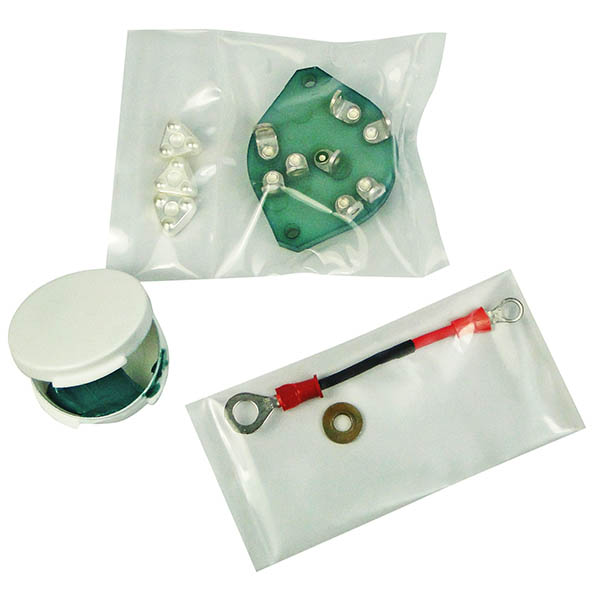

Consists of replacement internal switch contacts, lubricant, diode assembly, and terminal board as required for compliance with ACS Ignition Switch Service Bulletin SB92-01. Kit A-3650-2 contains diode assembly for starter solenoids with one or two coil contacts.

JUMPER USED WHEN LEFT MAG HAS IMPULSE
COUPLING OR IS RETARD BREAKER MAG
Installation of Ignition Switch
A)
Use SHIELDED wire on all connections and ground to
nearest structural member.
B)
Terminal 1 must have a jumper installed when LEFT MAG has IMPULSE COUPLING or is RETARD BREAKER MAG.
C)

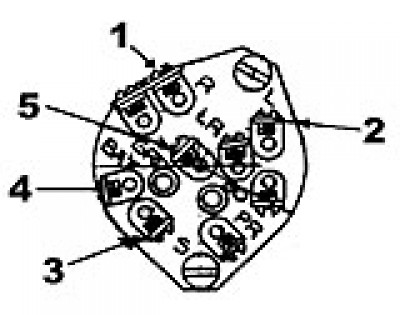

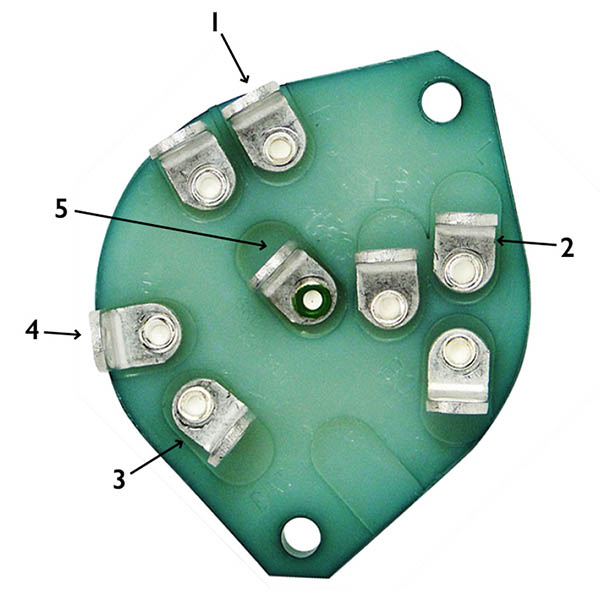

Connect wire from RIGHT MAG to terminal 1 of drawing.
Connect wire from LEFT MAG to terminal 2 of drawing.
Connect wire from STARTER SOLENOID to terminal 3 of drawing.
Connect wire from Positive terminal of power supply to terminal 4 of drawing.
Connect wire from terminal 5 of drawing to nearest structural membe

Made in USA

Documents

Service Bulletin (PDD)

Frequently Purchased With
Customers Also Viewed

Reviews

Submit a Review

Definitely have to remove the switch to service it!

Joseph J

Verified Purchase

ACS Ignition Service Kit A-3650-2

June 14, 2024

Bill P

Verified Purchase

ACS Ignition Service Kit A-3650-2

May 2, 2024

Stephen P

Verified Purchase

ACS Ignition Service Kit A-3650-2

December 26, 2023

restored an inop part...

D A

Verified Purchase

ACS Ignition Service Kit A-3650-2

December 13, 2023

diode part of kit way overpriced !

D A

Verified Purchase

ACS Ignition Service Kit A-3650-2

September 22, 2023

Would use again.

Andrew D

Verified Purchase

ACS Ignition Service Kit A-3650-2

May 23, 2023

Fixed my switch and now works like new

Bob C

Verified Purchase

ACS Ignition Service Kit A-3650-2

April 2, 2023

Great rebuild kit ! would’ve been nice if they gave new screws

Concord A

Verified Purchase

ACS Ignition Service Kit A-3650-2

February 19, 2023

EXCELLENT repair kit. Everything we needed to repair our ignition switch, including the grease, at a very reasonable price.

Craig F

Verified Purchase

ACS Ignition Service Kit A-3650-2

July 9, 2022

Nice option to replacing the complete switch every 2000 hours! Adding the grease is a nice upgrade.

Kell A

Verified Purchase

ACS Ignition Service Kit A-3650-2

April 20, 2022

Just installed the switch parts to repair a 40 year old Gerdes A-510-10 switch. Perfect fit and a 10 minute install in the old switch housing. Now I have reliable magneto grounding again. Have two #6 star lock washers for the mounting screws handy as mine broke when removing the old switch base.

Stanley Z

Verified Purchase

ACS Ignition Service Kit A-3650-2

December 4, 2021

Worked perfectly.

Goldenaire L

Verified Purchase

ACS Ignition Service Kit A-3650-2

June 30, 2021

ACS REPAIR KIT EXCELLENT. Did not realize that the diode came with the kit and ordered a separate one. Received the back order items a short time later. All items as ordered. Thank you.

Henry S

April 3, 2021

The kit received had all that was required to complete the job, worked as advertised. Service from Aircraft Spruce was great!

Jim M

August 26, 2020

Everything you need is included. Reuse the 3 springs under the triangular contacts. Rebuilt switch will be as good as new and this is an inexpensive way to avoid buying a new switch, if you think you need one.

Bruce H

November 19, 2019

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What do I order to prevent the ignition key to be removed before reaching the OFF position? I have a Cessna 152 with the optional 125 horsepower lycoming engine with slick mags.

The ACS ignition switches will not release the key unless in the OFF position.

Q: Is this ACS Ignition Switch service kit ok for use on certified aircraft?

Per our tech: As long as it is being installed on an ACS Products ignition switch, it will be fine.

Q: Can this kit be used to repair Bendix switches?

The A-3650-2 service kit was designed for the ACS Products ignition switches.

Q: Does the jumper for terminal 1 come with this ACS Ignition Switch Service kit?

No, the jumper for terminal 1 does not come with this kit.

Q: Does this ACS ignition switch service kit fit on a A-510-5 with no starter? If yes, can it add starter position to A-510-5?

Per Vendor: No for both questions. The A-3650-2 (11-03654) is for the A-510-2 (11-03170) only and will not give them the start function. There are other internal parts that are different as well.

Q: Is this the same physical size / dimensions as the TCM (Bendix) switch?

This (part # 11-03654) is a service kit not a switch. The ACS and TCM switches are similar in size but not the exact same size and dims.
