Cessna Firewall Mounted Battery Box

$977.00/Each
Quantity
Add to Wishlist
Part# 05-04766
MFR Model# 8008-01

Overview

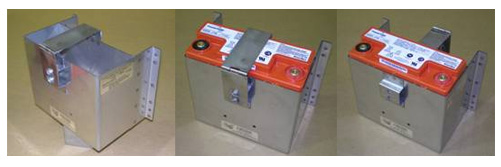

Firewall battery box that allows the SBS-J16 battery to be used for Cessna Models 170, 170A, 170B, 180 thru 180K, 185 thru 185E, A185E, A185F STC Approved: SA02333AK-D.
Note: Does not include battery.

Download the Installation Document (PDF)
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Love the box Installed on my 172L w/337 Great fit, depth an inch less than factory box so mag clearance is better Removal of old rivets hidden behind box is a breeze with a sharp wood chisel, backside firewall access for top is easy, used one old rivet hole & plugged other holes with rivets used type A #10 on bottom two Would buy & install again Chris

Chris C
February 7, 2016

Well made battery box. But expensive! Hence only three stars. However, it was the only certified box I could find for the SBS J16 battery. A non-certified box goes for 1/10th the price.

Carsten S Verified Purchase

Cessna Battery Box

February 2, 2022

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Is this battery box STC'd?

Yes, this has an STC for the Cessna 170, 170A, 170B, 180 - 180K, 185 - 185E.

Q: What are the dimensions of the CESSNA FIREWALL MOUNTED BATTERY BOX?

5" Length | 7-1/4" Width | 6" Height | 8-1/2" Flange Width

Q: Which Odyssey battery is used with this battery box, the SBS J-16 or PC 680?

This is designed to be used with the Odyssey SBS J-16 battery.

Q: The eligible aircraft now include the following: 150K, A150L, F150K, FA150K, 170,A,B, 172B, C, D, E, F, G, H, I, K, L, M, N, P, F172D, E, F, G, H, K, L, M, N, P, R172E, F, G, H, K, L, M, N, 175, A, B, C, 180, A, B, C, D, E, F, G, H, J, K, 182,A, B, C, D, E, F, G, H, 185, A, B, C, D, E, A185E, A185F

Ok, thank you for the information. We will add it to our question and answer list.
