Overview

Features

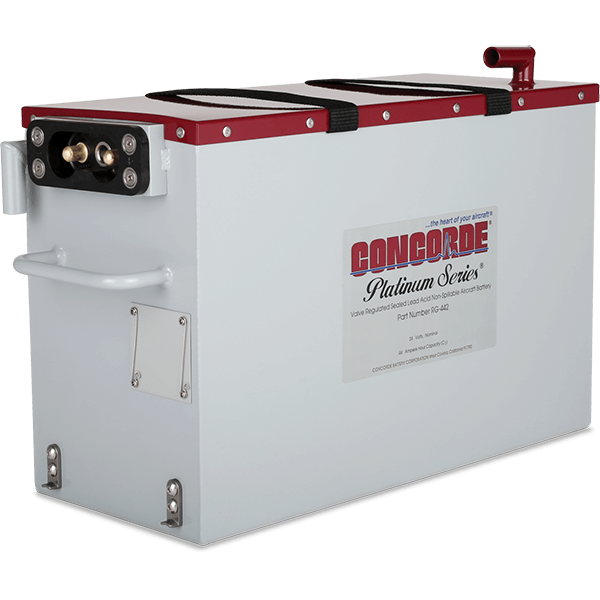

• The RG-442 is a sealed, valve regulated lead acid starting aircraft battery with TS-C4 Temperature Sensor approved to Parts Manufacturing; Approved to replace the original nickel cadmium battery. The RG-442 is form, fit, and functionally interchangeable with the existing battery without onboard modification.
• As a direct lead acid replacement for the nickel cadmium battery, the Concorde RG-442 valve regulated battery greatly improves battery performance over nickel cadmium types in cold weather climates.
• The Concorde RG-442 battery will save maintenance costs. The first maintenance (capacity) check is performed at 12 months or 600 hours, and subsequent checks at 4 months or 200 hours, until the battery reaches the minimum capacity of 85%. Once the battery’s airworthiness performance service time is established, the Concorde replacement battery can be operated for that total time free of maintenance checks.

Specifications

• Primary Aircraft Purpose: Turbine Starting Aircraft Battery
• Voltage: 24v
• Rated Capacity C1 = 1 hr. rate in ampere hours: 44.00
• Max Weight: 86.00 lb / 39.0 kg

Documents

• FAA-PMA Installation Eligibility List
• Limited Warranty
• Warranty Card
• RG Series Aircraft Battery Owner/Operator Manual
• Storage and Boost Charge Recommendations
• Valve Regulated (RG® Series) Lead Acid SDS
• Concorde Battery AS9100 Certificate of Registration
• Warranty Form
