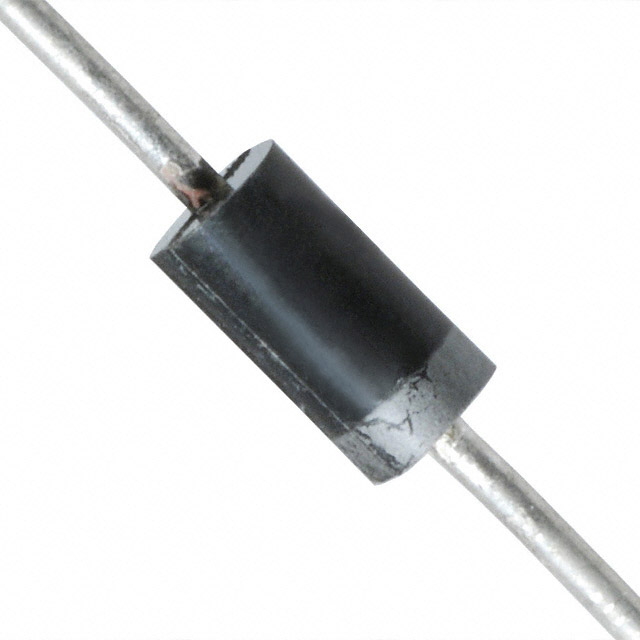

Diode 1N4007-TP Standard 1000V 1A Through Do-41

$0.14/Piece
Quantity
Add to Wishlist
Part# 11-17272
MFR Model# 1N4007-TP

Overview

Digikey 1N4007-TP Diode Standard 1000V 1A Through Do-41

Specifications

Category Discrete Semiconductor Products
Diodes
Rectifiers
Single Diodes
Packaging Tape & Reel (TR)
Cut Tape (CT)
Part Status Active
Technology Standard
Voltage - DC Reverse (Vr) (Max) 1000 V
Current - Average Rectified (Io) 1A
Voltage - Forward (Vf) (Max) @ If 1.1 V @ 1 A
Speed Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr) 2 µs
Current - Reverse Leakage @ Vr 5 µA @ 1000 V
Capacitance @ Vr, F 15pF @ 4V, 1MHz
Mounting Type Through Hole
Package / Case DO-204AL, DO-41, Axial
Supplier Device Package DO-41
Operating Temperature - Junction -55°C ~ 150°C
Base Product Number 1N4007
