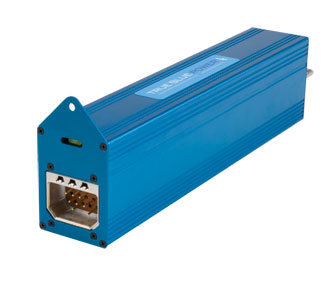

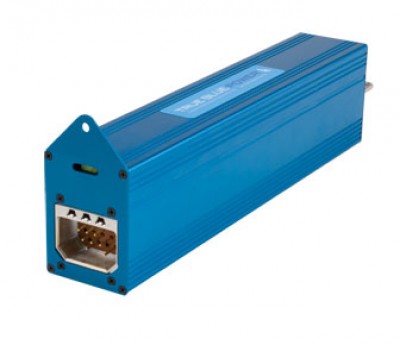

True Blue Power Emergency Power Supply MD835

0 Reviews 0 Answered Questions
Select Model:
MD835-1 - 28V OutputMD835-5 - 28V/5V Aux Output
Quantity
Add to Wishlist

Overview

An industry first — Mid-Continent Instruments & Avionics brings you the first emergency power supply featuring Lithium Nanophosphate™ technology. The MD800 Series weighs merely 4.7 pounds – 8 pounds less than the competition. It charges faster, costs less and has an improved ten-year life expectancy. Did we mention it uses the same mating connector and install rack as existing power supplies? Never underestimate the power of innovation. The MD835-5 adds an integrated adjustable 5-volt output for special lighting requirements.

Download the brochure (PDF)

Features

  • In the event of aircraft power failure, the MD800 series automatically supplies 24.5 VDC power for critical or standby equipment
  • 4.5 Amp-hour battery with Nanophosphate (R) lithium-ion cell chemistry
  • Lightweight 4.7 lbs. – 8 lbs. less than legacy lead acid designs
  • Input Voltage: 24–32 VDC
  • MD835 model available in 2011 with adjustable 5 VDC output for emergency lighting
  • Direct replacement for PS-835/PS-855 or forward-fit installations
  • Minimal scheduled maintenance required: 2-year capacity check, 10-year replacement life
  • Dimensions (approx.): 3.1”H x 12.6”L x 2.3”W Mounts in standard ¼ ATR Rack
  • Maintains full charge by recharging during normal flight operations
  • Remote mounted self-test switch required
  • FAA TSO C179a certified
  • Part 23 AML STC qualified
  • Qualified to RTCA/DO-160F and RTCA/DO-311
  • Designed and built in Wichita, Kansas, USA
  • Two year limited warranty

Specifications

  • Input: 24–32 VDC, 5.0 Amps max.
  • Output: 24.5 VDC nominal, 20 Amps max.
  • Protection: Field Replaceable Fuse
  • Battery Capacity: 4.5 Amp-hours nominal
  • Lighting Output (MD855 only): 0–5 VDC adjustable, 5 Amps max.
  • Certification: FAA TSO C179a
  • Qualified to RTCA/DO-160F and RTCA/DO-311
  • Connector: DPBX-13-34P-0101
  • Color: Case: Black
  • Weight: 4.7 lbs.
  • Scheduled Maintenance: 2 years
  • Life Expectancy: 10 years
