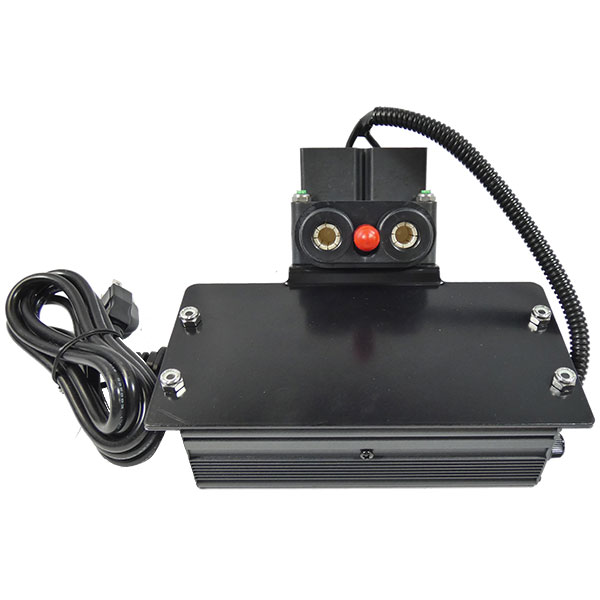

Gill GC-024E Charger Assembly 110V

$1876.00/Each
Quantity
Add to Wishlist
Part# 11-13011
MFR Model# 60118

Overview

IMPORTANT: These chargers will only function when connected to 110-120V input. Do not connect them to 220-240V or you may damage the charger.

This light weight GC-024E charger is designed for larger batteries with the Elcon connector.
    Elcon Assembly for Quick Set-Up
    Light Weight / High Strength Aluminum Case
    Full Automatic: 3 Stage Charger can be left on the Battery for long periods
    Charge Status LEDs: Power On, Charging and Fully Charged
    Circuit Protection: Reverse Polarity and Short Circuit Protected (Fused)
    UL and CE Approved
    Power Cord Length: 6 Feet
    Charge Cord Connected to Elcon Assembly
    Charge Control: Constant potential then reverts to a float standby
    Supported with a 2 Year Warranty

    Input: 110-120 VAC
    Output Equalizer Voltage: 28.8 VDC +/-0.2V
    Output Float Voltage: 26.8 VDC +/-0.2V
    Dimensions: 7.2"W X 3.1"H X 7.8"D
    Weight: 2.6 pounds

Reviews

I give it a 5 star for ease of use. it is a simple plug and play. Installed a new Gill G6381E battery and plugged in charger, it was charged and ready to go in right at 2 hours.

Rick V
January 10, 2019
