Leading Edge Landing Light Kit 14V

$271.95/Each
Quantity
Add to Wishlist
Part# 11-08000

Overview

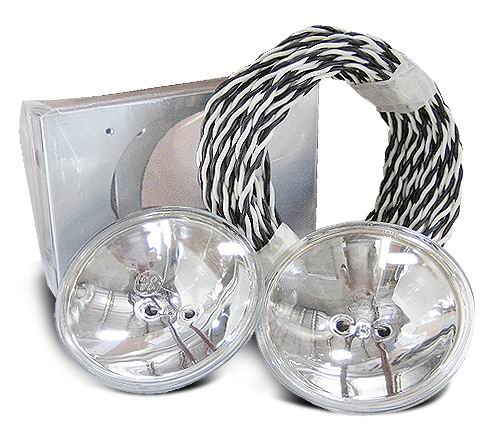

Kit consists of two GE #4509 12V, 100 watt sealed beam lamps, brackets for installation, switch, switch plate, 60 ft. of 2-conductor hookup wire and instructions. Size: 4-1/2"H x 5-1/4"W x 2-1/4"D with bulbs installed.

Documents

  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Excellent Kit but no time to install yet. Thank you!

Gordon W Verified Purchase

Leading Edge Lndng Lt Kit 14V

February 16, 2024

aircraft landing lights 240 watts 13 volts.

Owais F
October 22, 2014

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Are there installation instructions available for this leading edge landing light kit?

Yes, we have posted the install instructions as a PDF file in the "Documents" tab of the web page.

Q: Does this leading edge landing light kit come with STC or FAA Approval paperwork? Also. is this kit for a fabric wing or metal wing?

This kit is for experimental / homebuilt aircraft only. No FAA approval. The builder will need to fabricate the area in the wing to install this kit, and would need to determine if it can be used for their application, fabric or metal.

Q: I'm concerned about the amp draw. I'm putting the AeroVee on my Sonex and don't have much current to spare. Do you know how much this kit draws?

Per our tech: the best info we have is this kit comes with qty 2 GE-4509 bulbs, and each bulb is rated to draw 7.69 amps.

Q: What gauge wire is included in this leading edge landing light kit?

Black and white wrapped 18 gauge wire.

Q: Is this kit for two lights - one on each wing with a single bulb in each? Or is it for a single wing landing light with two bulbs in the housing?

It is for a single bulb in each wing.

Q: What is the light diameter please?

This comes with par 36 lights, approx 4-1/2 inch in diam.
