Home / Electrical / Chargers, Battery / Portable /White Lightning M1435-Exp 14V Mini GPU For Experimental Aircraft
Main Image

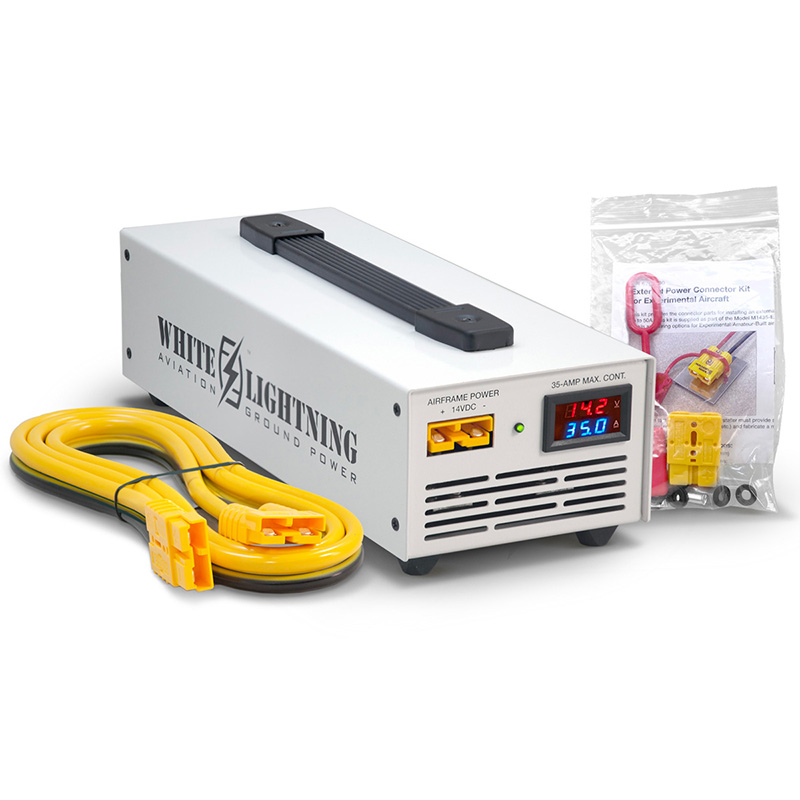

White Lightning M1435-Exp 14V Mini GPU For Experimental Aircraft

0 Reviews 0 Answered Questions
$813.00/Each
Quantity
Add to Wishlist
Part# 11-18939
MFR Model# M1435-EXP

Overview

Clean, stable, airframe power specifically for the needs of the E/A-B aircraft. Output fixed at 14.25VDC, up to 35A maximum continuous power. Ideal for cockpit database and EFIS updates, flight planning, powered preflight, procedures training, and general maintenance. Includes an Airframe Interface Kit to permanently wire a quick-connect polarized receptacle to the aircraft’s main electrical bus. Detachable, replaceable 6’ output cable included. Fully protected operation with automatic recovery.

Features

  • Compact, lightweight, rugged design with collapsing carry handle
  • Color-coded, polarized output connectors prevent voltage mismatch
  • High-efficiency switching-mode power technology
  • Digital voltmeter/ammeter and operational status LED
  • Forced air cooling for long term reliability
  • Programmable timer with safety auto-shutoff
  • USB 5V accessory convenience outlet

Specifications

  • Universal Input: 90-240 VAC, 50-60 Hz, 6A @ 115 VAC
  • Output: 14.25 VDC up to 35A maximum continuous
  • Duty Cycle: Continuous, airframe power only, not for engine start
  • Protection: Short circuit, polarity, over temp, over current, auto-reset
  • Output Cable: Detachable 8-AWG 6 ft with SB-50 plugs
  • Unit Dimensions: 4.25” H x 5.32” W x 13.3” L
  • Unit Weight: 8 lbs
