The True Blue Power AC outlets offer pilots, passengers and crew convenient access to accessory power. The North American, three-prong outlet, and the Universal outlet are rated up to 15 amps of power each, and can be easily mounted in the cabin, cockpit and galley. |

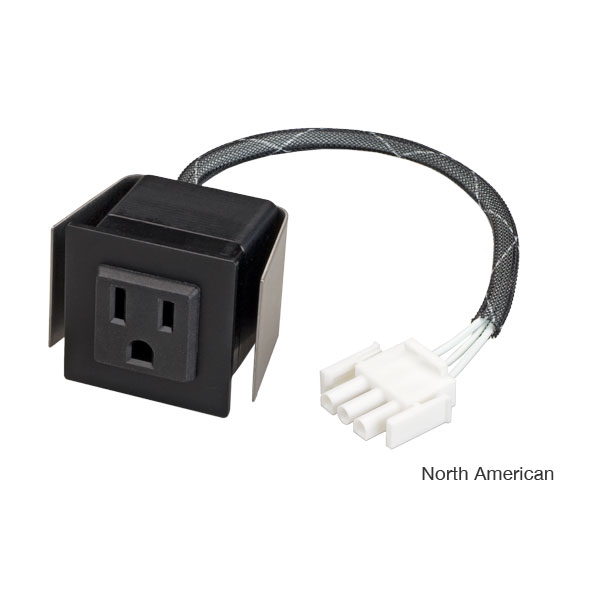

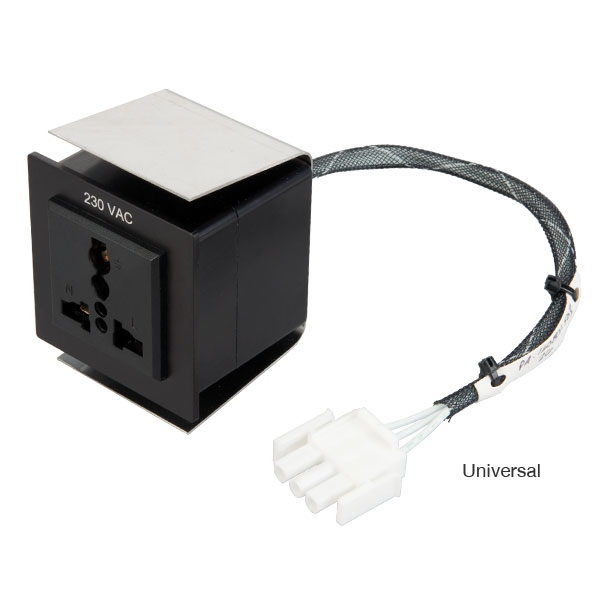

North American | Universal | |
---|---|---|
Part Number | 9018708-1 | 9018708-2 |
Input Voltage | 115 VAC at 60 Hz | 115 VAC at 60 Hz230 VAC at 50 Hz |
Output Current | 15 amps (rated) | 15 amps (rated) |
Weight | 0.30 lbs (0.14 kg) | 0.49 lbs (0.22 kg) |
Dimensions | 1.75" W x 1.75" H x 1.70" D | 2.30" W x 2.30" H x 1.94" D |
Case | Aluminum | Aluminum |
Connector | Mate-N-Lok | Mate-N-Lok |
Compatible Inverters | TI250 TI500 TI1200 TI2000 | TI250 TI500 TI1200 TI1202 TI2000 |
