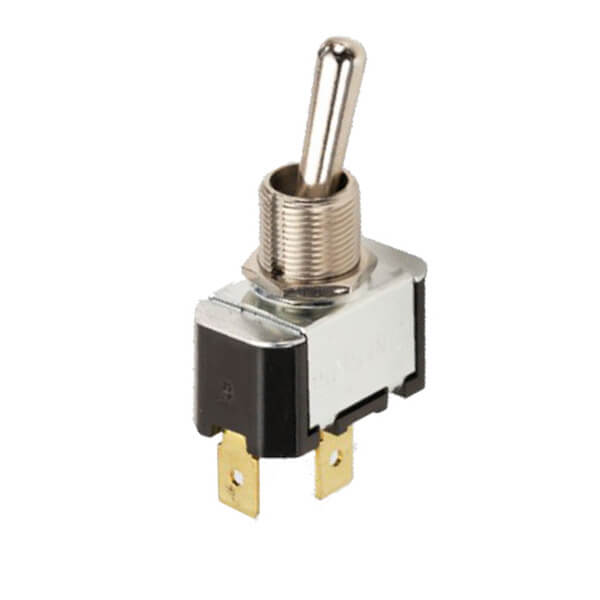

Metal Lever Toggle Switches

26 Reviews 13 Answered Questions
Select Model:
Single PoleDouble Pole
Select Operation:
OFF-ONOFF-(ON)ON-ONON-OFF-ON(ON)-OFF-(ON)
Quantity
Add to Wishlist

Overview

  • .25" TAB TERMINAL
  • 21 AMP at 12VDC
  • 9 AMP at 24VDC
  • 15 AMP at 125VAC
  • 1/2" panel hole size.


SINGLE POLE--12 VOLT 21 AMPS--HEAVY DUTY

HAS LEVER O' RING SEAL--SILVER CONTACTS
.687 INCH LEVER LENGTH--.500 INCH MOUNTING HOLE
.250 INCH TAB TERMINALS

DOUBLE POLE--12 VOLT 21 AMPS--HEAVY DUTY

HAS LEVER O' RING SEAL--SILVER CONTACTS
.687 INCH LEVER LENGTH--.500 INCH MOUNTING HOLE
.250 INCH TAB TERMINALS

Note: ( ) Refers to Momentary

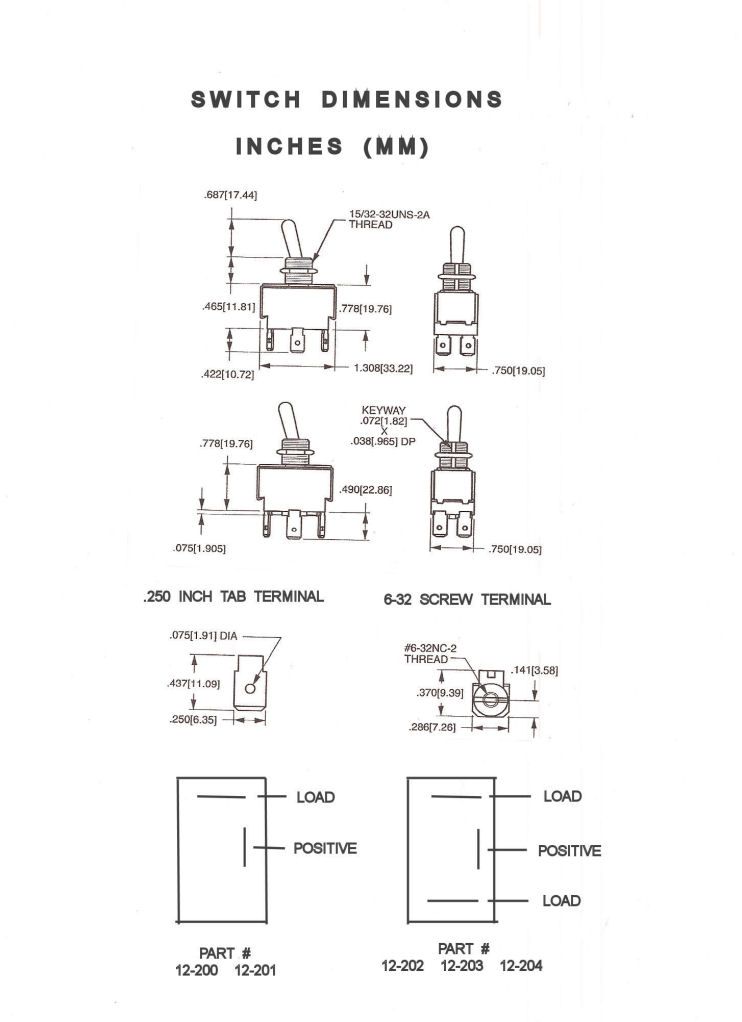

Dimensions

  • Accessories
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Submit a Review

Made from a very high quality material and when working the switch it makes a firm contact.

Grant R Verified Purchase

Lever Switch # 12-200
November 4, 2024

Fast delivery and just what I ordered!

David N Verified Purchase

Lever Switch # 12-100
August 23, 2024

Owen W Verified Purchase

Lever Switch # 12-100
February 11, 2024

Seems like a quality product, nice switch action and works as expected.

Wade S Verified Purchase

Lever Switch # 12-100
January 10, 2024

Excellent product and excellent service from A/C Spruce

Dwight B Verified Purchase

Lever Switch # 12-104
July 26, 2023

A good product for homebuilt aircraft.

Boyd E Verified Purchase

Lever Switch # 12-100
May 4, 2023

Functions well.

Boyd E Verified Purchase

Lever Switch # 12-200
May 4, 2023

Direct F Verified Purchase

Lever Switch # 12-200
March 21, 2023

Dwight B Verified Purchase

Lever Switch # 12-202
March 15, 2023

Dwight B Verified Purchase

Lever Switch # 12-104
March 15, 2023

Q&A

Submit

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: How wide is the double pole version of this switch?

The width of the double pole switches is approximately 3/4".

Q: What is the difference in part numbers #12-202, #12-203, and #12-204?

These are all double pole switches. The difference is in the operation. () means momentary, so 12-202 is ON-ON, 12-203 is ON-OFF-ON, and 12-204 is (ON)-OFF-(ON).

Q: Are these single throw or double throw please?

There is a drop down selection box to first select if you want single pole or double pole, the second box is where you select the model, ie OFF-ON, OFF-(ON), etc

Q: Are these metal lever toggle switches FAA approved for certified aircraft?

No, for certified please consult with your local avionics shop.

Q: What is the difference between simple and double pole?

Single pole option is a switch that controls one path. A double pole switch is a single switch that controls two paths.

Q: Does the model 12-204 switch have .25 quick terminals ?

The model 12-204 has .26 Tab Terminals.

Q: Does the () parenthesis on part number 12-101 that the switch is only ON when holding in the ON position? By releasing does it go automatically into the OFF position? The idea is to use it for a primer and avoid to turn on the primer by activating the switch accidentally.

Correct, The () means the momentary position. The 12-101 is an OFF-(ON) switch. The lever stays in the off position unless it is toggled to the opposite position, and will return to the off position once it is released.

Q: Are these switches PMAded for certified aircraft?

No, these switches do not have FAA Approval.

Q: Are the metal lever toggle switch rated for 12 VDC for single pole ON/OFF?

Yes, the toggle switch is rated for 12VDC.

Q: For the OFF-(ON) momentary switches (P/N 12-101 and 12-201), is the levers OFF (resting) position the same side side as the keyway or opposite side?

The keyway is on the same side as the momentary position.
