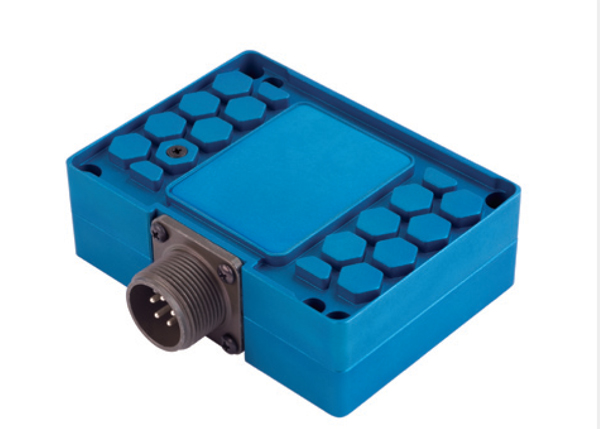

True Blue Power TC240 VDC To VDC Converter
$1578.00/Each
Part# 11-17843
MFR Model# 6430240-1
MFR Model# 6430240-1
Overview
| The model TC240 VDC/VDC Power Converter that supplies 240 watts of 5 to 18-volt power to electronic equipment, including lighting and cabin accessories. |
Features
- Lightweight — 0.7 lbs
- 240 watts output power
- 95% efficiency
- Input Voltage: 24 – 32 VDC
- Input Current: 10.0 A Nominal
- Output Voltage: 5 – 18 VDC adjustable
- Input transient, overload and short circuit protection, temperature monitoring, reverse polarity
- Rated from –67°F to +158°F (-55°C to +70°C)
- Mating Connector: MCI P/N 9018654 (included)
- FAA TSO-C71 certified and RTCA DO-160G qualified
- Designed and built in Wichita, Kansas, USA
- Two-year limited warranty
Specifications
- Input Voltage: 24-32 VDC
- Input Current: 10.0 A Nominal
- Output Voltage: 5-18 VDC adjustable
- Output Power: 240 watts
- Efficiency: 95%
- Weight: 0.70 lbs (0.32 kg)
- Altitude: 55,000 ft
- Temperature: -67°F to +158°F (-55°C to +70°C)
- Protection: Input transient, overload and short circuit protection, temperature monitoring, reverse polarity
- Mating Connector: P/N 9018654 (included)
- Case: Anodized aluminum, blue
- Certification:FAA TSO C71 certified / RTCA DO-160G qualified
